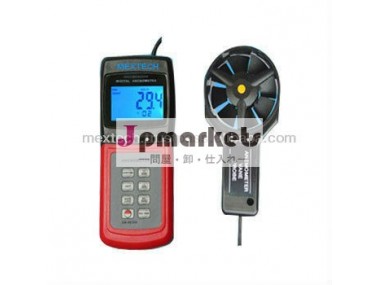

    Am-4208風速計
    商品番号: 9273892
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    製品情報

    原産地: インド 銘柄: mextech モデル番号: Am-4208

    仕様

    4 Digit LCD Display,
    Air Velocity Range m/s, Km/h, ft/min, knots
    Air flow Range CMM (m3/min), CFM (ft3 / min),
    Wave Height


    Application: Installation, debug and repair for refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.



    Specification

    Display :

    0.5”(13mm)4-digitLCD

    Measurement units Air Velocity :

    m/s, km/h, ft/min, knots

    Air Flow  :

    CMM(m3/min) CFM(ft3/min)

    Beaufort scale :

    Force

    Wave Height  :

    m

    TEMP :

    °C&°F

    Data hold :

    Max/Min Value

    Data memorized  :

    24groups

    Sampling rate :

    reading per second approx

    Sensors   :

    Conventional angled vane arms Waith low-friction ball bearing

    Temperature sensor  :



    Precision thermistor



    Automatic Power off :

    0-9minutes set by users

    Data output  :

    RS232C serial interface

    Operating temperature :

    32°F to122°F (0°C to50°C)

    Operating humidity :

    Max.80%RH

    Weight  :

    260g(0.571b)including batteries & probe

    Power Supply :

    4 x 1.5V AAA(UM 4) size battery

    Optional accessories  :

    Cable, software for rs232C





    Air Velocity

    Range

    Resolution

    Accuracy

    m/s (meters per sec)

    0.4-45.0

    0.1 m/s

    ± (2%+0.1m/s)

    km/h (kilo-meters/hour)

    1.4-162.0

    0.1 km/hr

    ±(2% +0.1km/hr)

    ft/min (feet per minute)

    80-8860

    0.1 ft/min

    ±(2% + 1ft/min)

    knots (nautical MPH)

    0.8-88.0

    0.1 knots

    ±(2% +0.1 nots)





    Air Flow







    CMM (cubic meters/min)

    0-9999

    0.001 to1

    ±(2% +1m³/min)

    CFM (cubic ft/min)

    0-9999

    0.001 to1

    ±(2% +1ft³/min)

    Beaufort Scale

    0-12

    0.1

    ±0.5

    Direction

    0-360°

    22.5°

    ±22.5°

    Wave Height

    0-14

    0.1

    ±0.1

    Air Temperature

    14 - 140° F

    0.1 °F

    0.9 ° F

    -10-60 °C

    0.1 °C

    0.5 °C
