製品情報
| 光源: | LED | 項目タイプ: | キャビネットはつく | LEDの光源: | 5630smdled | 様式を取付けなさい: | なし | スイッチタイプ: | 調光可能な | 陰のタイプ: | カバー無し | 陰の方向: | ダウン | 入力電圧(V): | 24vdc | ランプ力(W): | 21 | ランプの光束(lm): | 1800 | ランプの明るい効率(lm/w): | 85 | CRI (Ra>): | 80 | 色温度(CCT): | 6000k、 3000k | 認証: | CE, RoHS, SAA | 色を出すこと: | 暖かい白 | 原産地: | 中国(本土) | 銘柄: | oem | モデル番号: | Hrlcb- 5630dw- 60lg- 12- | 光源: | オリジナルの韓国lgsmdled | メートル当たりのledの量: | メートルあたり60個のled | 入力電圧: | 24vdc | 消費電力: | 21ワット | 基板材質: | 白いペンキが付いているアルミ | pcbの幅: | 12mm | 基板厚: | 1.0mm |
包装
| 包装: | 中立パッキング |
仕様
5730リジッドledストリップ、 オリジナル韓国lg5630smdled、 cri> 80、 24vdc、 60led/m、 1800ルーメン、 21ワット、 アルミ基板、 メーカー、 深セン

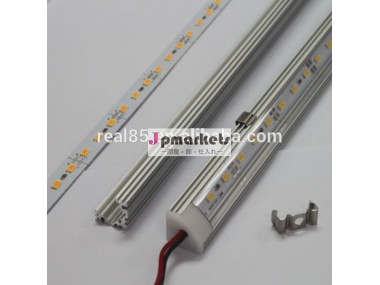

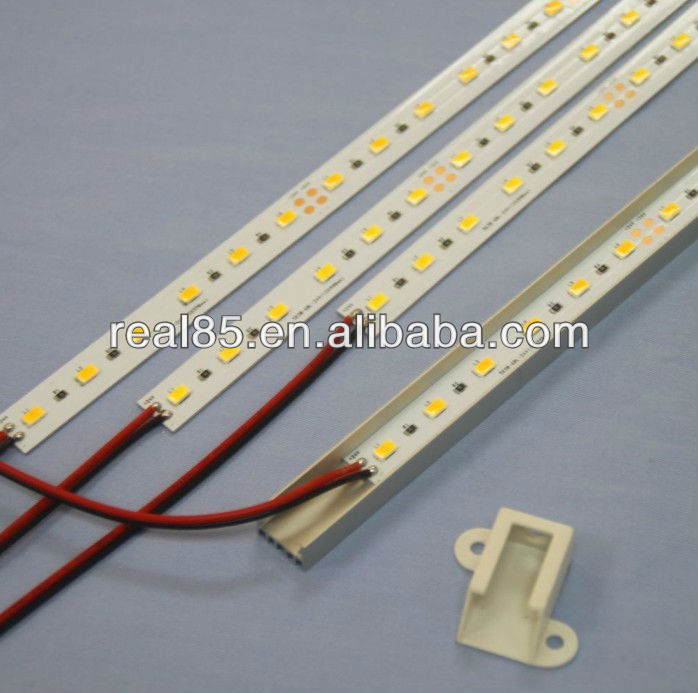

5730 rigid LED Strip,original Korean LG 5630 SMD LEDs, CRI>80, 24VDC, 60 LED/M,1800 lumen,21W, Alu PCB,manufacturer,Shenzhen
It is a good choice to work as back lighting modules.
Seoul Semi-Conductor, STW8Q14BE
LEMWS59Q80 Series 60 pcs / Meter
5730 Rigid LED Strip Product Specifications:
| Part Nos | Light Color / CRI | LED type / Q'ty | Length | Power | Lumen Output |
| HRRS-5630DW-60-12-LG 24VDC Optional | Daylight White: 5700K / Ra> 80 | Original Korean LG 5630 SMD LEDs LEMWS59Q80 Series 60 pcs / Meter | 100 CM | 21W | 1800 lumen |
| HRRS-5630NW-60-12-LG 24VDC Optional | Neutral White: 4000K / Ra> 80 | 100 CM | 21W | 1760 lumen | |
| HRRS-5630WW1-60-12-LG 24VDC Optional | Warm White 1: 3000K / Ra> 80 | 100 CM | 21W | 1650 lumen | |
| HRRS-5630WW2-60-12-LG 24VDC Optional | Warm White 2: 2700K / Ra> 80 | 100 CM | 21W | 1650 lumen |
5730 Rigid LED Strip Features:
1) Original 5630 SMD LEDs from Korea Seoul Semi-Conductor, newest STW8Q14BE with good quality light, high brightness and excellent heat-sink designs.
2) Aluminum PCB ensures the good heat-dissipation.
3) Extra heat-sinks available for maximum heat-dissipation.
4) Extra heat-sinks also provide easy installation and various mounting for meet different applications.
5730 Rigid LED Strip Applications:
1) This 5630 LED bar light is perfect to work together with all type of aluminum heat-sink to create new lighting fixtures.
It is good to work as linear cabinet lights for glass showcases for jewelry or watches.
2) This 5630 LED bar light is also a good choice to work as linear LED lighting for any application wher high light output is needed.
5730 rigid LED Strip,original Korean LG 5630 SMD LEDs, CRI>80, 24VDC, 60 LED/M,1800 lumen,21W, Alu PCB,manufacturer,Shenzhen
