製品情報
原産地: | アルメニア | 銘柄: | II-VI | モデル番号: | 18mm 19.1mm 20mm 25mm 30mm | 材料: | znse | 使用法: | レーザーの彫版機械およびレーザーの打抜き機 | 構造: | Plano-convex | 形: | 球 | 材料: | 亜鉛セレン化物 | 使用法: | 赤外線 | 構造: | Plano-convex |
包装
包装: | 1-10継ぎ合わさるプラスチックの箱(スポンジとの60*60*25mmの)ごとに、8箱fo者のカートン(スポンジとの250*200*180mm、) |
仕様
フェニックス赤外線co2高速プロトタイプレーザフォーカスレンズ; 短納期; 高品質; 競争力のある価格高出力ce

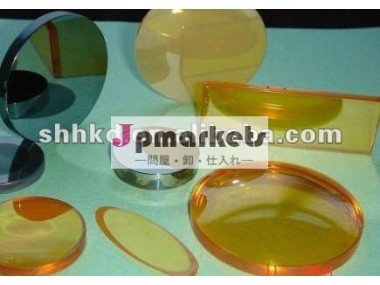

Znseのco2フェニックス赤外線レーザーfocus lens 最高の品質
Co2 laser focus lens is widely used in laser processing for example、 cutting、 drilling、 sculpture、 engraving etc and laser systems。 to meet the market・rsquo; s need、 we explored the following two series products: plano- convex and plano- concave mirror and crescent lens。
Capability
Can stand high- power density、 the film is firm、 wipe resistance is great、 transmittance of double- side antireflective coating film( 10.6・ムー、 m ) ・ge; 99%
仕様:
Focal length tolerance: & plusmn; 1%
Diameter tolerance: +0.00/0.01ミリメートル-
Thickness tolerance: & plusmn; 0.1mm
Surface accuracy: ・ラムダ;/2 at 632.8nm
Surface quality: 20- 10
Cent ration : ・#・ 3'
Clear aperture : @・@90%
Beveling : ・#・ 0.2・回; 45・度;
コーティング: ar/@10.6umar
1.仕様:
Co2 laser focus lens | |||||||
直径 | Focal length | Edge thickness | Structer | 材料 | |||
ミリメートル | インチ | ミリメートル | インチ | ミリメートル | インチ | ||
12 | 0.47 | 50.8 | 2 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) |
15 | 0.59 | 38.1 | 1.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) |
50.8 | 2 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
63.5 | 2.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
75 | 3 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
101.6 | 4 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
127 | 5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
190.5 | 7.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
18 | 0.71 | 38.1 | 1.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) |
50.8 | 2 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
63.5 | 2.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
75 | 3 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
101.6 | 4 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
127 | 5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
190.5 | 7.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
19.1 | 0.75 | 38.1 | 1.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) |
50.8 | 2 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
63.5 | 2.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
75 | 3 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
101.6 | 4 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
127 | 5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
190.5 | 7.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
20 | 0.79 | 38.1 | 1.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) |
50.8 | 2 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
63.5 | 2.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
75 | 3 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
101.6 | 4 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
127 | 5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
190.5 | 7.5 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) | ||
25.4 | 1.00 | 50.8 | 2 | 2 | 0.08 | プラノ- 凸、 メニスカス | Znseの( 米国) |
| |||||||
38.1 | 1.5 | 127 | 5 | 7.87 | 0.31 | プラノ- 凸、 メニスカス | Znseの( 米国) |
|
| 190.5 | 7.5 | 7.87 | 0.31 | プラノ- 凸、 メニスカス | Znseの( 米国) |
2.パッキング
all laser lens will be packed in ボックス avoiding to be damaged during the shipping and we will make sure the best and high- quality products for you。
3.shipping policy
一般的に、 we deliver the parcel in 3 Days after your payment online 、 but we will deliver the parcel by other express in case quoted express can・rsquo; t reach your shipping address。
4.payment policy
We accept online payment、 also included wester unio、 Money gram t/t etc。
