製品情報
| タイプ: | Other | 条件: | 新しい | 適用: | 商品 | 包装タイプ: | ボール箱 | 包装材料: | プラスチック, ペーパー | 自動等級: | 半自動 | ドライブの種類: | 電気 | 電圧: | 220v | 力: | 2.2キロワット | 原産地: | 中国(本土) | 銘柄: | ruijie | モデル番号: | Ml-750 | 重量: | 2000キロ | 次元(L*W*H): | 1260*1350*1280mm | 認証: | ce | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター |
包装
| 包装: | コンテナ |
仕様

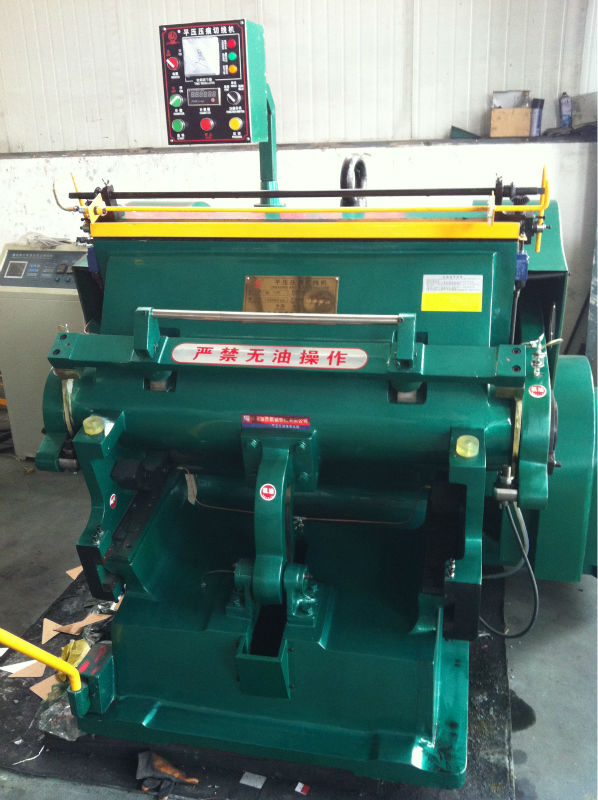

die cutting and creasing machine
SpecificationsDiecutting and creasing machine is used for creasing and cutting ordinary cardboard corrugated board plastic and leather
Usage
Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather ingeneral, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact strrctute, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
Features

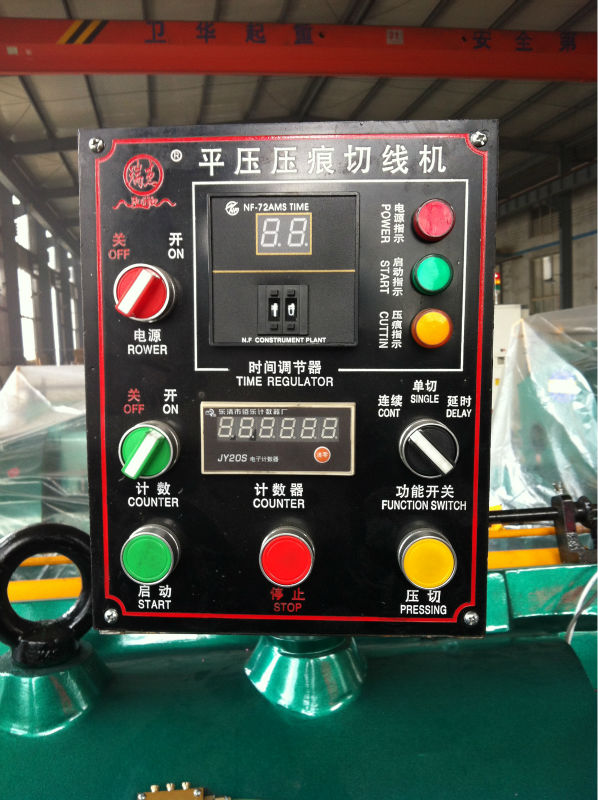

Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing. Flywheel is with big moment of force and large pressure.High strength due to one piece casting by using top-ranking material for machine body.Single plate electromagnetic clutch is sensitive and reliable. With functions of single, continuous and opening dwell operation, dwell range is adjustable.Operating position is reasonably arranged, moving-bed can be opened to its optimum.Safety system is reliable.
Main Technical Detail:Model | Inner Chase Size | Speed | Max. Rule Length | Motor Power | Machine Weight | Overall Dimensions |
ML2500 | 2500 x1500mm | 11±2 Strokes/Min | <80m | 22kw | 20000kg | 36802500x2580mm |
ML2200 | 2200 x1400mm | 11±2 Strokes/Min | <80m | 18kw | 18000kg | 36802450x2580mm |
ML2000 | 20001400mm | 13±2 Strokes/Min | <65m | 15kw | 16000kg | 22003050x2450mm |
ML1800 | 18001250mm | 13±2 Strokes/Min | <60m | 11.5kw | 14000kg | 22002850x2350mm |
ML1600 | 16001250mm | 13±2 Strokes/Min | <50m | 11kw | 12000kg | 22202650x1950mm |
ML1500 | 15001040mm | 14±2 Strokes/Min | <48m | 7.5kw | 8000kg | 20502500x1950mm |
ML1400 | 14001000mm | 15±2 Strokes/Min | <45m | 5.5kw | 6500kg | 20502400x1900mm |
ML1300 | 1300920mm | 16±2 Strokes/Min | <40m | 5.5kw | 5600kg | 20502300x1800mm |
ML1200 | 1200820mm | 20±2 Strokes/Min | <35m | 4kw-6H | 5000kg | 20501950x1750mm |
ML1100 | 1040800mm | 20±2 Strokes/Min | <32m | 4kw-6H | 4500kg | 20501820x1750mm |
PYQ203 | 930670mm | 23±3 Strokes/Min | <25m | 4kw | 3000kg | 18001550x1600mm |
ML750 | 750, , X520mm | 25±3 Strokes/Min | <15m | 2.2kw-6H | 2000kg | 13501500x1400mm |
