製品情報
条件: | 新しい | 原産地: | 中国(本土) | 銘柄: | 東方 | モデル番号: | Dfkl508-01 | タイプ: | 供給の餌機械 | 電圧: | 380-440v | 力(W): | 132kw | 次元(L*W*H): | 3200*1650*2200 | 認証: | ce | 保証: | 12ヶ月 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 穴径: | 1.5-- 18ミリメートル | モーター: | siements | 用法: | 飼料ペレット、 やバイオマス木質ペレット | 純度ペレット: | >95% | ペレットの長さ: | 0.5-4.5cm | ベアリング: | 日本からnsk | 容量: | 8-15t | 金型: | 508ミリメートルi nnner直径 | 名: | 豚の飼料ペレットマシン、 動物飼料ペレットミルマシン | 潤滑システム: | 自動 |
包装
包装: | 木製ケースやコンテナ養鶏飼料ペレット機/動物飼料ペレットマシン/飼料ペレットミル |
仕様
1.i so9001とce2.穴径: 1.5-18mm3.カットの長さ: 0.5-4.5cm4.の保証期間はお月185.15t/h容量

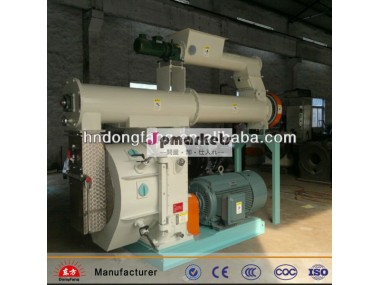

ペレット飼料機械dfkl508-01豚・動物飼料ペレットミルマシン
1.東方ペレット飼料機械dfkl508-01豚・動物飼料ペレットミルマシン導入
Ring die pellet mill is an ideal pelletizing machine for high quality feed pellets。
Before pelletizing、 grains such as corn、 wheat、 rice and soybean etc。
Need to be crushed into powder。
Also they should be mixed throughly with a mixer since other additives may be added to ensure a balanced feed formulation。
The finished feed pellets have a smooth surface and easy to digest for animals。
Therefore ring die feed pellet mill is widely adopted by livestock farm、 poultry farm、
Feed processing industry and aquaculture。
2.different requirements forペレット飼料機械dfkl508-01豚・動物飼料ペレットミルマシン
Different animals have special requirements of pellets、
We have several types of ring die pellet mills which can respectively produce livestock feed pellets、
poultry feed pellets、 aquatic feed pellets、 etc。
、。 for pig、 the pellet diameter is usually & oslash; 3.5-6.5mm。
B。 for cattle、 the pellet diameter is usually & oslash; 4.5-8mm。
C。 for chicken、 pellet diameter is usually & oslash; 3.2ミリメートル。
D。 for fish、 pellet diameter is usually& oslash; 2.0, & oslash; 2.5, & oslash; 3.0mm。
E。 for shrimps、 pellet diameter is usually & oslash; 1.0-& oslash; 3.5mm。
3. dongfangペレット飼料機械dfkl508-01豚・動物飼料ペレットミルマシン特徴
、。 adopt aerodynamic technology、 reducing the temperature in pelletizing chamber to
Around 90・度;C、 therefore the machine can work well continuously。
B。 using spheroidal graphite cast iron、 the machine body is more durable。
C。 treated by hardness quenching and milling machine、 the gears maintain high
Concentricity with the shaft、 thus ensuring a good performance and large capacity than belt driven models。
D。 with lubrication system、 you can add grease to main shaft without having to turn off the machine 。
E。 the ring die mould are cast by heat processing technology、 thus having a durable life and producing qualified pellets。
F。 equipped with an advanced compensation serpentine- spring coupling which connects the pelletizing chambert with the motor to increase safety and stability。
G。 permanent magnet device can remove impurities in the pelletizing process。
H。 multi- layer conditioners can be installed to improve quality of aquatic feed pellets。
4. unique characters ofペレット飼料機械dfkl508-01豚・動物飼料ペレットミルマシン
、。 unlike materials that are used to make wood pellets、 grains for making feed pellets can get into the pellet machine just through gravity、
thus imperative feeding device is not necessary。
B。 during the pelletizing process、 steam should be added through the steam pipe 。 t
He steam can accelerate the ripening of materials and the finished pellets are easy to digest for animals。
C。 multi- layers can be mounted to produce certain high- grade feedstuff pellets。
5. parameter for ペレット飼料機械dfkl508-01豚・動物飼料ペレットミルマシン
モデル | 出力 | 主電源 | フィーダ電力 | パワーコンディショナー | リングダイ直径 | 寸法 | ペレットのサイズ |
Ton/h | キロワット | キロワット | キロワット | ミリメートル | |||
dfkl320 | 2- 4 | 37 | 0.55 | 2.2 | ・φ; 320ミリメートル | 2100800x1300 | 1.5-18mm |
dfkl350 | 3- 5 | 55 | 0.55 | 2.2 | ・φ; 350ミリメートル | 2200900x1500 | |
dfkl420 | 6月10日 | 90 | 1.5 | 5.5 | ・φ; 420ミリメートル | 32001100x1700 | |
dfkl508 | 8月15日 | 132 | 1.5 | 5.5 | ・φ; 508ミリメートル | 32001300x1900 | |
dfkl600 | 5から22 | 160 | 1.5 | 5.5 | ・φ; 600mm | 38001600x2800 |
ペレット飼料機械dfkl508-01豚・動物飼料ペレットミル機を二重コンディショナー
高品質dfkl508-01豚ペレット飼料機械・動物飼料ペレットミルマシン2013ホット販売です
