製品情報
| 条件: 新しい | 原産地: 中国(本土) | 銘柄: clw |
| モデル番号: clw | 次元(L*W*H): 52601620x2210 | 容量: 10m3 |
| 重量: 2950キログラム | 提供される売り上げ後のサービス: 利用できる海外第三者サポート | 媒体: lpgガス |
包装
| 包装: R-Rの船または容器の裸体 |
仕様
lpg貯蔵タンク10m3地上部の販売のための小さなサイズ寸法52601620x2210mm専門メーカー

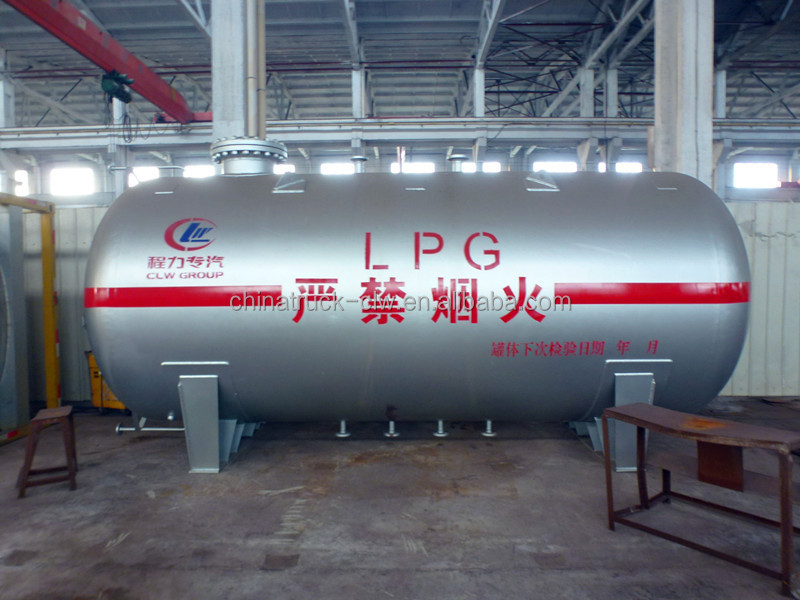

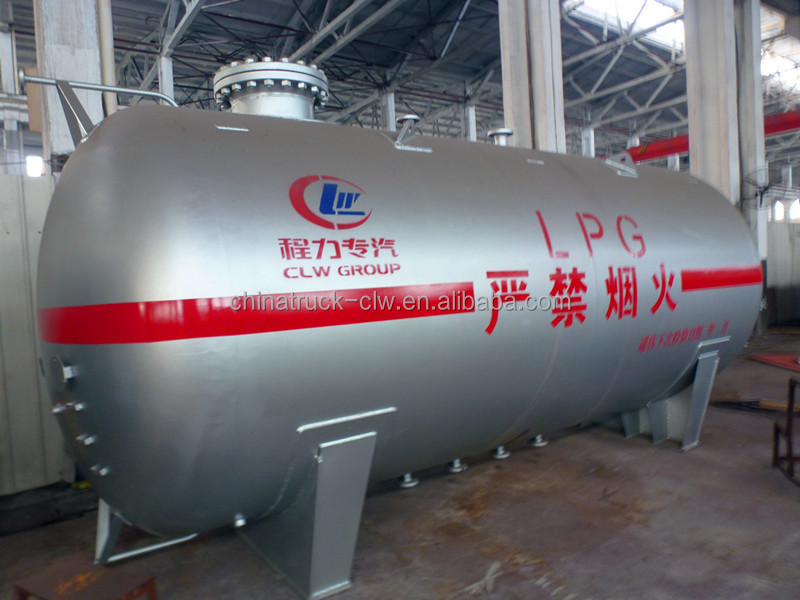

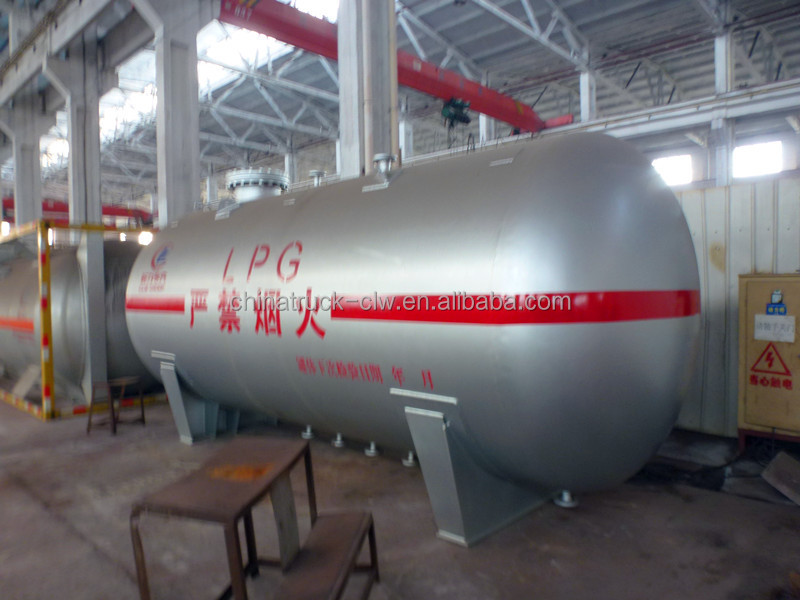

Aboveground 10m3 LPG storage tank for sales

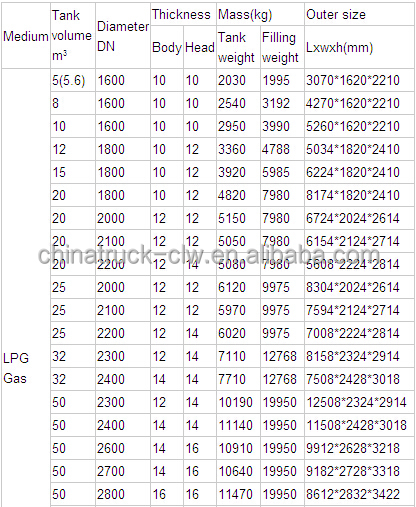

Product DescriptionChengli is a leading and professional manufacturer of LPG gas storage container, we can provide customers 5-120CBM LPG storage container for sale .

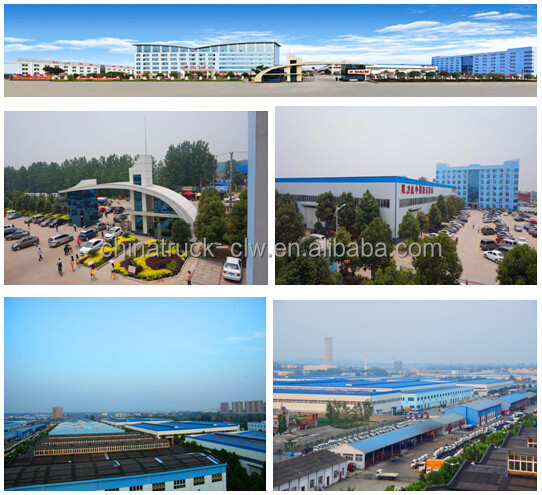

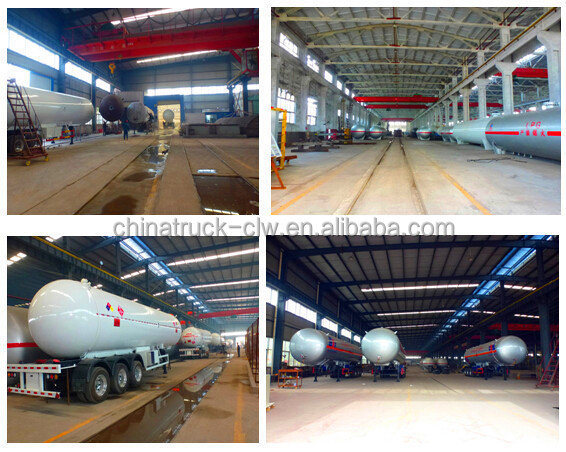

We have made the national A2, C2 three types of pressure vessel manufacturing qualification, to obtain export certification and export qualification. Companies with advanced equipment including automatic submerged arc welding machine, large underwater plasma cutting machine, rolling machine and other forming large tank. Testing equipment including ultrasonic flaw detector, X-ray detectors, magnetic detectors, equipped with heat treatment and testing rooms
Overall Dimension(mm) | 52601620x2210 | |
Filling material | LPG gas, 420kg/m3 | |
Tank Weight(kg) | 2950 | |
Filling Weight(kg) | 3990 | |
Tank material | Q345R | |
Thickness(mm) | Tank body | 10 |
Tank head | 10 | |
Nominal Diameter(mm) | 1600 | |
Corrosion allowance(mm) | 1 | |
Design pressure(Mpa) | 1.77 | |
Max working pressure(Mpa) | 1.8 | |
Test pressure(Mpa) | 2.22 | |
Design temperature | 50 | |
Safety accessories | safety valve,liquid level gauge,pressure gauge,temperature gauge,cut-off valve and others | |
