製品情報
条件: 新しい | タイプ: 横 | CNCまたはない: 正常 |
自動等級: 半自動 | 最高。 振動直径: 2500ミリメートル | 原産地: 中国(本土) |
銘柄: 『jiesheng" ブランド旋盤機械 | モデル番号: c61250 | 電圧: 380v |
力(W): 90kw | 重量: 60トン | 認証: :2008; ce; cqc |
提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため | 面板直径: 2500mm | ベッド上の最大回転直径: 2500mm |
最大。 ワークの長さ: 5〜20m | 証明書: :2008; ce; cqc | 納期: 在庫の |
耐荷重: 32/40/50/75/120トン |
包装
包装: パッキング: 正常なパッキング。 |
仕様
1.c61250大型横型旋盤2.証明書:: 2008; ce; cqc3.32/40/50トンの荷重4.アフターサービス良い

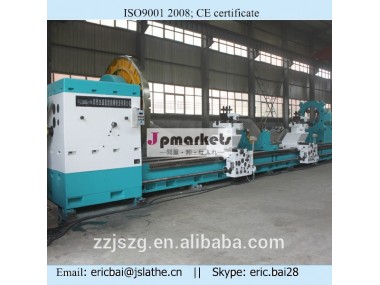

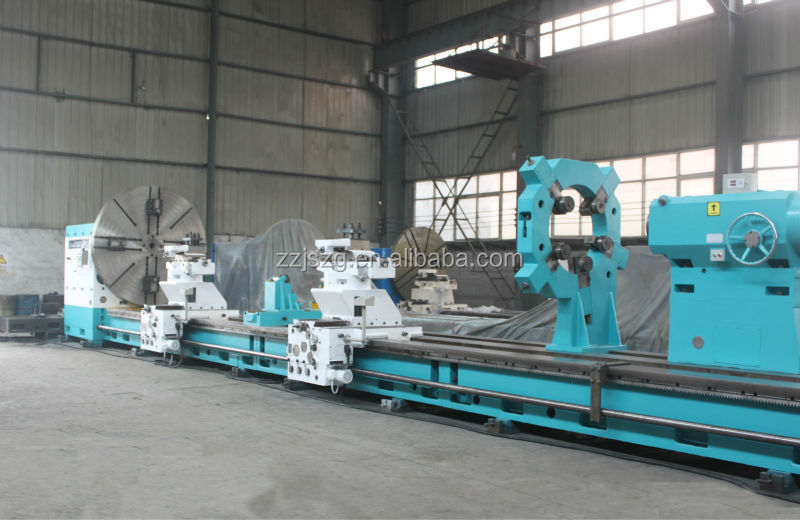

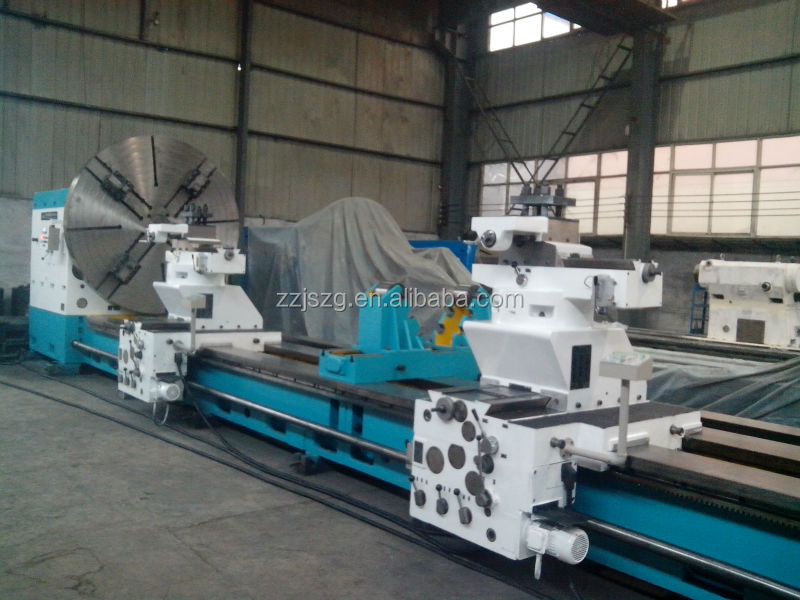

Heavy duty horizontal lathe machine C61250
(2500mm turning diameter)
1.Detailed Product Description
Horizontal lathe machine is widely applied to many industries such as rubber machinery, mine machinery, automobile manufacturing, aviation and shipbuilding and chemical machinery and so on, mostly suitable for processing large-diameter tire moulds, large-diameter flange, various valves pipelines, steamer machine accessories and helical supperts and other workpieces.
2.Main technical specification
Specifications// Model | Unit | C61160 | C61200 | C61250 | C61315 | C61400 |
Max. swing diameter over bed | mm | 1600 | 2000 | 2500 | 3150 | 4000 |
Max. turning diameter over carriage | mm | 1250 | 1600 | 2000 | 2500 | 3150 |
Max. length of workpiece | m | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
Max. weight of workpiece | ton | 32-200 | 30-200 | 32-200 | 32-200 | 63-350 |
Chuck diameter | mm | 1600 | 2000 | 2500 | 3150 | 4000 |
Max. torque of disk chuck | kn.m | 80 | 80/125 | 125/160 | 160 | 200 |
Range of spindle speeds | r/min | 1-200 0.8-160 0.025-125 | 0.5-100 0.8-160 0.025-125 | 0.63-125 0.5-100 0.4-80 | 0.5-100 0.4-80 | 0.5-100 0.4-80 0.3-63 |
Max. cutting force of knife rest | kn | 80/100 | 80/100 | 125 | 160 | 200 |
Feed range of knife rest (Vertical) | mm/min | 2-4500 | 2-4500 | 2-4500 | 2-4500 | 2-4500 |
Feed range of knife rest (Horizontal) | mm/min | 2-4500 | 2-4500 | 2-4500 | 2-4500 | 2-4500 |
Quick travel of knife rest (Longitudinal) | mm/min | 4500 | 4500 | 4500 | 4500 | 4500 |
Quick travel of knife rest (Horizontal) | mm/min | 4500 | 4500 | 4500 | 4500 | 4500 |
Lateral movement distance of knife rest | mm | 6700 | 800 | 1000 | 1250 | 1400 |
Travel of tailstock tube | mm | 200 | 300 | 300 | 300 | 300 |
Power of main motor | kw | 55 | 75 | 90 | 110 | 125 |

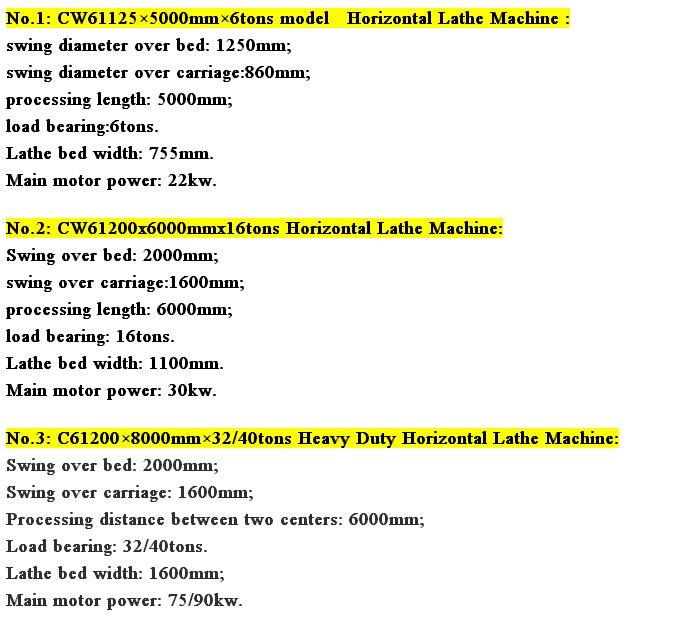

No.4: C61200×12000mm×32/40/50tons Heavy Duty Horizontal Lathe Machine:
Swing over bed: 2000mm;
Swing over carriage: 1600mm;
Processing distance between two centers: 12000mm;
Load bearing: 32/40/50tons.
Lathe bed width: 1600mm;
Main motor power: 75/90kw.
http://www.youtube.com/watch?v=V3trnj7TKS0
No.5: C61200×12000mm×75tons Heavy Duty Horizontal Lathe Machine:
Swing over bed: 2000mm;
Swing over carriage: 1600mm;
Processing distance between two centers: 12000mm;
Load bearing: 75tons.
Lathe bed width: 2100mm;
Main motor power: 90kw.
More details, you can enter into our website to have a look. www.zzjszg.en.alibaba.com or www.cnlathe.com
We are very good at producing the heavy duty lathe machine. Hope we can cooperate.
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
