製品情報
| 条件: 新しい | タイプ: エアコン | 原産地: 中国(本土) |
| 銘柄: anyda | モデル番号: Ayd-36aa | 操作電圧: 380v/415vac |
| 土台: 割れ目 | 認証: ce、 iso | 提供される売り上げ後のサービス: 利用できる海外サービスセンター |
| 冷却能力: ９０kw | 冷媒: R410/r407c/r22 | コンデンサー: スクロール |
| 蒸発器: 銅コイルアルミフィン付きチューブ | ファンタイプ: 遠心 | パワー: 25kw |
| コントロールタイプ: 膨張弁 | エアコン: エアコン | 寸法( l*w*h): ミリメートル2140*1380*1815 |
| 重量: 1600kg |

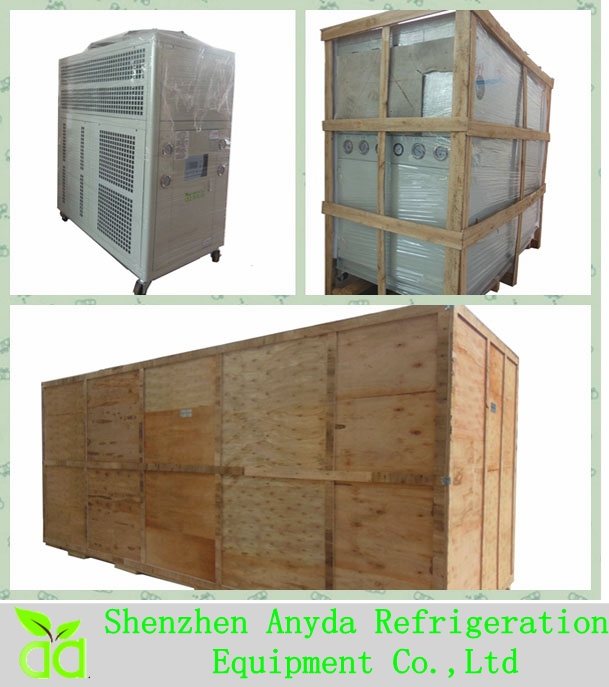

包装
| 包装: woddenケース |
仕様
エアコン1.私達は私達自身の工場。 2.demおよびoemの歓迎。 3.高効率、 低ノイズ

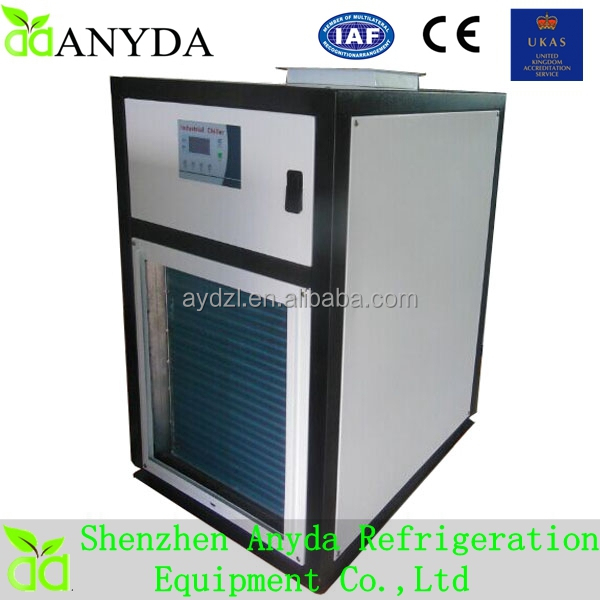

Industrial split type air conditioner
What is feature of our air conditioner ?
1. Using multilevel coaxial heat exchanger and high EER. It is stale and durable, low noise, savingpower and has enough cooling capacity.
2. Flexible for installing, convenient fr cleaning and maintenance. It has fashion appearance and running more economically.
3. Using two layers to filtr that make the air more fresh and feeling more comfortable.
4. Adopted intelligent microcomputer control, simple operation, stable and reliable to operate. It can configure with a remote control interface to make the management control the start stop of unit in long distance.
5. The built-in circulating pump and cooling tower are interlocking controlled.
6. Most models are using multiple refrigeration loop system , it is ability of regulation up to 6 level and save more energy under part load.
What is specification of our air conditioner ?
model | AYD-10WA | AYD-15WA | AYD-20WA | AYD-25WA | AYD-30WA | AYD-40WA | AYD-50WA | AYD-60WA | |
Cooling capacity | KW | 33 | 50 | 66 | 81 | 101 | 135 | 162 | 198 |
Power supply | 3N-380V/415V-50HZ/60HZ | ||||||||
power | KW | 9 | 13.45 | 18 | 22.75 | 28 | 37.5 | 48.5 | 56 |
Compressor type | scroll | ||||||||
Compressor quantity | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 5 | |
refrigerant | R22 | ||||||||
Control type | capillary/expansion valve | ||||||||
evaporator | Copper coils tubes with Aluminum fins | ||||||||
condenser | Shell and tubes | ||||||||
flow | m³/h | 6.9 | 10.5 | 14.5 | 16.8 | 21 | 28 | 34.7 | 42 |
pressure | kpa | 34 | 32 | 33 | 30 | 30 | 35 | 30 | 30 |
Fan power | KW | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
fan type | centrifugal | ||||||||
Driven way | directly/belt | ||||||||
Air volume | CMH | 5400 | 7800 | 10000 | 12500 | 15000 | 21500 | 25000 | 32000 |
Outside pressure | Pa | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 450 |
Motor power | KW | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 11 |
noise | Db(A) | ≤67 | ≤69 | ≤71 | ≤72 | ≤74 | ≤76 | ≤78 | ≤81 |
L | mm | 1360 | 1650 | 1850 | 1920 | 2130 | 2140 | 2240 | 2660 |
W | mm | 560 | 660 | 750 | 1085 | 1200 | 1380 | 1380 | 1385 |
H | mm | 1700 | 1870 | 1870 | 1900 | 1815 | 1815 | 1815 | 1960 |
Unit weight | kg | 290 | 500 | 580 | 870 | 980 | 1600 | 1700 | 1800 |
Water pipe | inch | 1.5 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
Condensing pipe | inch | 1 | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Product pictures:
Our company has established a new product development center to meet the requirements of our
OEM clients. By offering the best quality products, competitive prices and excellent services, we
are always prepared to meet any requirements from our customers all over the world regardless
of the different standards of each country.
With professional manufacturing processes and perfect quality control system, our products enjoy
a high reputation in US and overseas. We can give clients the best prices for a larger profit margin.
Potential customers are welcome to contact us or visit our factory for more details.
