製品情報
銘柄: gs | モデル番号: 6ik180gu- af/6ik180gu- 船尾 | タイプ: 誘導電動機 |
頻度: 50hz/60hzの | 出力電力: 180ワット | 特徴を保護しなさい: 他の |
段階: 単相 | 認証: CCC, CE, UL, cu | AC電圧: 1ph100v |
原産地: 中国(本土) | 効率: IE 1 | 電流: 3.20a/3.50a |
始動トルク: 900mn。 m | 定格トルク: 1385mn。 m/1120mn。 m | 定格速度: 1250r/min/1550r/min |
コンデンサ: 45.0μf |
包装
包装: ビニール袋とカートンの包装 |
仕様
1.寸法のデバイス: ファンモーター104ミリメートル2.パワー: 180ワット3.電圧: 1ph100v/110v/120v/220v/230v4.ccc、 ce、 ul、 cu

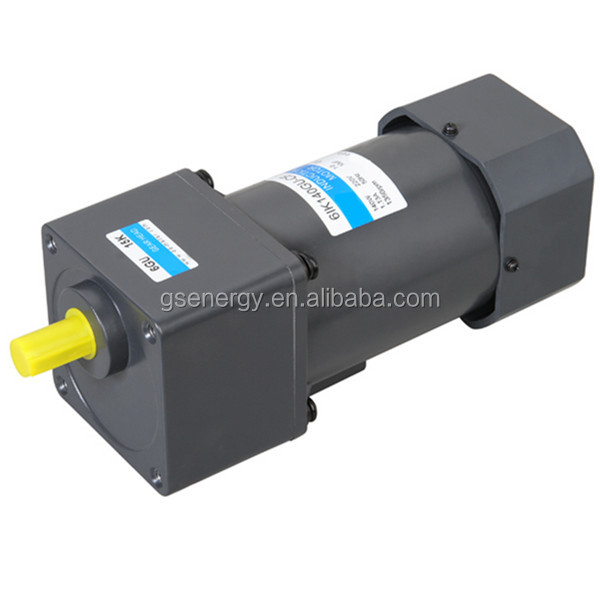

180W 104mm ac fan motor
Introduction
Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.
Specification
Model | Output power | Voltage | Frequency | Current | Starting Torque | Rated Torque | Rated Speed | Capacitor | |
Lead Wire Type | Terminal Box Type | ||||||||
6IK180GU-AF (6IK180A-AF) | 6IK180GU-AFT (6IK180A-AFT) | 180 | 1ph100 | 50 | 3.20 | 900 | 1385 | 1250 | 45.0 |
60 | 3.50 | 1120 | 1550 | ||||||
6IK180GU-EF (6IK180A-EF) | 6IK180GU-EFT (6IK180A-EFT) | 180 | 1ph110 | 60 | 2.75 | 850 | 1120 | 1550 | 35.0 |
1ph120 | 2.65 | ||||||||
6IK180GU-CF (6IK180A-CF) | 6IK180GU-CFT (6IK180A-CFT) | 180 | 1ph220 | 50 | 1.40 | 1100 | 1385 | 1250 | 12.0 |
1ph230 | |||||||||
6IK180GU-HF (6IK180A-HF) | 6IK180GU-HFT (6IK180A-HFT) | 180 | 1ph220 | 60 | 1.40 | 1000 | 1120 | 1550 | |
1ph230 | |||||||||
6IK180GU-SF (6IK180A-SF) | 6IK180GU-SFT (6IK180A-SFT) | 180 | 3ph220 | 50 | 1.20 | 3400 | 1385 | 1250 | — |
60 | 1.00 | 2700 | 1120 | 1550 |
Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.
