製品情報
| 原産地: 中国(本土) | 銘柄: Pntech | モデル番号: PV004 |
| タイプ: pv connector | 適用: solar system | 性: male&female |
| color: black |
包装
| 包装: 500pcs in a carton, carton size: 42*42*22 |

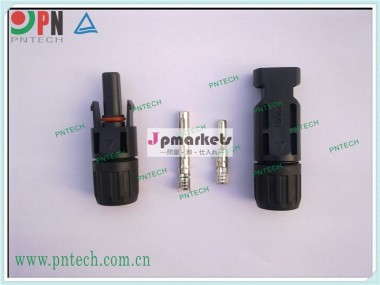

MC4 solar connector：
Application
This connector is specifically designed for connecting photovoltaic system components inside and outside of building and equipment.
Technical Data
Technical Data | |
Trademark | |
Type | PV004 |
Rated Voltage | 1000VDC |
Rated Current | 16A |
Safety Class | Class II |
Protection Degree | IP65 |
Contact Resistance | ≤5mΩ |
Pollution Degree | 2 |
Insulation Material | PC/PA |
Ambient Temperature | -40～+85℃ |
Line Range | 4MM2 |
Flame Class | UL94-V0 |
General features:
Load capability with big current and high voltage
Lower contact resistant
Design of waterproof and dustproof
Excellent performances of high-low temperature ,fireproof, anti-ultraviolet
