製品情報

原産地: 中国(本土)	銘柄: igercn	モデル番号: Dnle- 32
タイプ: 地球の漏出	ポーランド人は番号が付いている: 1p+n

包装

包装: 120pcs/ctn、 g。 w: 13.8キログラム。 nw: 13キログラム

仕様

1.これは最新製品、 私たちは製品の特許! 2.オーストラリアに販売するgb16917.1,iec61009

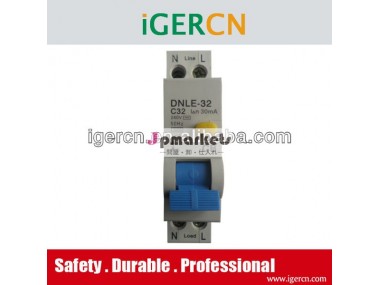

DNLE-32 products provide protection against earth faults, overloads, short circuits and over -voltage incommercial and dometic installation. The PCBO with both disconnected neutral and phase guarantees its proper actuation against eath leakage fults even when the neutral and phase are wrongly connected the electronic RCBO incorporate a filtering device preventing the risks of unwanted due to transient voltages and transient currents, positive contact indication in accordance with 16th edition of the IEE wiring regulations.





Main technical parameters

TYPE	DNLE-32
NUMBER OF POLES	1P+N
RATED CURRENT(In)	6,10,16,20,25,32A
RATED OPERATING CURRENT(In)	30,100MA
RATED VOLTAGE(V)	AC240V
SHORT-CIRCUITE BREAKING CAPACITY(Inc)	3000A
ENDURANCE	≥6000TIMES
RESIDUAL CURRENT-OFF TIME	≤0.3S
DESIGN	A  AC
RESIDUAL CURRENT SCOPE	0.5IΔn-1n







Construction features

1.  Measuring component and buckling component of products is located between enter line end and entrance line end ;

2. Movement characteristic of products can not be changed with outside mechanical tool ;

3.The operating organization has the free function to take off and buckle;

4. Operate part can not be taken down from the shell outer of products ,the shell can not influence the operating organization to work, the accessory group which replac the feelers pressure ,should guarantee the feelers pressure does not change while running .

5. Overall and mounting dimensioned chart.
