製品情報
| 原産地: 中国(本土) | 銘柄: yutong | モデル番号: y2シリーズ電気モーター |
| 中心の高さ: 80〜355ミリメートル | 同期速度: 592-2981rpm | ポール: 2,4,6,8,10 |
| 認証: Ccccei so9001: 2008 | パワー: 0.55kw-250kw |
包装
| 包装: 合板ボックス |
仕様
1.iec規格、 すべてを一致させる機械の種類、 家庭内や海外2.のために特に加工機のポンプと送風機
Principle:

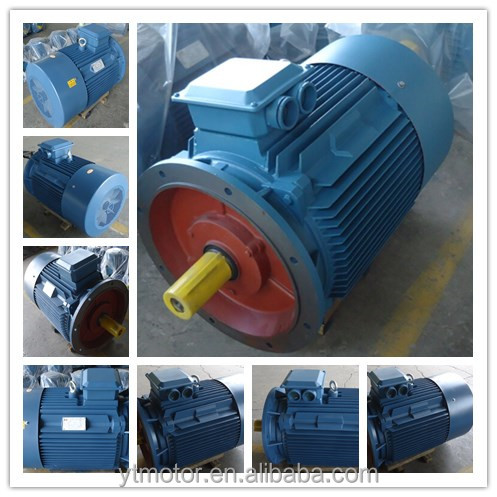

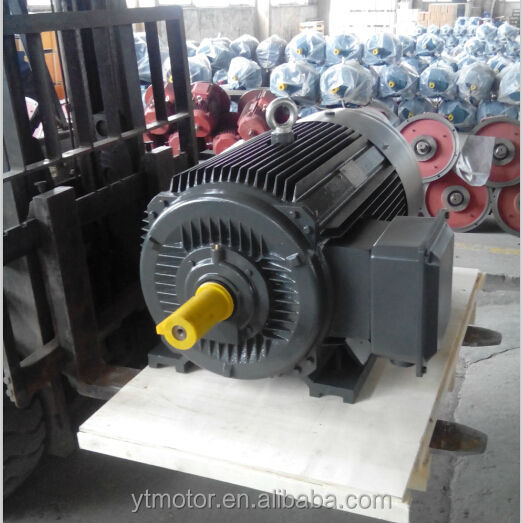

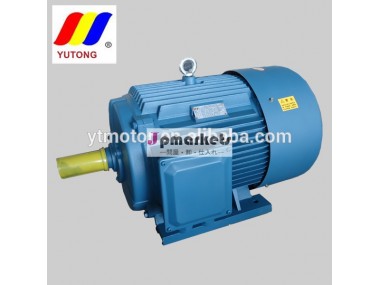

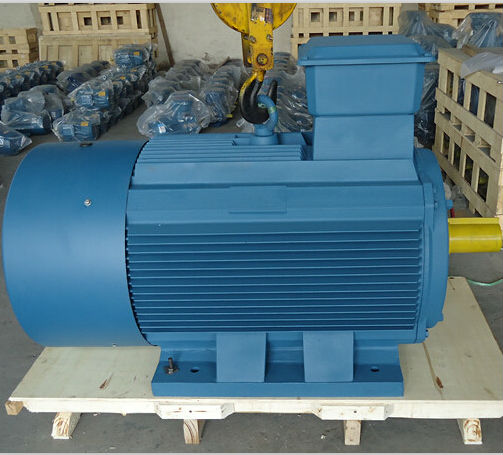

Y2 series three-phase induction motors are designed according to national standard with a squirrel-cage construction and a general application. Its frame central height
Advantages:
high efficiency, low energy consumption, little noise, light weight,small bulk,excellent performance,reliable operation, and easy maintenance.
Use:
this series motors can be widely used in equipments have no special request for architecture, agricuture, coal, mining and so on, such as blowers, pumps, machine tools, hoist and the processing machinery for agricultural and side-line products.
Center height of frame size: 80-355
Insulation class: F
Protection class: IP54
Cooling method: IC411
Environment Tempreture: -15-+40 degree
Volt: 380V/415V/525V/660V 50Hz three phase
Connection way: Y below 3kw Triangle above 4kw
Type | Power | Weight (KG) | FOB price in USD | |
kW | HP | |||
Y2-801-6 | 0.37 | 0.50 | 15 | 51.62 |
Y2-802-6 | 0.55 | 0.75 | 16 | 58.06 |
Y2-90S-6 | 0.75 | 1 | 19 | 66.14 |
Y2-90L-6 | 1.1 | 1.5 | 22 | 83.06 |
Y2-100L-6 | 15 | 2 | 32 | 106.45 |
Y2-112M-6 | 2.2 | 3 | 41 | 143.55 |
Y2-132S-6 | 3 | 4 | 63 | 162.90 |
Y2-132M1-6 | 4 | 5.5 | 72 | 196.78 |
Y2-132M2-6 | 5.5 | 7.5 | 81 | 259.68 |
Y2-160M-6 | 7.5 | 10 | 118 | 322.58 |
Y2-160L-6 | 11 | 15 | 145 | 427.42 |
Y2-180M-6 | 15 | 20 | 178 | 504.84 |
Y2-200L1-6 | 18.5 | 25 | 200 | 548.39 |
Y2-200L2-6 | 22 | 30 | 228 | 803.23 |
Y2-225M-6 | 30 | 40 | 265 | 938.71 |
Y2-250M-6 | 37 | 50 | 370 | 1175.81 |
Y2-280S-6 | 45 | 61 | 490 | 1383.87 |
Y2-280M-6 | 55 | 75 | 540 | 2367.74 |
Y2-315S-6 | 75 | 102 | 900 | 2619.35 |
Y2-315M-6 | 90 | 122.5 | 980 | 2983.87 |
Y2-315L1-6 | 110 | 150 | 1045 | 3306.45 |
Y2-315L2-6 | 132 | 180 | 1100 | 4548.39 |
Y2-355M1-6 | 160 | 218 | 1550 | 4951.62 |
Y2-355M2-6 | 200 | 272 | 1600 | 5322.58 |
Y2-355L-6 | 250 | 340 | 1700 | 5741.94 |
Type | Power | Weight (KG) | FOB price in USD | |
kW | HP | |||
Y2-132S-8 | 2.2 | 3 | 64 | 135.48 |
Y2-132M-8 | 3 | 4 | 78 | 159.68 |
Y2-160M1-8 | 4 | 5.5 | 105 | 222.58 |
Y2-160M2-8 | 5.5 | 7.5 | 115 | 253.23 |
Y2-160L-8 | 7.5 | 10 | 145 | 306.45 |
Y2-180L-8 | 11 | 15 | 160 | 424.20 |
Y2-200L-8 | 15 | 20 | 228 | 545.16 |
Y2-225S-8 | 18.5 | 25 | 242 | 669.35 |
Y2-225M-8 | 22 | 30 | 256 | 741.94 |
Y2-250M-8 | 30 | 40 | 368 | 924.20 |
Y2-280S-8 | 37 | 50 | 472 | 1179.03 |
Y2-280M-8 | 45 | 61 | 538 | 1330.65 |
Y2-315S-8 | 55 | 75 | 900 | 2145.16 |
Y2-315M-8 | 75 | 102 | 1000 | 2532.26 |
