製品情報
| 条件: 新しい | 原産地: 中国(本土) | 銘柄: yason |
| モデル番号: Ys-tdp0 | タイプ: 単一の穿孔器 | 製品容量: 30-50pcs/min |
| 最高。 圧力(KN): 15kn | 最高。 タブレットの厚さ(mm): 2-6mmで | 最高。 タブレットの直径(mm): 6〜10ミリメートル |
| 電圧: ヌル | 力(W): ヌル | 重量: 30kg |
| 次元(L*W*H): 36*28*45cm | 認証: なしを持っている | 提供される売り上げ後のサービス: 提供される海外サービス無し |
| タイプ: シングルパンチ | 包装の細部: 標準エクスポートしたパッケージ | 船積みの時間: 24時間以内に |
| 配送方法: フェデックス、 dhl、 ems、 ups | 支払方法:: 呉、 t/t、 ペイパル |
包装
| 包装: 通常のパッケージ |
仕様
1.1ラウンド自由のためのダイ2.アルミ合金機械材料3.金型受付カスタマイズ4.小規模生産5.低ノイズ

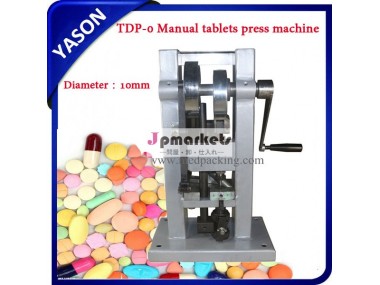

TDP-0 Tablet Press
Ask the manual from us to help
you know how to use the machine!!!!
Overview
-------------------------------------------------------------------------------------------------------------------
This machine is used for tabletting different kinds of powder raw materials into diverse shape tablets.
It is applicable to trial manufacturing in lab or batch production in small-batch of tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc..
It features a small desktop type press for motive and continual sheeting.
It can also be hand-operated optional. Meanwhile, that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well.
only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Main Technical Parameter
------------------------------------------------------------------------------------------------------------------------------------------
Max. pressure | 1.5kn |
Max. tablet diameter | 12mm |
Max. tablet thickness | 6mm |
Max. filling depth | 16mm |
Production capacity | 20-40pcs/min |
Size: | 300mm×190mm×480mm |
Weight: | 30kg |
*Note: The above parameters for reference only. The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
Structural Features
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lThe principal part of this device is a body of dragon gate, which is welded by carbon steel. The upper part is combined with the principal axis and the core shift as well as the filling cam, on the right end of which is equipped with the rocker arm and the hand shank. Transmit the principal axis manually to drive the core shift, filling cam, lifter as well as the feeder. The small lever drives the feeder to realize different lifting motions.
lMain working process: A. filling; B. STAMP (stamping forming); C. slice. These three steps are made one by one, each of which can be adjustable, applicable for forming of various tablets.
lThis device is characterized by small volume, light weight, attractive appearance, compact structure, simple operation, wide application and easy carrying without need of electricity. It can be operated manually, replacing new moulds with different specifications can obtain tablets as required.
Maintenance Instructions
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lWith respect to lubrication of equipment apparatus, refuel (engine oil and grease) the beam hanger on various operative components.
lIn case of once use completion or shutdown, it is required to clean materials with antirust oil to be coated.
lPlace the moulds with antirust oil in the container with the cover away from injury and rusting.
Announcements
------------------------------------------------------------------------------------------------------------------------------------------
lIt is prohibited to place hands underneath the upper and middle moulds to avoid personal injury.
lIt is required to make materials into particles before tablet pressing based on the technique.
lIt is required to fix the equipment on the work bench before use.
Pictures
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
shipping & package
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Pakcaging:Wooden Case+Film
Shipping Time:Within 24h after payment /confirm/ied
Shipping Methods:DHL,Fedex,UPS,EMS,TNT,Sea
After-sales
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our machines undergo an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.
♦Payment Methods♦
These payments of T/T, L/C, Western unio, MoneyGram,Paypal are accepted. If you have any problem with the payment, please leave a message to us.
♦Logistics♦
DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.
♦Tracking Number♦
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
♦Feedback♦
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
♦Refund♦
Any damage or shortage of our goods when you receive your items. Please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.
