製品情報
| 条件: 新しい | CNCまたはない: CNC | 原産地: 中国(本土) |
| 銘柄: cnchengfei | モデル番号: hf1325atc | 電圧: Ac220v/380v、 50/60hz、 3ph |
| 力(W): 12kw | 次元(L*W*H): 3380*1980*1780mm | 重量: 1700キログラム |
| 認証: ce | 保証: 2年 | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため |
| 制御システム: Syntec/アドテック | サーボシステム: 安川電機/パナソニック | 旋盤の構造: 溶接チューブフレーム( 砂研磨、 粉体塗装) |
| 色: お客様の選択に依存しそれ |
包装
| 包装: 木製ケース |
仕様
木材ルーティング機でほこりmacinery1自動工具交換ツール26size1300*25003高- precisio4ce
Product Description

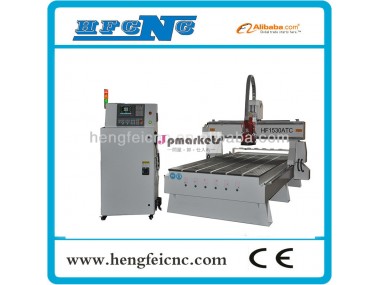

CNC router HF1325ATC
HENGFEI ATC CNC router advantages:
1.Adopt water cooling ATC spindle of big power (option: Italy HSD 9.0KW air cooling ATC spindle)
2.All the spare parts of the machine adopt the international advanced parts. Special automatic knife
changing data control function, the position of the knife head can be adjusted automatically, automatic
knife adjust system.
3. Use Germany original vacuum absorption and no oil vacuum pump, adopt the Italy exported air
cooled big power electrical main axis, the driving system adopts Japanese servo engine with high
control precision.
4.Capacity protect working table: avoid destroy the table because false operation or the false software.
Capacity process over area protection: avoid the mechanic collide because of the design area goes
over the working area.
5. High accuracy, long service time, steady movement and good starting performance, great torque,
fulfilling the advantage of working with fast speed and high efficiency.
6.Japan YASKKAWA Servo motor ensures machine to run with fast speed and low noise
7.Unique Auto-Tool-Changer system can change tools alternatively. Tool sensor to compensate the tolerance of tool length.
8.Working areas 1300mmX2500mm,1500mmX3000mm for option.
Applicable industry and material :
1. Advertising industry: cutting/engraving/drilling/photo engraving, cutting, drilling on wood, MDF,
bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave,cut,drill,photo engraving on copper,iron and aluminum,alloy,steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo
engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift
cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall,etc.
5. Model making: to cut materials into different shapes for models making.
6.Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic,
wood and ink storage materials and so on.
Note: There are also other industries application of cnc routers, pls /confirm/i with us if you are not sure.
Specification:
| Model | HF 1325ATC |
| Working area(x y z) | 1300*2500*150mm |
| Max speed | 60000mm/min |
| Max cutting speed | 25000mm/min |
| Resoloutions | 0.02 |
| Spindle power | 9KW ltaly HSD spindle ER32 |
| Spindle speed | 0-24000rpm |
| Lathe structure | steel tube frame |
| X Y transmission | Rack pinion and linear rails |
| Z transmission | Ball screw and linear rails |
| Working mode | Yaskawa aervo system |
| Working voltage | AC380/220V,50/60HZ,3PH |
| Commmad code | G code |
| Control system | Syentec control system |
| Softare | Typ 3 Artcam Ucancam |
| Gross weight | 1700KGS |
| Packing dimensions | 3380*1980*1780mm |
Our Services
Machine installing: Add skype :hengfeicnc_laser, when you got machine, we can video chat,then we can help you install the machine step by step.
Add whats up ID: +8615628765768, VIBER ID:+8615628765768 ,we can communicate with each other at any time.
Operating the machine: We have made video on how to use the machine,and we will send this with the machine, or we can video chat .
Make toolpath for cutting or engraving: Normally we use artcam software, for this software ,it supports mny different forms designs,such as DXF,DWG,EPS,PLT,AI,BMP,So it can work with many softwares such as Autocad, soliworks,coreldraw,illustrator... So it will be easy to operate.There is also videos showing how to make toolpath step by step.
Professional technical guy will give you support for everything, If you do not know more about cnc router, just add this guy to consult which specification you should choose, how to choose machine and so on.
Talk online: skype: hengfeicnc_laser ,or just call him freely, +86-15628765768
FAQ
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port
if you tell detail information about your country port.
Our advantages:
1 Quality of machine is good.We use many famous brand of cnc router parts such as
Italian HSD spindle,Syntec control system ,Hiwin linear rails,Yaskawa motors and
drivers,Panasonic motors and drivers,RSK ball screw.
2 We can give best service. As salesman in our company, we had been service
service engineer of cnc router for more than 4 years, so we can fix all the problems
you met.So when you tell us your problem, we will give you solutions in 20 minutes.
3 Machine warranty is 1 years.
