製品情報
条件: 新しい | 原産地: 中国(本土) | 銘柄: yuannuo |
モデル番号: yn150s木材旋盤マシン | 電圧: 380v/220v | 認証: ce、 fda |
保証: 1年間 | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため | スピンドル電力: 3kw/4キロワット/5.5kwオプション |
包装
包装: 輸出木製ケースsatndard |
仕様
木材旋盤機1速いスピード2台湾suqareレール3日本ネフボールねじドイツ4周波数変換器

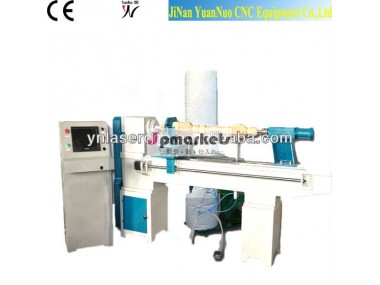

木材旋盤マシンyn150s と販売のための高速性と正確性
According the requirement and characteristics of woodworking industry、 cnc woodworking lathe combining cnc and other mechanical technology、 could process the complex shape of the wood rotary products or semi- finished wood products。 、 such as cylindrical、 conical、 curved、 spherical etc。 it is especially suitable for the mass production of small or medium- scale wood enterprises、 set shape flexibly and changing processing style rapidly。
Main features:
1) driving system: adopt frequency conversion speed regulation system、 could adjust the turning speed at any time to solve the problem of materials・rsquo; vibration。
2) spindle: we could configure single spindle or two spindles、 single spindle could configure chuck、 two spindle could process two pieces at the same time for high efficiency。
3) performance part: high accuracy stepper motor、 after program calculating、 guarantee the exact processing size。
4) feeding part: taiwan tbl high quality straight line sliding rails and germany neff precise ball screw、 control the linear error effectively。
5) japanese frequency converter with high stability
6) operation system developed by ourself with patent is easy to operate。
アプリケーション:
Various cylindrical workpiece、 bowl sharp、 tubular sharp and vehicle wood crafts、 such as various staircase column、 roman column、 general column、 tables or chairs legs、 washstand、 wooden vase、 wooden table、 baseball bat、 car wooden furniture、 children' s bed column、 etc。
Model | yn150s | yn200s |
Outline dimension | 2800*800*1400mm | 3500*800*1400mm |
Spindle power | 4kw/5.5kw | 4kw/5.5kw |
Net weight | 1600キログラム | 2200キログラム |
Spindle turning speed | 0- 4000 rpm | 0- 4000 rpm |
X axis turning speed | 0-2800rpm | 0-2800rpm |
Z axis turning speed | 0-2800rpm | 0-2800rpm |
Max turning depth | 20mm | 20mm |
Max process diameter of single spindle | 380ミリメートル | 380ミリメートル |
Max process diameter of two spindles | 160mm | 160mm |
Processing length | 1500ミリメートル | 2000ミリメートル |
アクセサリーやサンプル:
