製品情報
原産地: 中国(本土) | Type: Drill Pipe | Material: 26CrMo4s/2 |
Length: 5.49m to 13.72m | Processing Type: Forging | Machine Type: Drilling Equipment |
Pipe Body: OD60.3mm to 139.7mm | Model Number: E75,X95,G105,S135 | Use: Well Drilling |
包装
包装: as customers request |

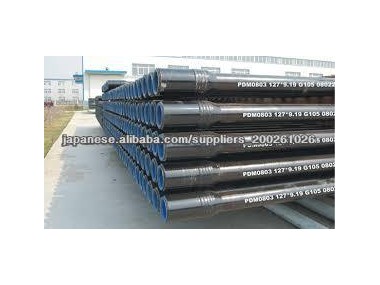

High Quality Api Mining Drill Pipe
Specifications
1)OD:2 -3/8,3-1/2,4- 1/2,5,5-1/2
2)Grade: E75,X95,G105,S135
3)Upset:IU EU IEU
4)Hardbanding:TK34 TK34P
5)Coating:ARNCO100XT
Drill pipes are steel tubes with threaded ends that are used to connect a drill rigs surface equipment with its drilling equipment, or bottomhole assembly, at the bottom of a well. They are used to transport drilling fluid to drill bits, and to raise, lower and rotate the bottomhole assembly along with the drill bit. Drill pipes must be manufactured to withstand severe internal and external pressure, distortion, bending and vibration. They are reusable and are not considered consumables in the process of exploring for and extracting oil and gas.
Drill Pipe performance Parameters
Spec | Weight | Flat-end Weight | External Diameter D | Wall Thickness t | Grade | Upset Type | |||
lb/ft | Kg/m | inch | mm | inch | mm | ||||
2-3/8 | 6.65 | 6.27 | 9.33 | 2.375 | 60.3 | 0.280 | 7.11 | EXGS | Upset |
2-7/8 | 10.4 | 9.72 | 14.47 | 2.875 | 73.0 | 0.362 | 9.19 | EXGS | Upset |
3-1/2 | 13.3 | 12.32 | 18.34 | 3.500 | 88.9 | 0.368 | 9.35 | EXGS | Upset |
3-1/2 | 15.5 | 14.64 | 21.79 | 3.500 | 88.9 | 0.449 | 11.4 | EXGS | Upset |
4 | 14.0 | 12.95 | 19.27 | 4.000 | 101.6 | 0.330 | 8.38 | EXGS | Int Upset |
4-1/2 | 16.6 | 15.00 | 22.32 | 4.500 | 114.3 | 0.337 | 8.56 | EXGS | Int-Ext Upset |
4-1/2 | 20.0 | 18.71 | 27.84 | 4.500 | 114.3 | 0.430 | 10.92 | EXGS | Int-Ext Upset |
5 | 19.5 | 17.95 | 26.70 | 5.000 | 127.0 | 0.362 | 9.19 | EXGS | Int-Ext Upset |
5 | 25.6 | 24.05 | 35.80 | 5.000 | 127.0 | 0.500 | 12.7 | EXGS | Int-Ext Upset |
5-1/2 | 21.9 | 19.83 | 29.52 | 5.500 | 139.7 | 0.361 | 9.17 | EXGS | Int-Ext Upset |
5-1/2 | 24.7 | 22.56 | 33.57 | 5.500 | 139.7 | 0.415 | 10.54 | EXGS | Int-Ext Upset |
