製品情報
原産地: 中国(本土) | 銘柄: 儀化 | モデル番号: 8508d |
インナーボックス寸法( cm): 32*27*19.8cm | 外箱寸法( cm): 56*34.5*42cm | 総重量: 3.6kg/pcs |
数量: 6pcs/カートン |
仕様
1.スピードボール空気ディスプレイ2.空気銃はオート。 手動スイッチ/3.シリコンワイヤ、 寿命と安全性。
YIHUA 8508D IC / PCB Hot-Air Soldering Station , Manual / Auto Soldering Station
Main Function
1. SAMSUNG microcomputer control,warming-up quickly.
2. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
3. Adjust the air flow and temperature control rotation.
4. Refer to the instructions included with three kinds of nozzles (big, medium and small) replacement part.
5. Would replac the part if the resistance value is incorrect.
6. When the temperature is less than 80oC, can stop rotation automatically.
7. Intelligent detection and cool airflow features.
8. Green lines and high-quality silicone body heat good for extend life and save power.
9. Comfortable portable handheld and the Digital LED display.*Put the key to AUTO-- When you put the gun on the holder over 2 minute, that the gun will enter into standby mode
*Put the key to MANUAL--When you put the gun on the holder,that the gun still work along

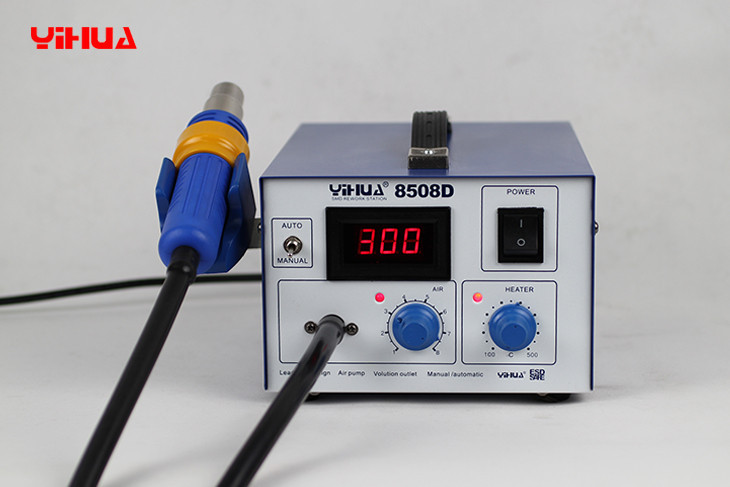

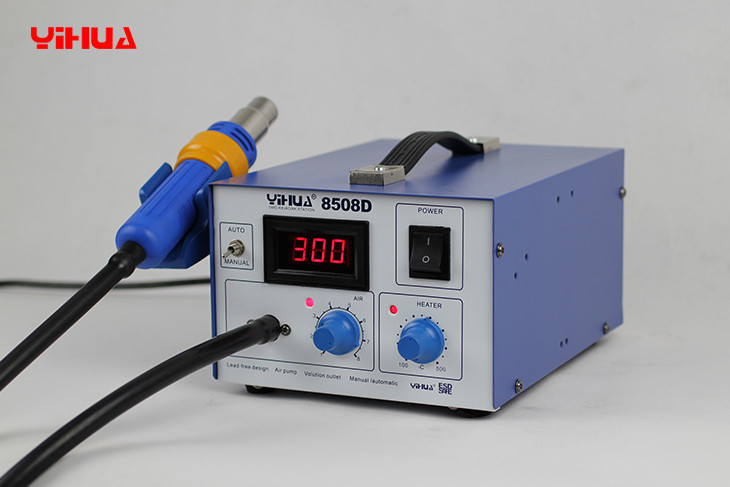

Display
![](http://i00.i.aliimg.com/img/pb/785/437/980/980437785_405.jpg?size=62462&height=487&width=730&hash=b6c69de36d3d9276a93d13acc22b00cc)
![](http://i00.i.aliimg.com/img/pb/785/437/980/980437785_405.jpg?size=62462&height=487&width=730&hash=b6c69de36d3d9276a93d13acc22b00cc)
![](http://i00.i.aliimg.com/img/pb/782/437/980/980437782_745.jpg?size=62262&height=487&width=730&hash=a0b858de10e6973ae312266d2221c903)
![](http://i00.i.aliimg.com/img/pb/782/437/980/980437782_745.jpg?size=62262&height=487&width=730&hash=a0b858de10e6973ae312266d2221c903)
Data
Power consumption | 700W |
Gun temperature range | 100-450oC |
Gun type | Diaphram pump Air flow 28L/MIN |
Gun heater material | Nickel alloy |
Gun heater resistance | 90 ohm |
*what difference for brushless fan and diaphragm pump?
diaphragm pump the air are focus , airflow are 24~28L/min. brushess fan the air are soft ,airfolw are 120L/min.
Model NO. | Inner box Dimension(cm) | Outer box Dimension(cm) | QTY | Product weight |
YIHUA 8508D | 32*27*19.8 | 56*34*60 | 6pcs | 4.2kg |
Remark
Specifications and design subject to change without notice
What's In The Box
* main unit + gun + power cord
* guide
* 3 nozzles
These are 220V units, we also do accept special orders for 110V / 230V/ 240V units
