製品情報
| 原産地: 中国(本土) | 銘柄: billioncom | モデル番号: epa2000 |
仕様
は、 ポータブルbillioncomepa2000fpga- ベースのマルチ- 機能的な高- エンドfttheponoamプロトコルアナライザのためのプロトコル分析。
Product Overview:

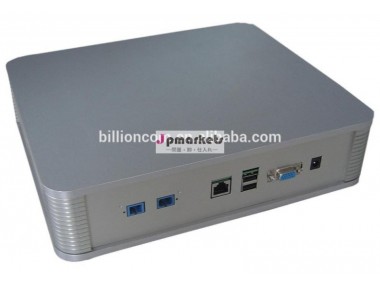

EPA2000 is a portable FPGA-based multi-functional EPON protocol analyzer launched by Sino. Compared with the existing EPON protocol analyzer in the market, EPA2000 can not only provide standard MPCP protocol, analyze standard OAM protocols, but also make targeted optimization according to the practical application of domestic EPON:
-- EPA2000 supports China Telecom CTC extended OAM standard protocol analysis;
-- EPA2000 supports EPON link wire speed decryption function and can work under the condition that EPON link is encrypted;
-- EPA2000 not only supports parallel mode and captures the packet by an external 2 × 2 splitter, but also supports cascade mode;
-- EPA2000 is with good appearance and compact structure, which is easy to carry. It can not only be used in laboratory testing, but also in EPON construction site.
The launch of EPA2000 breaks the monopoly of foreign manufacturers on high-end FTTH protocol analyzers. Compared with similar products in the international market, the targeted improvements make EPA2000 more suitable for domestic EPON network environment. EPA2000 can be widely used in the EPON OLT/ONU interoperability testing and the fault location of EPON link for domestic telecom operators and system equipment manufacturers.
Application Diagram:
Hardware Specification
Hardware Specification | Built-in X86 | ||
Chassis | Aluminum Milling Silver Chassis Dimensions: 272*240*64mm Net Weight: 3.6Kg | Mainboard | 3.5” industrial mainboard with low power consumption, RPGA988 CPU socket, which supports Intel i3-i5-i7. |
Power Supply | Input: DC12V/5A; Actual Power Consumption<48W | Chipset | HM67 Chipset |
Optical Interface | 1* OLT interface; 1* ONU interface | CPU | Core 15-2410M, dual core four threads |
Display Interface | VGA or Remote Desktop | CPU Clock Speed | 2.3G Hz |
USB | 2*USB, which can be connected with keyboard/mouse | Memory | 4GB DDR3, and it can be extended to 8GB |
Management Interface | 1*RJ45 | Hard Disk | 128GB SSD or 500G SATA |
