製品情報
製品のステータス: 在庫 | タイプ: バーコードの走査器 | スキャンエレメントタイプ: CCD |
色の深さ: 32ビット | インターフェイスの種類: USB, PS/2 | スキャン速度: 200スキャン/sec |
銘柄: scanhero | モデル番号: Sl-6331bt | 原産地: 台湾 |
ハウジング材料: abs | 寸法: メインユニット: xl160w69h88ミリメートルx | 基地局充電器: xl202w11h70ミリメートルx |
重量: メインユニット: 167±10g | 充電器重量基地局: 227±10g | 動作電圧: 3.7vdc( リチウムバッテリで1620mahの) |
バッテリー充電時間持続時間: cx4時間適切 |
包装
包装: カートンごと8セット、 カートンのサイズ: 44x28x37cm総重量: 7.2kg/ctn |
仕様
1.1dbluetoothワイヤレスバーコードスキャナ2.660nmの可視赤色led3.操作電圧: vdc3.74.fccクラスb、 ce認定品

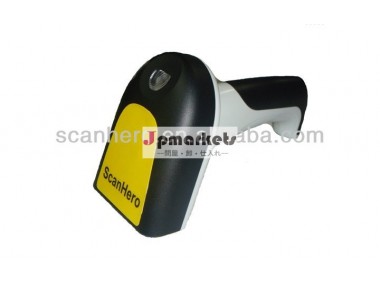

Scanherosl-6331bt1dbluetoothワイヤレスバーコードスキャナ:
仕様 | |
Optical ・ performance | |
light source | 660nm visible red led |
scan rate | 200 scans/sec |
resolution | 0.1mm ( pcs=90%) |
skew angle | & plusmn; 30% ; pitch angle& plusmn; 60% |
d。 o。 f | コード- 39 : 75~85mm @ 4 mil |
housing material | abs |
impact tolerance | 1.2m (i nclude outer covering with sponge) |
cable type | Usb cable |
dimension | main unit : l160 x w69 x h88 mm |
weight | Main unit : 167& plusmn; 10g |
電気 | |
operation voltage | 3.7 vdc ( by lithium battery 1620 mah) |
working current | typ。 340ma |
standby current | typ。 170ma |
power consumption ( 作業) | max。 1500mw ( main unit) |
battery charging time duration | Appro x 4 hours |
battery charge life time | 300 cycles |
battery low | 3.45 v |
Systems ・ software function | |
decode unit | Marson's software |
symbologies | ・#・ upc- a/upc-e、 ean- 8/ean-13、 industrial 2 of 5, codabar、 matrix 2 of 5, code 11、 code 93、 Code 32、 code 128、 standard code 39、 full ascii code 39、 interleaved 2 of 5, China postal code、 msi plessy code、 uk plessy code、 Ean/ucc 128、 telepen code、 iata code、 rss code |
ambient light | 10、 000 lux ( fluorescent light) |
Environment ・ safety conformance | |
operating temperature | 0~50c |
storage temperature | -10~60c |
relative humidity | 0%rh ( 非~85%rh (non- コンデンシング) |
emi emission | functional after 4kv contact、 8kv air discharge |
safety approval | Fcc class b、 ce |
