製品情報

原産地: 中国(本土)	銘柄: ＳＥＴＥＣ	モデル番号: Set24-50a
タイプ: 橋整流器	適用: インバーター/コンバーター	パッケージのタイプ: 穿孔
ピーク反復的な逆電圧: 85v~290v	ピーク非反復逆電圧: 24v	中間の状態の流れ: 50a
次元: 88mm*432mm*320mm	電力容量: 800w~2500w( に依存する要件)	800w~2500w( に依存する要件): 分30a
動作温度: 〜摂氏マイナス25度65度摂氏	相対湿度: ル97％rh	負荷レギ: ル0.5パーセント
アラームおよび保護: はい	連絡: mo味方	携帯: +8613925241170
スカイプ: 味方。 mo6

包装

包装: 従来のパッケージングは、 顧客の要件に従ってまたは

仕様

1.220vac48vdc整流器システム2.高効率96％3.n+1整流器モジュール4.電源5.セリウムの証明書

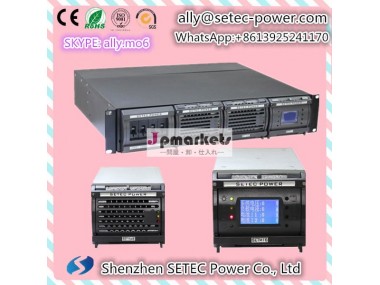

 Telecom Rectifiers 24/48VDC 30/60/90/120/150/180/210 Amps





1.Power rectifier system introduction :

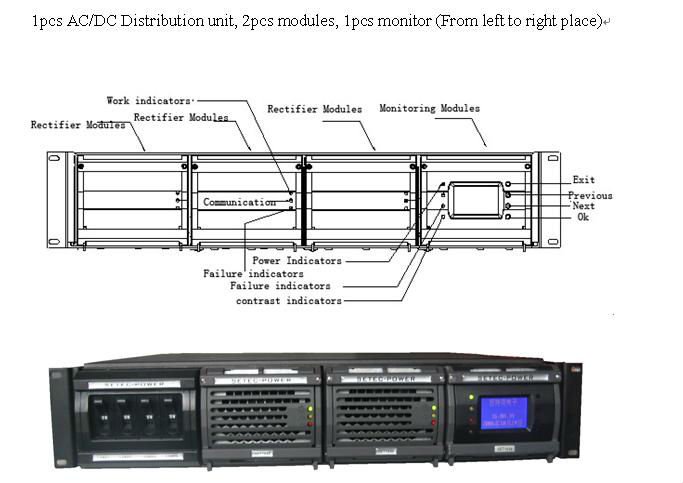

AC DC rectifier system is consisted by one rectifier module or multiple rectifier modules and monitor



modules. The power of rectifier systems can be different by different quantity rectifier modules.



This rectifier system converters high voltage AC to DC24V or DC48V use for special DC equipment



load. High efficiency>96%.



Remark:Some rectifier system need rectifier modules,monitor and distribution;some system only need



rectifier modules.ACDC rectifier system can supply DC power for DC load and charging for battery at



the same time.







2.Product Features:





1. Circuit of the Rectifier modules have two parts,one is PFC adjust; the other is DC/DC transformation.All



technically m ake the wide input voltage range (85V-290V).



2. High efficiency.rectifier modules used soft switch technology,while load rate10% then efficiency can be



91%,50% load rate the efficiency can be above 96%



3. With step less current limiter technology,output current is continuously adjustable.



4. Adopted step less temperature control speed,it can reduce power consumption and prolong the life of the fan.



5. Sharing Load, Equalized-current imbalance ≤ 3%



6. Optional Ethernet interface through SNMP and/or TCP/IP



7. Controller MCU



8. Digital signal collection via internal RS485 bus; RS232 interface for remote operation



9. 2U height, light weight, High power density.









Product detail





Why Do I Need To Convert from DC to AC?

Most cars and motor homes derive their power from a 12-volt battery. In some cases, a heavy-duty 24-volt battery might be used. It's important to know your vehicle's voltage because the voltage rating of the inverter you selec should match the voltage of the battery. In either case, the battery provides direct current. This means that the current flows continuously from the negative terminal of the battery, through the completed circuit and back to the positive terminal of the battery. The flow is in one direction only, hence the name direct current. The ability to provide direct current power is inherent to the nature of batteries.

Direct current is very useful, but batteries can generally only provide relatively low-voltage DC power. Many devices need more power to function properly than DC can provide. They're designed to run on the 120-volt AC power supplied to homes in the U.S. Alternating current or AC, constantly changes polarity, sending current one way through the circuit, then reversing and sending it the other way. It does this very quickly -- 60 times per second in most U.S. electrical systems. AC power works well at high voltages, and can be "stepped up" in voltage by a transformer more easily than direct current can.

An inverter increases the DC voltage, and then changes it to alternating current before sending it out to power a device. These devices were initially designed to do the opposite -- to convert alternating current into direct current. Since these converters could basically be run in reverse to accomplish the opposite effect, they were called inverters.

 Our Services

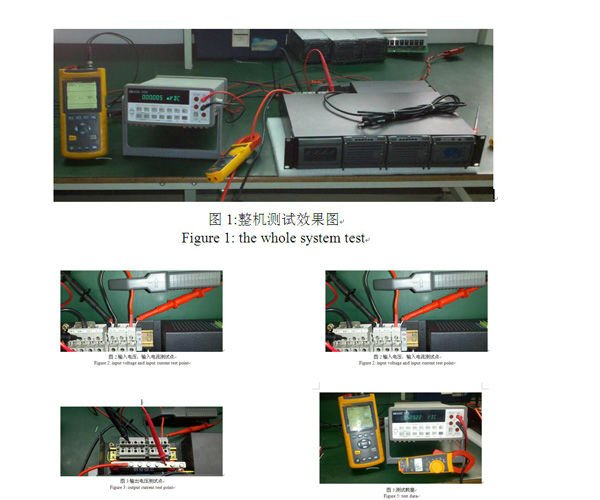

Before out of the factory, we ensure the rectifer quality is excellent and it must be strictly checked. The company assures customers that the cards in this set out to ensure a good machine performance, mechanical integrity. One-year free warranty service, warranty are as follows:

(1)In one-year warranty period, if mechanical damage and failure occure, we will provide free repair and replacement parts, damaged parts belong to the Company after examination of the company's technical staff confirmed that the aircraft is occurring under normal use.

(2)As stated in this warranty card machines in the following cases, the warranty period will expire automatically:

(a)The change of company trademarks;

(b) Due to misuse, negligent use, irresistible factors that cause damage;

(c) Not follow installation instructions that provided by the original installation to install.

(3) Please present this card, show the card and purchase receipt (invoice)to technicians to access when it need to be repaired.











Packaging & Shipping

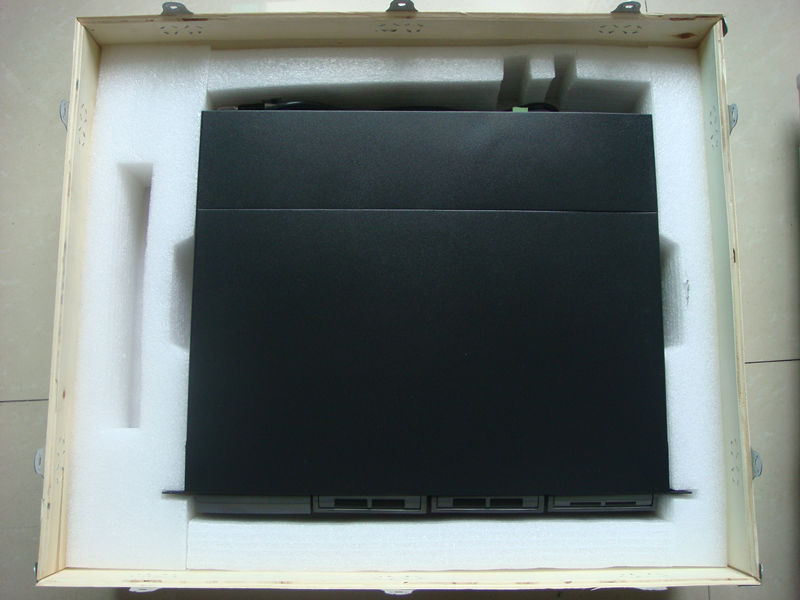

Packaging Details:	wooden box or follow the customers' requirement
Delivery Detail:	3 days









Please feel free to contact us.
