製品情報
標準的なか標準外: 標準 | 構造: ゲート | 圧力: 高圧 |
材料: 黄銅 | 媒体の温度: -20-- 150 | 媒体: 水性ガスオイル |
原産地: 中国(本土) | モデル番号: fmbr028 | 銘柄: kelma |
証明書: ce、 ccc、 rohs指令、 iso9000 |
包装
包装: 標準的な輸出カートン |
仕様
最小の性流体とのときに必要とされる小さな力を開いたり閉じたりバルブce、 ccc、 iso9000
Suggestions on application of gate valve
1.Smallest resistance with the fluid
2.Small force is needed when open and close the valve
3.Unlimited by the direction of medium
4.Resistance between the working medium and sealing surface is smaller than that stop
valve,s when the valve is opened completely

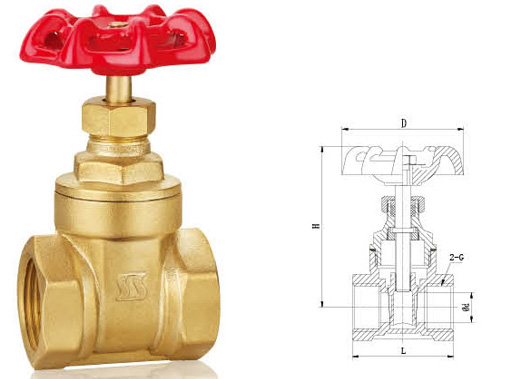

A.Handwheel F.Packing ring
B.Gland nut G.Gaskets
C.Gaskets(copper) H.stem
D.packing I.wedge disc
E.Gaskets J.body
