製品情報
原産地: 中国(本土) | 銘柄: mskj | モデル番号: Svr-1000va |
使用法: svr | 段階: 単一フェーズ | 現在のタイプ: AC |
入力電圧: 160v-250v | 出力電圧: 220v | 入力周波数: 50/60hz |
動作温度: 0~40°c |
包装
包装: 標準的な輸出カートンやカラーボックスパッケージ |
仕様
1入力: 160-270v出力: 110v/220v2の証明書: ce、i so90013速い配達、 3年間の保証

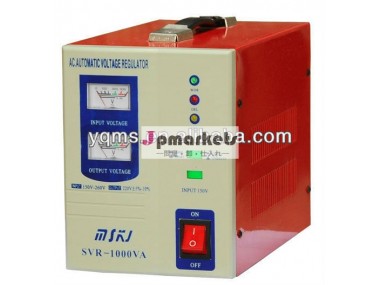

Svr series relay control ac automatic voltage stabilizer adopt microcomputer control 、 without abrupt turn- on surge intelligent over- voltage protection and low - voltage and overheating automatic turning off。 this machine is made with two kinds of delay time function、 and has control wide scope voltage、 high precision、 no waveform distortion、 high efficiency available performance 、 convenience use etc。
This machine with beautiful appearance、 and can be used for special produce 、 science research and another many fields 。 and also is one of very ideal automatic ac voltage stabilizer needed by household、 リレータイプ電圧レギュレータ。
行事 |
コンピュータ、 refrigerator、 air conditioner、 tv、 home appliance Hi- fi 機器 |
Performance |
Model | Svr-500va | Svr-1000va | Svr-1500va | Svr-2000va | Svr-3000va | Svr-5000va | Svr-8000va | Svr-10000va | |
パワー | 500va | 1000va | 1500va | 2000va | 3000va | 5000va | ュレータ | 10000va | |
入力 | 入力電圧範囲 | 160-250vac/120-250vac/100-250vac | |||||||
入力周波数 | 50/60hz | ||||||||
出力 | 出力電圧 | 220vac | |||||||
の出力精度 | ± 6% | ||||||||
効率 | 95% | ||||||||
相 | 単相 | ||||||||
メーター表示状態 | 入力電圧/出力電圧 | ||||||||
ledディスプレイ·ステータス | 作業 | 緑; 電源オンを示す/off | |||||||
遅延 | 赤; を示すで遅延/off | ||||||||
珍しい | 黄色; を示す定期的にマシンが動作している場合 | ||||||||
環境 | 動作温度 | 0~40・度; c | |||||||
保管温度 | ·- 15・度; c~45・度; c | ||||||||
動作湿度 | 10%rh~102%rh; 非- コンデンシング | ||||||||
物理的な | 梱包サイズ( mm) | 48*27*31 | 33*31*42 | 33*31*42 | 33*31*42 | 42*29*32 | 42*29*32 | 42*29*32 | 47*24*27.5 |
数量 | 8個 | 4個 | 4個 | 4 pcs | 1 pcs | 1個 | 1個 | 1個 | |
Meas。( cm)/pcs | 18.5*11*14 | 25*14*19 | 25*14*19 | 25*14*19 | 34.5*21*26 | 34.5 |
