製品情報
| 原産地: インド | 銘柄: PEC | モデル番号: 750 KVA |
| 使用法: SVC | 段階: 三相 | 現在のタイプ: AC |
包装
| 包装: WOODEN PACKING |
仕様

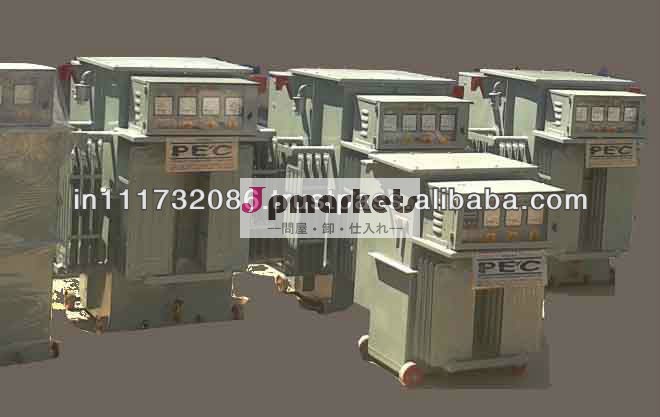

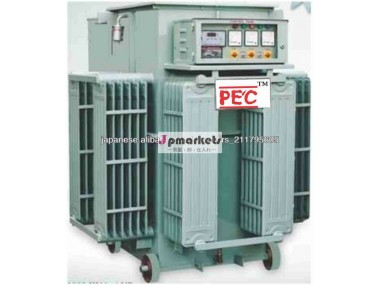

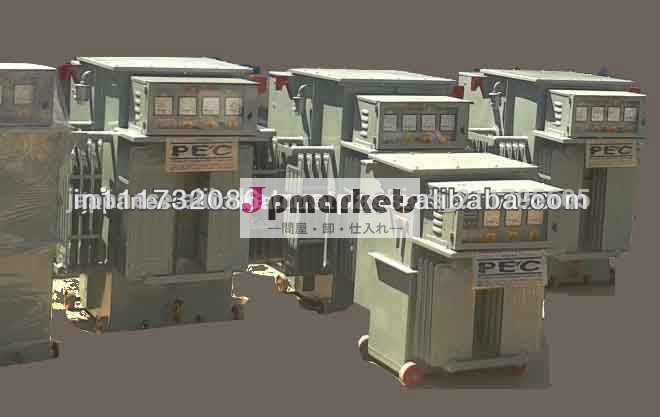

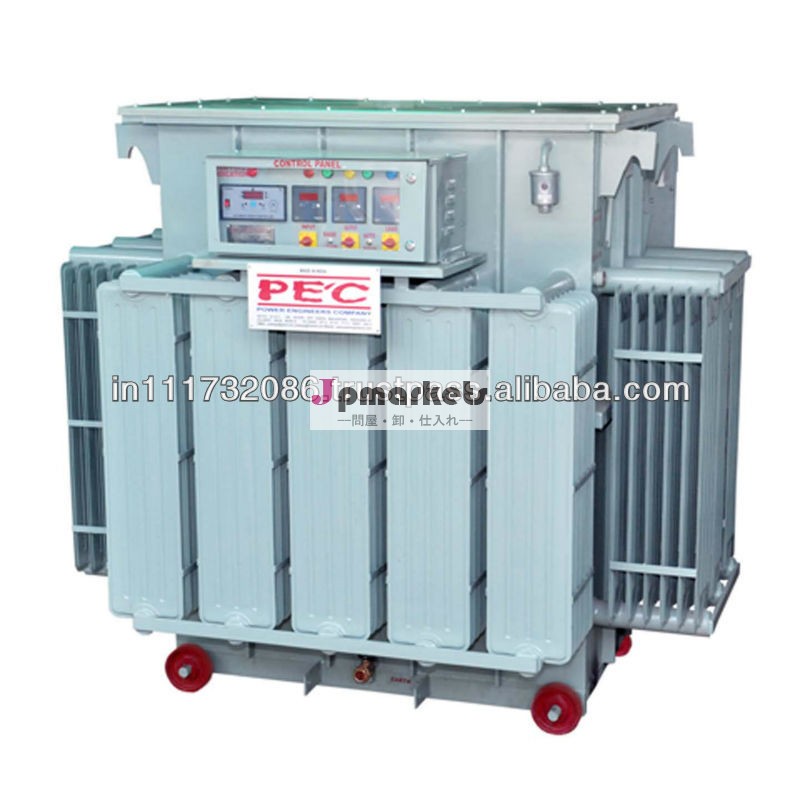

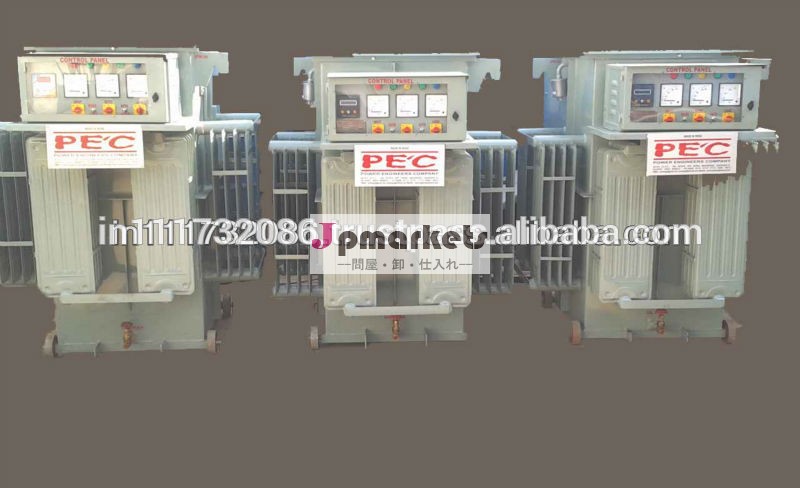

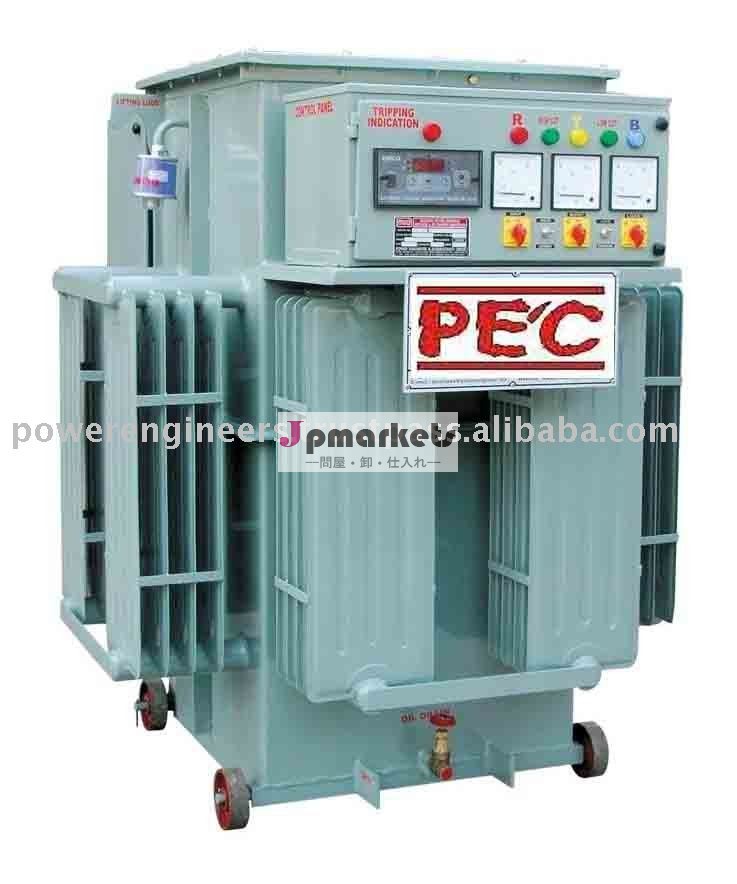

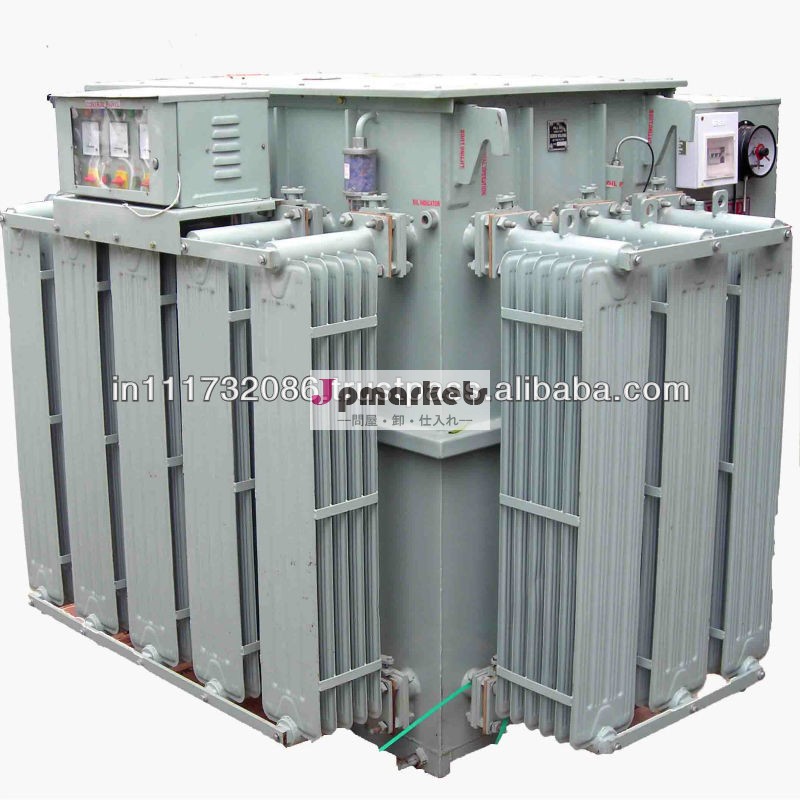

VOLTAGE STABILIZER UP TO 7000 KVA , 3 PHASE , 50/60 HZ. ISO , CE, IEC, D&B
All electrical equipments/ machines are designed to operate at rated voltage. Power is supplied to the consumers at these standards rating but due to technical limits & commercial inbiabilities it is not possible to supply power at rating and a wide spectrum of voltage variation is witnessed. The problem is more acute wher cluster of industries exists which causes considerable losses, directly due to over drawing of current and indirectly due to breakdown in Machines, interruption in production process and it's bad effects on quality products.
FOR INDUSTRIAL UNITS RUNNING ROUND THE CLOCK: The industrial units running round the clock, usually face the problem of low and high voltage. 90% of industrial load is of motors. Electric motors draw considerably high current at low & high voltage. This higher current affects the electrical motors (particularly smaller capacity motors upto 7.5 H.P.) in three ways.
- Higher current produces higher losses in electrical motors which causes premature failure of winding.
- These higher losses of electric motors also increase the losses of cables, switches, transformers and other associated equipments.
- For smooth continuous operation of motors, overload relays are usually set at 20% higher setting.
All electrical equipments & machines are designed and manufactured in India at 400 volts (Three Phase) / 230 volts (Single Phase). Power is supplied to the consumers at these standards rating, but due to technical limits & commercial inbiabilities it is not possible to supply power at the above mentioned rating and a wide spectrum of voltage variation is witnessed. The problem is more acute wher cluster of industries exists which causes considerable losses, directly due to over drawing of current and indirectly due to breakdown in Machines, interruption in production process and it's bad effects on quality of products.
Demand of power is progressively increasing over the years. To meet-up this demand, the Electricity Boards and other Power utilities had to increase their Transmission and Distribution (T & D) network. Though there has been some investments in power generation, but a gap between power are not only incapable of carrying additional power, but also forced to have line losses through lengthy feeders, causing alarming voltage fluctuation at consumer end.
This low/high voltage is applied to all electrical machines like Transformers, Motors etc., hence causing loss in substantial electrical energy, besides damage to the equipments. This compelled is conscious for Conservation of Energy, as Power Tariff is ever increasing.
In addition with this, low/high voltage is also causing "Low Power Factor". Since "Capacitors Bank" installed by the desired level. Therefore, consumers only are penalized to pay compensation, even without utilizing the power.
BENEFITS OF INSTALLING AUTOMATIC VOLTAGE ConTROLLER ON LIGHTING LOAD
By maintaining rated voltage through Automatic Voltage Controller for Lighting Load there will be definite saving in power bill & reduction in failure rate of lighting equipments. Higher the input voltage - more will be the savings.
