製品情報

原産地: 中国(本土)	銘柄: skeda	モデル番号: Sk-ll-501r
サイズ: 120195mm	精密: ±0.75mm/5m	波長: または635nm650nmの
作動距離:: 約。 屋内15m半径、 50m+モーション検知機能付きマイク

包装

包装: アルミボックス/plasticbox/カートンボックス/木製パレット

仕様

重力振り子1と磁気湿ったセルフ- レベリング2高精度3アラーム自動的に4マシンのメインの部分に自社工場

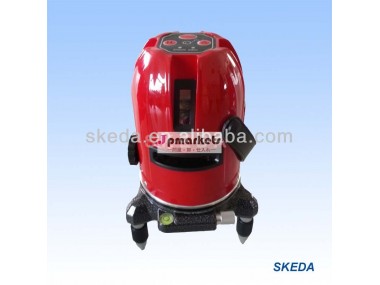

4V1H Cross Line Laser Level



* With gravity pendulum and magnetic damp self-leveling, easy operation, highly trustiness.



* With laser diode wavelength 635nm for vertical and horizontal line, 650nm for plumb down point,

  highly visible and focused laser beams.



* It builds two vertical lines, one horizontal line and plumb down point



* With fine adjustment for convenient working



* With indoor & outdoor switch function



* Have a wide leveling range.



* Rotating fine adjustment mechanism and the limb 360° allow to find objects precisely.



* Laser level alarms by twinkle laser lines automatically and doesn’t allow doing

  the measurements,When the instrument inclines more than ±2.5°



Specifications:



Vertical & Horizontal Accuracy:	±0.75mm/5m
Orthogonal Accuracy:	90°±30”
Plumb Down Point Accuracy:	±1mm/5m
Self-Leveling Range:	Approx ±2.5°
Working Distance:	Approx radius 15m indoor, increasing to 50m+ with detector
Emit Angle:	>=120°
Laser Wavelength:	635nm x 3 Laser diodes
Laser Standard:	Class II (<1MW)
Working Temperature:	-10°C ~ +50°C
Power:	DC4.5V ( 3 section of AA Alkaline batteries), rechargeable function and lithium battery optional.
Operate Time:	Approx 12 hours
Weight:	1.3kg (with batteries)
Color:	Any color available as per color code provided.



Styles Optional:
