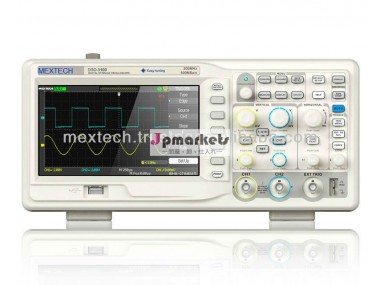

100 MHz DSO with calored display 1Gsa/Sec sampling rate with USB PC Interface cable and software with USB device & host.
Features and Benefits:
Up to 100MHz Bandwidth 1GSa/s sample rate 7''TFT-LCD display, 8*18 grids
Channels: 2CH+1EXT
Memory Depth: 40Kpts, 5Kpts/CH (SDS1202CNL)
6 digits hardware frequency counter, real time counting display
Support SCPI programming command control
Interface: USB Device, USB Host, RS-232, Pass/Fail
Unique digital filter and data recorder function
Embedded 12 languages, online help, one key storing and one key printing
Technical Parameters | |
Model/Index | DSO-5100 |
Bandwidth | 100MHZ |
Channel | 2 channels+1 ext trig |
Real Time Sampling | 500MSa/s |
Equivalent Sampling Rate | 50GSa/s |
Memory Depth | 32k |
Rise time | <3.5ns |
Input Impedance | 1MΩ||17Pf |
Time base range | 2.5ns/div-50s/div |
Scan- 100ms-50s/div | |
Vertical Sensitivity | 2mv-5v/div |
Vertical Resolution | 8bit |
Display | 7"(178mm) color TFT(480*234) LCDv |
CHARACTERISTIC:
The highest Single real-time sampling rate can be up to 500MHzsa/s; Equivalent sampling rate is up to 50GSa/s.
Memory Depth: 32Kpts, 5Kpts/CH
Trigger types: Edge, Pulse Width, Video, Slope, Alternative
Unique Digital Filter function and Waveform recorder function
Support Pass/Fail function.
Thirty two parameters Auto measure function.
Save/recall types: Setups, Waveforms, CSV file, Picture.
Support Multilingual On-line help system
Waveform Intensity and Grid Brightness can be adjusted.
Support twelve types Language
Standard Configuration Port:
USB Host: Support USB flash driver save/recall function and updat firmware;
USB Device: Support PictBridge compatible printer and support PC remote control;
RS232;
Model/Index | The Specifications Of DSO-5100 | |
Digital filter | High pass, Low pass, Band pass, Band Stop | |
Input coupling | DC, AC, GND | |
Input Max voltage | ±400V(DC+AC Pk-Pk), CAT I, CAT II | |
Trigger Types | Edge, Pulse, Video, Slope, Alternative | |
Trigger Modes | Auto, Normal, Single | |
Trigger Source | CH1,CH2,Ext,Ext/5,AC Line | |
Save/Recall | Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function | |
Internal storage | 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms | |
External storage | Bitmap save, CSV save, Waveform save, Setting save | |
Sample Types | Real Time, Equivalent Time | |
PC software | Can through the computer remote control oscilloscope, extraction waveform analysis data | |
Math | +,-,*,Invert | |
FFT | Window: Hanning,Hanmming,Blackman,Rectangular | |
Sampling Points: 1024 points | ||
XY Mode | Phase Error- ±3 degrees Support the sampling rate : 5KSa/s~1GSa/s (in a 1-2-5 sequence) | |
Display Model | Main, Window, Window Zoom, Roll, X-Y | |
Menu Display | 2Sec, 5Sec, 10Sec, 20Sec, Infinite | |
Display Language | Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, Italian | |
Power Source Voltage | 100-240VAC,47HZ-440HZ,50VA Max | |
Connection | USB Host- Support USB flash drive storage USB Device- Support PictBridge compatible printers and PC Remote control RS-232-Support PictBridge compatible printers and PC Remote control Pass/Fail Interface Module | |
Accessories | (1:1,10:1)Problex2, EasyScope3.0 Computer Software System, Power Cord, USB cable, User Manual, Easy DsoLib software package | |
Remark | With original source seamless connection, form signal collection, produce integration system | |
