製品情報
適用: 産業 | 厚さ: 0.025mm-1mm | 幅: 0.15~1000mm |
長さ: 顧客の条件によって | 等級: 純粋なチタニウムおよびチタニウムは合金になる | Ti (min): 99.6% |
原産地: 中国(本土) | 銘柄: 洪華 | モデル番号: HHチタニウムのストリップ |
標準: ASTM B265、AMS 4911の魚精9046、ASTM F67、ASTM F136 | 色: siver |
包装
包装: 合板ケースと泡が並んでまたはクライアントごととして要件 |
仕様
1.材料: gr1,gr2,gr3,gr5,gr7,gr9,gr12、 gr232.標準: astmb265、 ams4911、 mil- t- 90463.thicknss: 0.025~1mm4.moq: 10kg

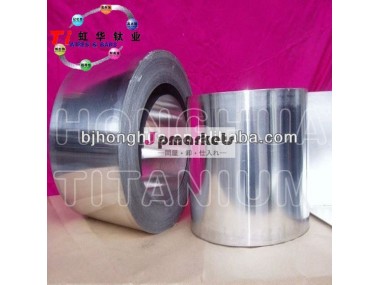

HONG HUA TITANIUM STRIP
1.Material: Pure titanium and titanium alloy
2.Standard: ASTM B265、AMS 4911、 MIL-T- 9046
3. サイズ: thickness*width*length
厚さ: 0.025mm-0.7mm
幅: 0.025mm-0.15mm*180mm*L
0.2mm-0.3mm*300mm*L
0.3mm-0.7mm*480mm*L
1.0mm-100mm*1000mm*2000mm
4. Production method : Cold rolling and fully annealed condition
5. Test & Quality:
- a. ISO 9001: 2008年
- b. Mill test report Provided
- c. Third Party Inspection
6.Application: Axis machiningの standard part、 Medical electroplating equipment
conductive material
7. Chemical composition:
| N | C | H | Fe | O | Al | V | Pa | Mo | NI | チタニウム |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | balの |
8.Packing and shipping:
パッケージ: plywood case lined with foam or as per client requirements
Shipping Terms: Ocean船積み、空気船積み、 DHL、UPS、Federal Express、TNT、EMS or the other client needs.
