製品情報

条件: 新しい	温度: 部屋temperature~- 150℃	原産地: 中国(本土)
銘柄: 極低温	モデル番号: Sd-1500kg	電圧: 220v、 380v
力(W): キロワット10	次元(L*W*H): 10000*1680*1800mm	重量: キロ300
証明: Iso9001: 2008	保証: すべての生涯	提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため
冷凍容量: 毎時1500キロ	材料: 有珠山304ステンレス鋼	凍結培地は: 液体窒素
最低気温: -150c	最大冷却率: 20℃毎分	制御システム: +plcタッチスクリーン
凍結時間: 5分	証明書: Iso9001: 2008、 ce証明書	納期: 60日
パッキング: 木箱

包装

包装: 合板の例

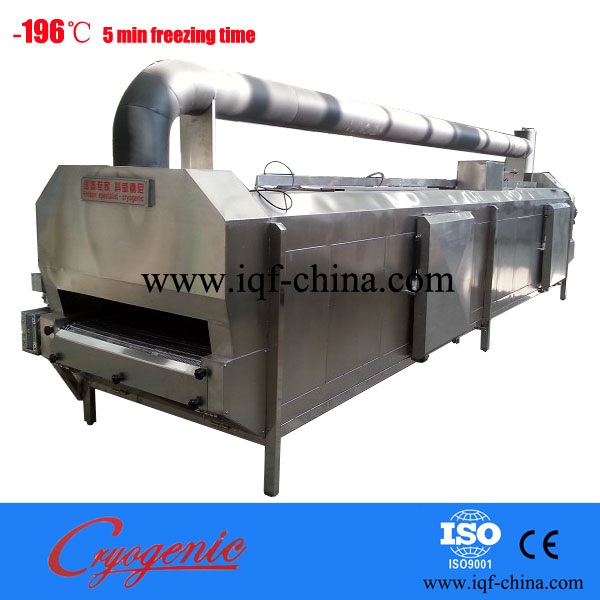

 liquid nitrogen  tunnel quick freezing equipment /    tunnel quick  freezer  SD-1500 KG PER HOUR



   液体窒素冷凍トンネル内で凍結Product Description







Technical parameters



Working temperature------room teperature ~-150°C can be set at random

Max  Cooling rate -------≥50°C/min;

Accuracy of temperature control----±3°C;

Temperature uniformaity-----±5°C

Touch screen+PLC control mode, you will have a realtime monitoring of temperature inside. Two control system: manual and automatic, reliable and easy to operate.A PID regulator can ensure the precision;

Food grade stainless steel belt, high-test chain and wheel, hard to wear and long service time, flexible and strong. imported frequency control motor, the freezing time can be adjusted continuously, suitable for processing varous foods;

Adopting hydrolysis defrosting and electrical defrosting(optional), ensure the hygiene of the liquid nitrogen spray system, avoid bacterial growth;

Installed the high-temperature sterillization device(+121°C), ensure to kill the bacteria completely;

Adopting HACCP health safety concept, full stainless steel internal structure and palisade struture is easy to clean, maintain and manage etc, easy to operate, can completely meet the safely requirement for food.



Advantage of fast freezer,



1.High speed,about 5-10 minutes quick freezing,save time cost.



2.Environmental,nitrogenic is environmental to earth and human.It is the popular trend.



3.Low noise,like a home refrigerator.



4.Little moisture loss,improve product quality and worth.



5.Low power consumption,3 hours consume about 1 KWH.



6.Low maintenance cost,its maintenance cost of SD-50KG/H will not more than USD200 in 5 years.



7.Low operating cost, 1 ton liquid nitrogen can freeze about 3 tons product.



8.Little damage to cell tissue,as the speed is quick,so it has little damage to cell tissue,



9.Small floor space,the size of SD-50KG/H is 1130*710*850mm.



10.Easy to operate,any people can operate,



11.Low labor cost,one people can finish all the freezing work.







Application:Food,dumplings,vegetables,seafood,fish,etc.
