製品情報
| 原産地: 中国(本土) | 銘柄: SEA WAVE | モデル番号: p3 |
| 適用: POWER;CABLES | 形: ROUND;ROLLS | 材料: ZINC-PLATED |
| 次元: 6MM-51MM |
包装
| 包装: 1.WRAP FILM 2.CARTonS |
Galvanised Steel Flexible Conduit
1.Galvanised Steel Flexible Conduit
2.High quality;fine flexibility
3.water-resiatance
4.Protection of wire and cables
5.Low-price:USD0.18-3.45/meter

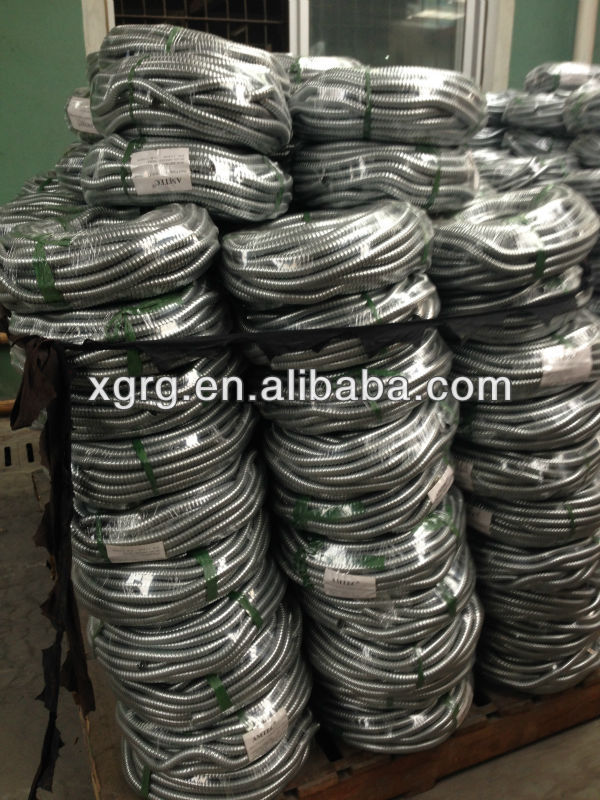

6.Package:wrap film;cartons
7.Delivery:10-15days after order placed
8.Port:FOBshanghai/ningbo
9.Payment:L/C;T/T

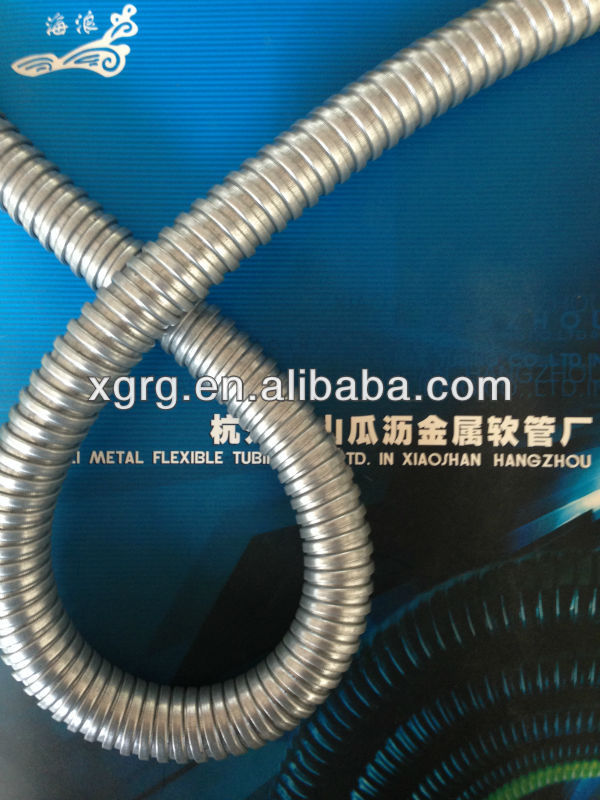

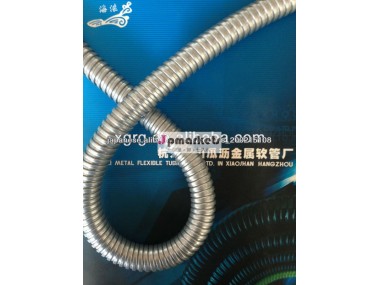

PRODUCT SHOWS:
SPE:
| Standardmm | MM I.D mm | The outside diameter and tolerance mm | pitch and tolerance mm | Minrebar mm | Minimum tensile load kgf | remark |
| 6 | 5.75 | 8.2±0.25 | 2.70±4.00 | 40 | 36 | |
| 8 | 7.70 | 11.0±0.30 | 4.00±0.40 | 45 | 48 | |
| 10 | 9.70 | 13.5±0.35 | 4.70±0.45 | 55 | 60 | |
| 12 | 11.65 | 15.5±0.35 | 4.70±0.45 | 60 | 72 | |
| 13 | 12.65 | 16.5±0.35 | 4.70±0.45 | 65 | 78 | |
| 15 | 14.65 | 19.0±0.35 | 5.70±0.45 | 80 | 90 | |
| 16 | 15.65 | 20.0±0.35 | 5.70±0.45 | 85 | 96 | |
| 19 | 18.60 | 23.3±0.40 | 6.40±0.50 | 95 | 114 | |
| 20 | 19.60 | 24.3±0.40 | 6.40±0.50 | 100 | 120 | |
| 20 | 21.55 | 27.3±0.45 | 8.70±0.50 | 105 | 132 | |
| 25 | 24.55 | 30.0±0.45 | 8.70±0.50 | 115 | 150 | |
| 32 | 31.50 | 37.0±0.50 | 10.5±0.60 | 140 | 192 | |
| 38 | 37.40 | 46.2±0.60 | 11.4±0.60 | 160 | 228 | |
| 51 | 50.00 | 59.2±1.00 | 11.4±0.60 | 190 | 306 | |
| 64 | 63.50 | 74.1±1.50 | 14.2±0.60 | 280 | 384 | |
| 75 | 73.00 | 85.1±2.00 | 14.2±0.60 | 320 | 450 | |
| 80 | 78.00 | 90.1±2.00 | 14.2±0.60 | 330 | 480 | |
| 100 | 97.00 | 110±3.00 | 14.2±0.60 | 380 | 600 |
