製品情報
| 条件: 新しい | タイプ: 自然な循環 | 使用法: 産業 |
| 構造: 水管 | 圧力: 低圧 | 様式: 横 |
| 燃料: 石炭燃焼 | 原産地: 中国(本土) | 銘柄: xdz |
| モデル番号: Dzl4-1.25 | 出力: 蒸気 | 次元(L*W*H): 6630*2950*3400( mm) |
| 重量: 25.5t | 証明: iso9001 | 総電力: キロワット38.3 |
包装
| 包装: 輸出パッキング |
仕様
高品質の石炭焚き蒸気ボイラ1.水管・火管2.水平方向および垂直型タイプ3.大容量

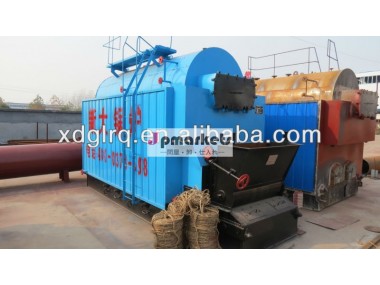

中国が作った高品質の石炭火力蒸気boiler
dzlシリーズ好きなお客さまのほとんどボイラー
- Boiler characteristics
1。The arched tube plate and screw thread smoke tube Build up The boiler barrel so that the boiler has hIgh heat transfer efficiencyboosts fastStrong output and the sMoke tube is ハード to accumulate dust These Solve the problem of tube plate crack.
2。Eliminate The Stagnant water area in the bottom of the boiler barrel to improve the wAter リサイクル effect. These can pRevent The boiler barrel bottom bulge.
3。All welding combining Are processed by Large mechanical and high temperature region bundle special processing tO ensure the welding quality and service life. Easy burning and adapt to virous fuel such as : soft coal、 blind coal and バイオ燃料.
4。 Compact structure Small size、 savIng Construction investment,簡単 To install、 can run after connect the valve、 水、 electricity and pipeline。
5。安定した 操作、 easy to adjustment、 Unique design of air prevention can bank up a fire for a long time。
6。It has a function of dust reduction、 dust emission Accord to The 要件 of the state environmental protection 標準。
- Dzl series Fire and water tube boiler technical parameters
モデル | Rated evaporation (t/h) | Rated working pressure(mpa) | Nominal steam temperature(専修度であり、 c) | Boiler efficiency(%) | Combustion consumption (kg/h) | Biggest transport good size (m) |
Dzl1-1.0-aii Dzl1-1.0-aii | 1 | 0.7/1.0 | 170/184 | @・@79 | 111 | 5.2*2.1*2.9 |
Dzl2-1.25-aii Dzl2-1.6-aii | 2 | 1.25/1.6 | 193/204 | @・@79 | 219 | 5.8*2.7*3.3 |
Dzl4-1.25-aii Dzl4-1.6-aii | 4 | 1.25/1.6 | 193/204 | @・@79 | 436 | 6.6*2.9*3.4 |
Dzl6-1.25-aii Dzl6-1.6-aii | 6 | 1.25/1.6 | 193/204 | @・@80 | 652 | 7*3*3.6 |
Dzl15-1.25-aii Dzl15-1.7-aii | 10 | 1.25/1.6 | 193/204 | @・@80 | 1093 | 7.2*3.4*3.6 |
Dzl20-1.25-aii Dzl20- 1.7 - aii | 15 | 1.25/1.6 | 193/204 | @・@80 | 1640 | 9.4*3.4*3.6 |
Dzl1-1.0-aii Dzl1-1.0-aii | 20 | 1.25/1.6 | 193/204 | @・@80 | 2182 | 9.8*3.5*3.6
|
