製品情報
原産地: 中国(本土) | 銘柄: langyi | モデル番号: DLT8000 |
使用: 建築工業 |
包装
包装: フラットラックコンテナ、 ヌードパッキング、 輸送コンテナ型 |
仕様
1. 2.気密の環境保護3.を溶かすドラムをたたかれたアスファルト。 machineaaSaveの仕事の努力4.の容器のタイプによるバレル

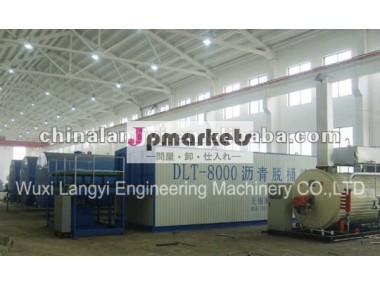

Drummed Bitumen Melting Equipment (容器)の is mainly composed by off-barrel tank、 elevator、 hydraulic thruster and electric control system. The tank is divided into tow room-the upper room and lower room; the upper room is barreled asphalt melting compartment with heating plates and pipes all around; the heading pipe and asphalt barrel exchange heat by radiation to make the asphalt away off the barrel. There are several lead rails to let the asphalt barrel in. The lower room mainly keeps on heating the asphalt out of the barrels to the pumping temperature (100° C); and then heated asphalt is pumped into the high temperature tank by the asphalt pump; 、 a higher temperature can be reached. The elevator is in cantilever construction if the heating time is extendedの lift the asphalt barrel by electric hoist、 then move horizontally and put the asphalt barrel on the lead rails; then the hydraulic thruster push the barrel into the upper room; at the same time、 at the outlet of the other end an empty barrel is pushed out. There is an oil groove on the platform at the inlet for asphalt barrels to collect the dropping asphalt
