原産地: | 中国(本土) | 電圧: | 380ボルト50 hz 3 p | 適用: | プラスチック原料 | 製品容量: | 240キログラム/時間 | 銘柄: | abelplas | モデル番号: | SRL-Z | 自動等級: | 自動 | 重量: | 2500キログラム(に応じてモード) | 力(W): | 電力( w): 42/50kw | 認証: | ce/iso | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 保証: | 一年 | 条件: | 新しい | 次元(L*W*H): | 2500ミリメートル* 2800ミリメートル* 2300ミリメートル | pvcパウダーミキサー: | 内壁厚さ: ss304、 6ミリメートル厚さ | 電気コンポーネント: | 高品質、 delix、 シーメンス、 rkc | プロセス方法: | 加熱と冷却 | 内壁: | よく磨か、 いいえスティック素材 | 冷却方法: | 水ジャケットpvc加熱と冷却ミキサー | パドル: | テストさによる動的バランス、 ランニング安定した | 混合時間: | 8-12分 | 重量: | 2200〜9800キログラム | 厚さ内壁: | 5〜6ミリメートル | アンロードメソッド: | 手または空気圧 |
包装
包装: | pvcパウダーミキサー/プラスチック樹脂混合機でパドル:プラスチックフィルム |
Product Description
PVC powder mixer/plastic resin mixing machine with paddle
Feature and function:
SRL-Z SeriesVertical Heating/Cooling Mixer Unit is widely used in mixing, drying, coloring various kinds of resin such as PVC, PP, PE. They can also be used in dryness of ABS and polycarbonate, and mixing hydroxybenzene, aldehyde resin.
Vertical Heating/Cooling Mixer Unit consists of one hot mixer and one cooling mixer. The materials from hot mixer get into the cooling mixer automatically to be cooled, so remained gas is eliminated, and agglomeration is avoided.
Absorbing advanced foreign technology and PLC control system, we designed SRL-Z series heating/cooling mixer unit, which offers high automatic level, good mixing effetc, complete function, compact structure, and perfect appearance.Vertical Heatting/Cooling Mixer Unit is widely used in mixing, drying and coloring various plastics.
Main Technical parameter:
SRL-Z | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool |
Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1250 | 800/1600 |
Effective capacity (L) | 65/130 | 150/320 | 225/380 | 330/750 | 600/1050 |
Stirring speed (RPM) | 650?/1300/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
Mixing time (Min.) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor power (KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |

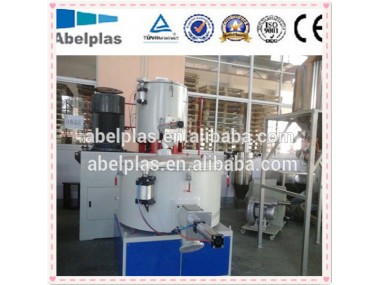

Machine Photos
