| 原産地: | 中国(本土) | 銘柄: | テクノ | 適用: | 原料 | モデル番号: | shrシリーズ | 条件: | 新しい | 認証: | Ce/i so | 処理材料: | pvc、 pe、 pp | 混合容積: | 10l-1500l | 速度: | 倍速またはインバータの速度 | 鍋蓋ミキサー制御方式: | 電気・空気圧 | 放電法材料: | 電気・空気圧 | 必要なフィーダー: | スクリューフィーダや真空フィーダ |
包装
| 包装: | 標準耐航性のある高速ミキサー輸出パッキング |
High Speed Mixer
Description:
1. Used for the processes of compounding mixing, drying and dying as one of the most ideal equipment for the manufactures of profiles and tubes.
2. The mixer lid is double sealed and opened in the pneumatic way.
3. The electric control system adopts RKC, Siemens, Mitsubishi, Omron and other famous instruments and control components to realize automatic control.
4. Equipped with pulse dust catching device. (on customer's option).
5. Both the blades and belt wheel have been specially treated through the balancing machine fo static and dynamic.
6. Simple loading system can also be equipped on customer's option.
Technical parameter of PVC mixer:
Model | otal volume(L) | Effective volume(L) | Motor Power(kw) | Main shaft speed(rpm) | Discharge method | Heating method |
| SHR-10 | 10 | 7 | 3 | 2000 | Manual | Self-friction or electric heating |
| SHR-25 | 25 | 18 | 5.5 | 1750 | ||
| SHR-50 | 50 | 35 | 7/11 | 750/1500 | Pneumatic | |
| SHR-100 | 100 | 70 | 11/22 | 650/1300 | ||
| SHR-200 | 200 | 140 | 30/42 | 550/1100 | ||
| SHR-300 | 300 | 210 | 40/55 | 475/950 | ||
| SHR-500 | 500 | 350 | 55/75 | 430/860 | ||
| SHR-800 | 800 | 560 | 83/110 | 370/740 | ||
| SHR-1000 | 1000 | 700 | 110/160 | 320/640 |

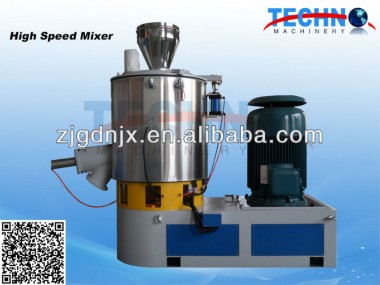

Pictures of equipment:
