原産地: | 中国(本土) | 銘柄: | lianshun | 条件: | 新しい | モデル番号: | GL-280 | 保証: | 1年 | 認証: | ce sgs iso9001: 2008 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アプリケーション: | プラスチックドライヤー | 電圧: | 380ボルト50 hz | 重量: | 2800kgs | 容量: | 350-600キログラム/時間 | ギアボックス: | 75hp | 比: | 10:1 | plc: | 三菱 | メイン電源: | 45kw | 市: | 家港 | 外形寸法(l *ワット* h): | 2メートル* 0.8メートル* 2.2メートル |

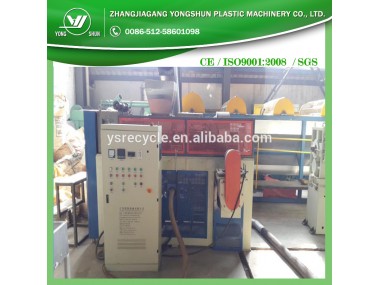

GL-280 extruding dryer with good quality
Description
Plastic film dewatering extruder machine is used for dewatering drying and pelletizing washed PE LDPE HDPE PVC film/ PP woven bags. After plastic film dewatering extruder machine , the final product is small plastic pellet(the moisture ≤1%) can put into extruder directly. plastic film dewatering extruder machine save 3 machines after washing line compare with the traditional recycling line. Save one dewatering machine,one drying system,and one agglomerator. It can save more than 100kw/h for one line. So this plastic film dewatering extruder machine is a economical and necessary machine for the PP PE recycling pelletizing line.
Working principle: Equiped with the special high quality alloy conical screw. Dewatering and drying the washed film scrap by the strong press and squeezing power. Then agglomerating the film scrap by the self-friction heat. The heating mould equiped with high speed cutting blade, so the size of the final pellet is customized
Features
1.This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;
2. It is equipped with an electric control cabinet, feeder mouth is easy to control the drying effect;
3. This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past.
4. Instead of the dewatering machine, hot blower in the recycling line.
5. Easy to operate, drying effect can reach to 97%-98%.
specification | ||
Model | GL-280 | GL-380 |
Dimension(mm) | 2780*1100*1800 | 3500*1250*2550 |
Motor power(kw) | 30-90 | 75-110 |
Quantity of cutting blade | 4 pcs | 4 pcs |
Screw diameter(mm) | 280 | 320 |
Discharging water | From the bottom | From the bottom |
Discharging diameter(mm) | 15(customized) | 15(customized) |
Pelletizing power(kw) | 2.2 | 2.2 |
Blower power(kw) | 3 | 3 |
Capacity | 300-500kg/h | 500-800kg/h |
Moisture | 1-3% | 1-3% |
Weight(kg) | 2800 | 4000 |
