| 電圧: | 380ボルト/ 50 ｈｚ | 原産地: | 中国(本土) | 銘柄: | cgy | 条件: | 新しい | モデル番号: | XLB-1600 * 8500。 | 重量: | キログラム | 力(W): | kw | タイプ: | 加硫装置 | 保証: | 2年 | 認証: | ce/iso9001/sgs | 次元(L*W*H): | ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | ゴム板厚: | 60ミリメートル/ 80ミリメートル |
包装
| 包装: | 標準的なパッキングまたは顧客の要求として |
Specifications

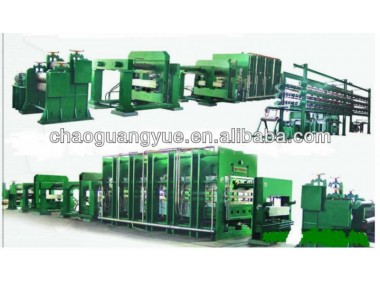

Rubber Conveyor Belt Making Machine
1.Curing press is mainly use to make all size of rubber belt.
2. High production efficiency, low mold-locking speed, protect mold.
3. Less energy consumption, low noise, without oil spilling or off pressure.
4. Reliable structure, easy to be operated.
5. Automatic PLC operation system.
Rubber Conveyor Belt Making Machine
Model | XLB-1100*5700 | XLB-1400*5700 | XLB-1400*10000 | XLB-1600*8500 | XLB-1600*10000 | XLB-2000*10000 |
Plate size | 1100*5700 | 1400*5700 | 1400*10000 | 1600*8500 | 1600*10000 | 2000*10000 |
Total pressure | 17.55MN | 25.00MN | 49.00MN | 47.60MN | 56.00MN | 70.00MN |
Plate pressure | 2.8 Mpa | 3.13 Mpa | 3.5 Mpa | 3.5 Mpa | 3.5 Mpa | 3.5 Mpa |
Diameter of piston | 500 mm | 360 mm | 450 mm | 500 mm | 450 mm | 600 mm |
Piston number | 5 | 10 | 20 | 14 | 18 | 16 |
Piston stroke | 520 mm | 400 mm | 300 mm | 300 mm | 400 mm | 300 mm |
Working layer | 2 | 2 | 1 | 1 | 2 | 1 |
Clamping force | 0.50 | 0.72 | 0.90 | 0.6 | 1.20 | 1.20 |
Drawing force | 0.40 | 0.60 | 0.80 | 0.5 | 1.10 | 1.00 |
Steam pressure | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa |
Cooling pressure | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa |
Operation system | PLC | PLC | PLC | PLC | PLC | PLC |
Application | nylon rope belt conveyor, PVG/fabric such as core parallel | |||||
Production process:
Spindle rack ——Tension station——Pendulum moving device——Make-up carriage——The cloth coiling/back to pull open with the guide born——Guide roller group——Front entrap stretching device——Front demould device——Main vulcanizer——Rear demould device——Centre entrap device——Patching vulcanizer——Multifunctional drawstring device——Hydraulic cutting machine——Deflection centering counting device——Double roller side wall and rewinding packaging machine.
