| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | 新城yiming | 条件: | 新しい | モデル番号: | XJ-65 | 重量: | 1200キログラム | 力(W): | 7.5kw | タイプ: | ゴム製押出機 | 保証: | 3年 | 認証: | iso9001 & ce & sgs | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | オプション |
包装
| 包装: | 木製ケース/防水布製品こと が応じ て パック する顧客の要求! |
Rubber extruder machinery is one of the most widely used important equipments. It is mainly used in tire tread, gaskets, tape, and other rubber extrusion. It is energy saving, high productivity , good plasitcization and refined glue quality characteristic.
Usage:
For profiling of extrudand,rubber covering of filter cable of rubber compound,rubber covering of press and tinsel,etc.
Features:
The machine is heat-feed and single screw extruder.The rotation speed could be changed. With the changing of headpiece,we can get different and rubber-covering of press plate of semi-product for constant outline, so the machine has many uses.
Technical Parameters:
Type | XJ-65 |
Forms of screw andscrew thread | Double-head equaldepth convergent type |
Screw diameter(mm) | 65 |
Length-diameter ratioof screw(L/D) | 4 |
Rotary speed of screw(r/min) | 5.2-52 |
Motor power(kw) | Electromagnetic speed 7.5kw |
Production capacity(kg) | 50-80 |
Steam pressure | 0.2-0.3 |
Cooling water pressure | 0.2-0.3 |
Weight(kg) | 1200 |

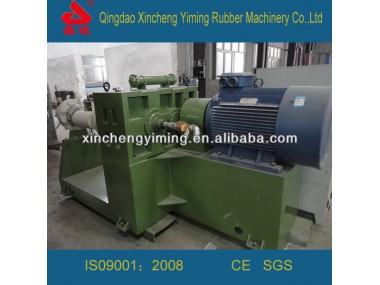

Product Details Show:
If you have any questions, please feel free to contact me.
