| 電圧: | 380 | 原産地: | 中国(本土) | 銘柄: | ダブル象 | 条件: | 新しい | モデル番号: | xy | 重量: | から11 tに150 t | 力(W): | から37kwに400 kw | 保証: | 1年 | 認証: | ce、ul | 次元(L*W*H): | から5600*1410*2385に7900*4500*5680 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アプリケーション: | 三ロールスロイスカレンダー |
包装
| 包装: | woddenケースや顧客の要件に応じて。 |

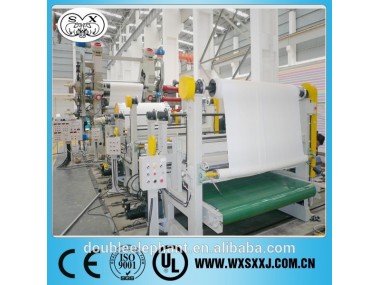

510*1600mm three rolls calender machine to process rubber sheet and adhibit sheet
Product DescriptionApplication
This calender is mainly used for single-face one continuous coating rubber sheet of cord thread,
fabric, other woven material, and calendering pure rubber sheet for OTR tire inner liner.
Structure features
1. Roll is made of chilled cast iron alloy, cold-grinding surface, hard and wearable; drilled on roll
circumference, getting good heating and cooling effects.
2. Single motor drives each calendaring roll, at two ends of which have friction gears,
may regulate speed ratio by pulling key so as to meeting different processes.
3. For guaranteeing calendered product accuracy , the rolls are equipped with axis cross device,
pull-back device and pre-bending device.
4. Having emergency stop on machine for protecting operators and equipment.
5. DC motor drive ,taking digital speed regulating device as driver, to guarantee the stability
of output torque.
Specification & Type | Roll Dia.× Length mm) | Mid-roll Liner Speed (m/min) | Min.thickness (mm) | Calendering width (mm) | Motor powe (KW) | Dimension (L×W×H(mm) | Weight (t) |
XY-3I1120 | 360×1120 | 7.5~22.5 | ≥0.20 | 900 | 45 | 6050×1500×2240 | 11.6 |
XY-3L1120 | 360×1120 | 2~20 | ≥0.20 | 900 | 37 | 5500×1700×2300 | 11.7 |
XY-3F1400 | 400×1400 | 8.8~26.39 | ≥0.20 | 1200 | 55 | 5600×1410×2385 | 15 |
XY-3F1450 | 450×1450 | 2.5~25 | ≥0.20 | 1225 | 75 | 5850×1920×2870 | 22 |
XY-3F1600 | 510×1600 | 2.5~25 | ≥0.20 | 1375 | 90 | 6460×2500×3120 | 27 |
XY-3F1520 | 560×1520 | 1.5~15 | ≥0.20 | 1200 | 75 | 6730×2130×3595 | 35 |
XY-3F1830 | 610×1730 | 4.5~45 | ≥0.20 | 1500 | 55×3 | 8040×2700×4570 | 48 |
XY-3F2030 | 660×2030 | 3~35 | ≥0.20 | 1800 | 250 | 9000×2800×4850 | 86 |
XY-3F2540 | 810×2540 | 3~30 | ≥0.20 | 2300 | 400 | 10195×3340×5820 | 102 |
XY-3F3400 | 900×3400 | 0.54~5.4 | ≥0.20 | 3200 | 160 | 7900×4500×5680 | 150 |
