| 原産地: | 中国(本土) | 銘柄: | zfsj | モデル番号: | Sjnx- 70 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 状態: | 新しい | 製品タイプ: | プラスチック機械 | 処理タイプ: | 押出し | 認証: | ce・iso9001 | 管材: | pe | 生産速度: | 120m/min | 直径: | 12mm、 16mm、 20mm | スクリューデザイン: | 単軸 | インストールの力: | 100キロワット | 全体的なた次元: | 36m2.7m××3mの |
包装
| 包装: | 木箱、 また、 顧客の要求として行うことができ。 |
Configuration
1. Flat dripper Auto identifying unit
2. Flat dripper Auto conveyance unit
3. Single screw extruder unit
4. Vacuum calibration unit
5. Second water cooling unit
6. Rubber caterpillar dragger
7. Mechanical drilling unit ( detection unit can be supplied on demands)
8. Belt haul-off unit and Automatic winder
Main technical function and parameter
Item | SJNX-70 |
Pipe diameter | Φ 12mm , Φ 16mm , Φ 20mm , |
Pipe wall thickness | 0.2 -0.6mm |
Size of screw extruder | Φ 70mm /33:1 |
Production speed | 120m /min |
Dripper identifying method | single tray identifying |
Dripper identifying speed | 800 pieces/min |
Line direction | From right to left |
Deipper spaces | 200, 300, 400, 500, 1000mm |
Drilling speed | 800 holes/min |
Pipe packing length | 500m , 1000m , 1500, 2000m |
Total installed power | 120 kw |
Size of the line | 36m x 3m x 2.7m |
Total line weight | about 6.5 ton |

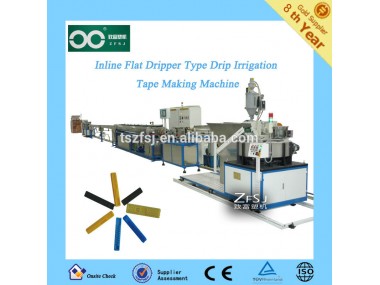

Application:to produce water saving drip irrigation tape with inline flat emitter.
Production Line Characteristics
1. Centralized computer control, which having the characteristics of stable production process, easy operation, continuous production of the drip irrigation tape.
2. Continuously and Synchronously Processing of Emitters feeding, selecting, transferring, storage, quantity-fixing supply and mosaic. Transfer speed can be adjusted according to the production speed of drip irrigation tape, ensuring that plastic emitters can be transferred to the bonding place of drip tape accurately then bond them firmly.
3. Unique structure, special material and advanced processing crafts of screw bolt of extruder, die head ,and dimension-fixing cylinder makes raw materials extruded and plasticized evenly, pipe-wall smooth and diameter fixed stable.
4. Vacuum water tank and cooling water tank are made of stainless steel. Vacuum degree in vacuum water tank can be adjusted flexibly and accurately, and can be kept stable.
5. Strong drying equipment can solve effectively water carrying in the high-speed production.
6. Double haul-off machines controlled by frequency-variable technology, with steady speed which can be adjusted synchronously according to production speed. And the line has low noise.
7. Mechanical method with PLC controlled drilling dripping holes. Meanwhile, it is equipped with residue recycling system. It has characteristics of high speed of hole-drilling and no residue left.
8. Double- station rolling method, it has the functions of automatic stop and automatic alarm according to length-fixing.
