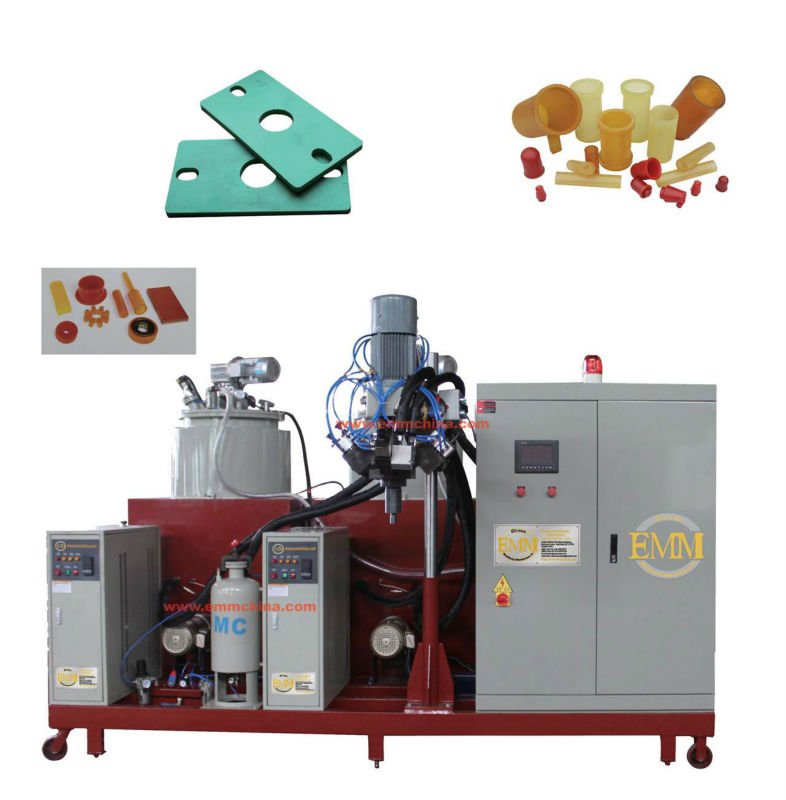

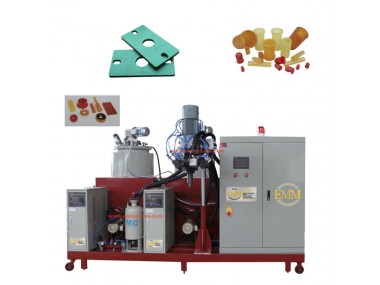

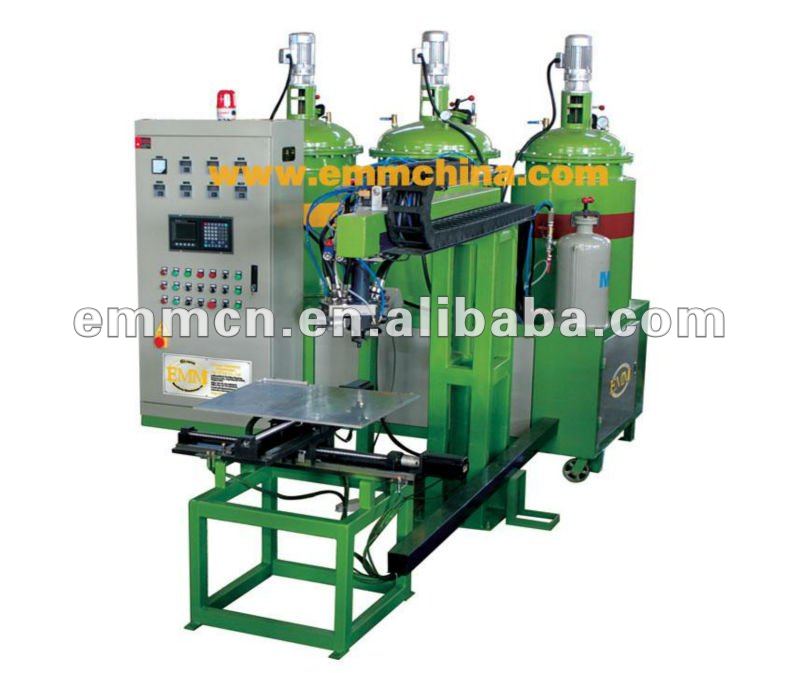

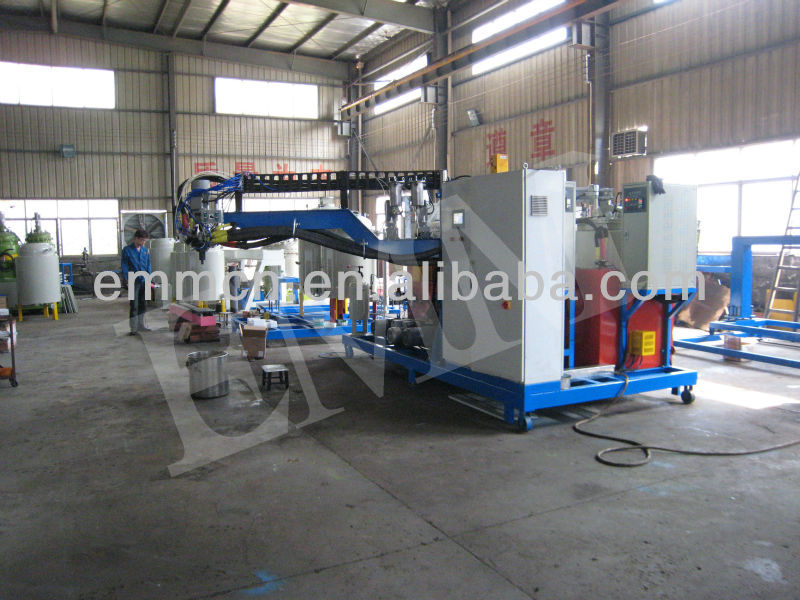

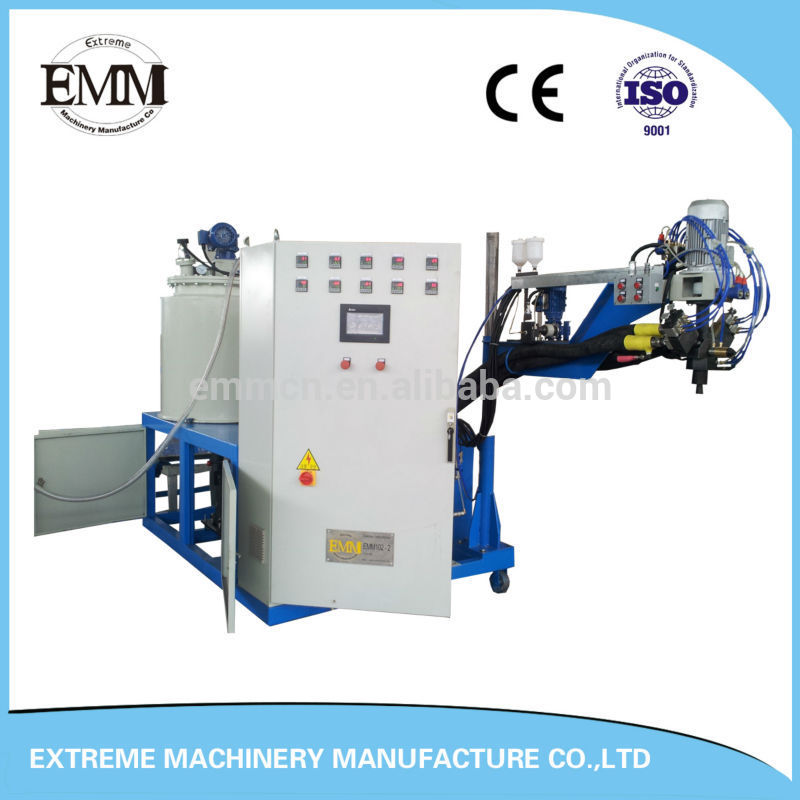

EMM091-4 Three Components Elastomer Pouring Machine/polyurethane molding machine
- Introduction
EMM091 series elastomer casting machine, a new kind of machine, develop on the base of EMM087 series, has reached to the world level. EMM091series elastomer casting machine suits pours precisely two to three component PU systems,such as a prepolymer add a high melting point of the chain extender (such as MBOCA); a prepolymer plus a chain extender diols (found in MDI cast elastomer systems) or a polyol, a diisocyanate and a chain extender (one-step casting MDI, MDQ system elastomers ).
2. Applicable Viscosity
A (Polyols or prepolymer ): ~4000mpa.s (45°C-100°C)
B (MDI/MDQ or prepolymer ): ~4000mpa.s (45°C-100°C)
C (when a chain extender alcohols): ~500mpa.s (45°C)
C (when MOCA): 10~1000mpa.s(130°C)
3. Pouring output
Output: 5000-25000g/min
The pouring out will be different as result of raw materials’ density and mixing proportion.
As the same time, the standard three-component casting machine could increase additional six injection head, according to the product needs to add color, add catalyst (customers can choose according to their own needs). The casting machine is controlled by intelligent computer.
4. Performace index
4.1 Material Tanks (A,B ,Ctank)
Material: stainless steel AISI 304
The max. capacity: A,B 200L, C 60L
The safe capacity: A,B 160L, C 40L
The max pressure: 0.45MPa
The heating system: hot air circulation heating
Temperature measurement system: PT100
The max. temperature: 130°C
Temperature error: control +/- 1.5°C
Stirrer: Stainless steel anchor impeller, The maximum close to the tank wall
Stirring speed: adjustable speed,9-90rpm, scope to set in accordance with the nature of raw materials.
Windows: through a glass eyepiece observation tank.
Electronic sensors level of raw materials: min. liquid level control.
Auxiliary system: Vacuum system
Nitrogen filling system
Vacuum meter
Pressure safety valve
Artificial additives material system
Vacuum system to draw raw materials
Unloading systems
Silica gel dry filtration system
Each material can is installed in a separate incubator, hot air circulation heat, can ensure the tank temperature prior + / - 1.5°C. Impeller anchor type design can ensure material fully mixing. This design can avoid some of the raw material such as: excessive heating effect.
4.2 Pipeline
Material: PTFE/SASI strengthen stainless steel hoses
The heating system: oil heating
The max. pressure: 20 bar
The max. Temperature: 130°C
Temperature error: control +/- 1°C
These high flexibility insulation pipe can ensure the consistency of temperature in the whole pipeline.
——
4.3 Metering system (A,B,C component)
Metering pump: gear pump import from Germany Barmag
The output of metering pump is designed by customer’s demands.
Filter: nets type filter, stainless steel AISI 304
Motor: converter in accordance with tachometer and motor to control the flow speed.
| A | B | C | Color 1 | Color 2 |
Quantity | 1 | 1 | 1 | 1 | 1 |
Metering pump type | 40cc/(Barmag) | 40cc/(Barmag) | 6cc (Barmag) | 0.6CC/ (Barmag) | 0.6cc/ (Barmag) |
Shift motor power | 2.2 kw | 2.2 kw | 0.75kw | 0.37kw | 0.37kw |
Speed(Rpm) | 20-200 | 20-200 | 20-200 | 20-200 | 20-200 |
pump sealing lubricating | DOP | DOP | DOP | DOP | DOP |
Flowmeter | VSED 58809 | VSED 58809 | VSE |
|
|
The measurement system and filter in ovens, insulation material below. This design method can be pressurized tank in the wrong circumstances, to maintain sustained and steady output of raw materials; and keeping the consistency of the temperature. Computer will be set to control output of the wheel pump. This control system can ensure that the output of raw materials in the setting value of + / - 0.3% .
4.4 Mixing head
Material: high strength alloy
Speed: 600~6000 rpm/min
The heating system: independent electrical heating
Mixing system: dynamic mixed-head match with the motor
Temperature measurement system: PT100 thermal sensor
Temperature error: control +/- 1°C
Motor: electric motors, controlled by a frequency converter
EMM uniquely mixing head design has the following features: it can guarantee the accuracy of speed, and at a very low speed of the mixed quality of raw materials; so that the prepolymer does not cause pressure damage to properties. Made of special alloy mechanical seal system made the mixing head also could work in the high anti-pressure, while ensuring the reliability of mixed system. Unique design of the mixing chamber can be cleaned to ensure easy-to-use and thoroughness.
4.5 Injection head
Material: high strength alloy
Injection system: injection pressure independent of each other
The heating system: independent electrical heating
Temperature measurement system: PT100 thermal sensor
Temperature error: control +/- 1°C
Each injection pressure control is independent of each other, can be adjust alone pressure casting and recycling pressure. The loop injection pressure will be tested by the head of sensor, and with pressure adjusting device. This control method can avoid every time before pouring out some materials must be mixed and the uneven.
4.6 Color/additive head injection (at most three kinds directly added)
Material: high-strength alloy
Injection way: independent air pressure injection
Pigment injection unit (PDI) used to infuse liquid pigment (100-2000 mpa. S) into the mix casting. According to the needs of the users can provide different storage tanks and metering pump.
Additive injection unit (ADI) used for into the liquid additives and catalyst directly into the mixing chamber, note in the amount adjust on the interface, easy to use. According to the needs of the users can provide different storage tanks and metering pump. In any case the user can choose up to three kinds of additives simultaneously to join
