原産地:	中国(本土)	銘柄:	UIROBOT	モデル番号:	UIM24008
ミニチュアサイズ:	42.3mm*42.3mm*13.5mm	広い供給電圧の範囲:	12 ~ 40VDC	出力電流:	4/8 A

包装

包装:	カートンの段階モーターcotroller。

step motor controllers

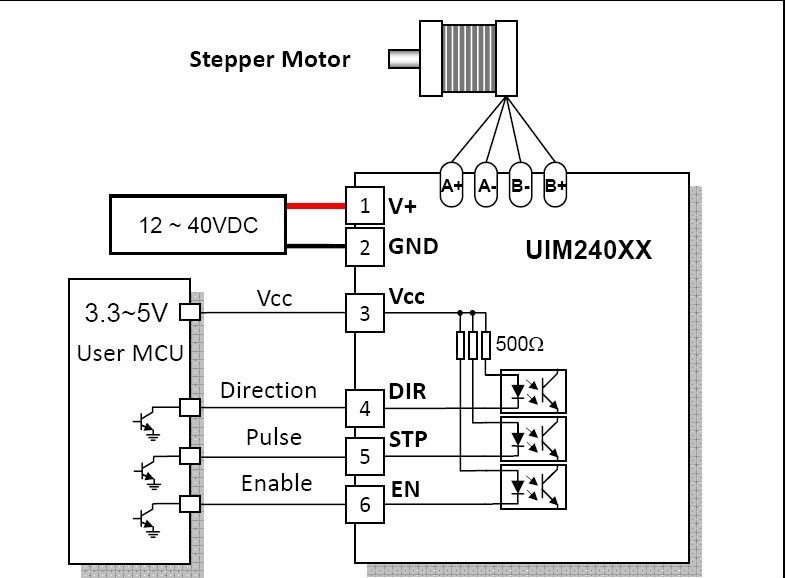

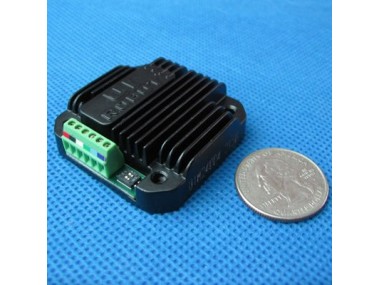

Miniature Size 42.3mm*42.3mm*13.5mmIntegrally designed to fit onto motors seamlessly, as well as work standalone10-40VDC supply, Max 8A per Phase adjustable output current, 1to16 MicrosteppingDual H-bridge with PWM constant current control,Enable/shutdown controllableOpto-isolated inputs with common anode.Die-cast aluminium enclosure Overview UIM 24008 is a miniature, high performance stepper motor driver. It can be mounted onto 86/110mm Nema34 and Nema42 stepper motor seamless through corresponding flanges. The thickness of these driver is less than 14mm, UIM24008 is capable for 3A-8A. adjustable current output. Their mixed-decay current control reduces the back-EMF effect under high speed running condition and improves the performance. Enclosures of the UIM24008 stepper motor driver is made of die-cast aluminum which provide a rugged and durable protection and improve the heat dissipation. Absolute Maximum RatingsSupply Voltage Note: Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Electrical Characteristics (Ambient Temperature Ta = 77F)Supply Voltage: 12-40V DCOutput Pahse Current: Max 8A (1)Current Control: Constant, PWM controlMicrostepping: Full-, Half-, Quarter- and 16th-step (2)Photocoupler Isolation voltage: 2500 Vrms (min)Photocoupler Input current: MAX +/- 45mANote:(1)   adjustable through on-board POT(2)   adjustable through on-board DIP switchCommunication: 3-wire, Step, Direction, and Enable signalsHandling, Storage and Size:Cooling Type: Free airWorking Environment:     Free of heavy dust, oil mist and corrosive gas                        Ambient Tempareture: -68+144F                        Humidity: Lower than 80%RH, no condensation and frost                        Vibration: 1G MaxStorage Tempareture: -68F - +257F Dimensions: 42.3mm*42.3mm*13.5mmWeight: 0.1kg
