| 原産地: | 中国(本土) | 銘柄: | deao | モデル番号: | dhbl | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 製品: | 連続、いいえ製品割り込み | プロセス: | 画面なしで変更さ停止機 | 構造: | ハードシール技術 | 主な製品材料: | 高品質合金鋼 | プラスチック処理さ: | pe、pp、pa、ペット、xps、abs、pvc、ゴム、その他など | アプリケーション: | フィルム、シーツ、パイプ、プレート、顆粒、リサイクル、など | スクリューデザイン:: | 単一のネジ、ダブル-ネジ | 保証: | 一年除く消耗部品 |
包装
| 包装: | 木製ケースまたはカスタマイズ |

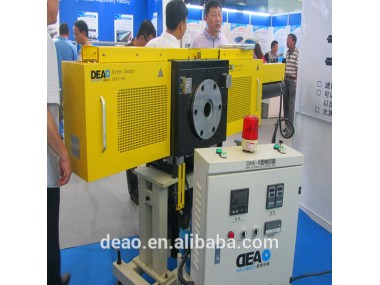

extruder filters screen for XPS screen changer
Description of extruder filters screen for XPS screen changer
The new continuous screen changer and new four-screen recycling screen changer are especially applicable to foaming plate products such as XPS, EPS, EPE and cast film. It ensures the screen changing without machine halt or production interrupt, which has been widely tested and verified in production practice.
Characteristics of extruder filters screen for XPS screen changer
1. No need to stop the working machine when changing the screen, no material explosion, noiseless, no material leakage, or production interrupt while working.
2. This screen changer (self-owned patent) is characterized by the convenience and safety to change the filtering screen with it. It is time-saving to install the filtering screen with the screen changer, and there is no need to manually disassemble the machine, adjust the para-position screen, or install the lock pact between different screens, thus the screen changing operation will be reduced by 90%.
3. Simple construction, reliable operation; Easy maintenance, lower running cost;
Application field
1. Applicable to all kinds of plastic products.
2. Applicable to the production line of chemical fiber, rubber, collosol, adhesive, coating and finishing materials and other blending agent products, used for filtration of the material mixture.
Technical Data
Type | Screen type (mm) | Heating power(kw) | Pressure (Mpa) | Output (kg/h) |
DHBL-80 | 70×70 | 3 | ≤25 | ≤250 |
DHBL-100 | 100×90 | 5.6 | ≤25 | ≤450 |
DHBL-130 | 120×110 | 6.8 | ≤25 | ≤550 |
DHBL-150 | 140×130 | 8 | ≤25 | ≤900 |
DHBL-200 | 190×170 | 10 | ≤25 | ≤1500 |
Commissioning
At the requirement of customer, seller should send technicians to install and debug the screen changer to the die at site of Buyers, Travelling expenses and accommodation fee should be borne by Buyers.
Warranty
The product's warranty date is one year. According to the contract technical parameters shall prevail, accord with the actual requirement.
