電圧: | なた- 相、 380v | 原産地: | 中国(本土) | 銘柄: | jota機械 | モデル番号: | Jt-slt-900 | 製品タイプ: | 紙スリッター巻取機 | 重量: | 2000キログラム | 力(W): | 2.2キロワット | 保証: | 1年間の保証期間 | 条件: | 新しい | 認証: | CE | 次元(L*W*H): | 2000*2200*1500mm | タイプの処理: | ペーパー切り開き、巻き戻す機械 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | タイプ: | 小さなロールに大きなロール感熱紙製造機 | コンピュータシステム: | シーメンスplc | タッチスクリーン: | 台湾から | cnc加工: | 高精度を提供する | 自動メーターカウント: | 採択された | 共時ベルト: | 問題の重複を避ける | 自動ローディングシステム: | 最大。 材料の重量1500キログラム | 伝送ローラー: | ダイナミック/静的バランスが扱わ | 空気の圧力弁: | 日本からのsmc | リレー: | 日本からオムロン |
包装
包装: | 小さなロールに大きなロール感熱紙製造機付きフレキはラッピングや輸出標準的な木製ケース。 は、 マシンと、 を供給すると私達は: 1.1年間の保証、 2.全体命技術サポート、 3.、 一連のツール、 脆弱な部分を一箱、 4.英語のメニュー、 インバータメニューおよび電気回路図。 |

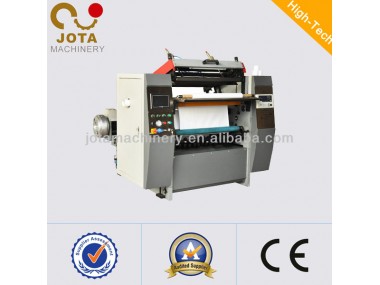

Big Roll to Small Rolls Thermal Paper Making Machine
Technical Parameter | JT-SLT-900 Big Roll to Small Rolls Thermal Paper Making Machine |
Max. Parent Web Width | 900mm |
Max. Parent Web Diameter | 1000mm |
Max. Rewinding Diameter | 200mm |
Min. Slit Width | 30mm |
Max. Machine Speed | 150m/min |
Unwinding Shaft | 3” Air Expanding Shaft |
Rewinding Shaft | 0.5”, 1”, are available (or as request) |
Voltage | Three-phase,Four-wire, 380V,50HZ |
Power | 2.2kw |
Air Supply | 0.6Mpa |
Weight | 2000KGS |
Overall Dimensions(LxWxH) | 20002200x1500mm |
Application Material: all kinds of thermal paper,including fax paper, cash register paper, ATM paper,ECG paper,medical record paper,POS paper,self adhesive trade marks, non woven cloth,films etc. | |
1). Big Roll to Small Rolls Thermal Paper Making Machine adopts Siemens PLC control system and touch screen. After we display all parameters on the monitor, it will work automatically. | |
2). It adopts Siemens inverter motor,and frequence inverter to control. | |
3). It adopts automatic loading system, controlled by a separated motor. | |
4). Big Roll to Small Rolls Thermal Paper Making Machine adopts auto tension controller to keep constant tension. | |
5). It adopts round blades to slit, and it adopts wasting materials edge trimming system. | |
6). It adopts automatic meter counter, when reaching the preset length, it will stop and alarm automatically. | |
7). All the parts are treated by CNC processing to provide high precision. | |
8). It adopts red line marking system, printing a red line at the end of paper rolls. | |
9). Big Roll to Small Rolls Thermal Paper Making Machine adopts auto tucking system to stick paper to cores automatically. |
Advantages of Jota Machinery
Certification | CE,SGS,Gold Supplier,etc. |
Testing | Big Roll to Small Rolls Thermal Paper Making Machine will be tested before delivery by professional engineers. |
Perfect After-sale System | Technicians can service overseas. |
prompt Reply | Within 24 hours. |
Yearly Production Capacity | More than 200 sets. |
MOQ | 1 set. (More than 3 sets,offer a special discount) |
Samples | For free |
Packing Details | With flexible wrapping and export standard wooden case. |
Delivery Time | Within 45 days after receipts of 30% payment,the rest 70% paid before shipping. |
Terms of Payment | T/T,L/C |
Delivery Clause | FOB Ningbo/Shanghai Port |
Please Contact Me Freely! More Details for You!
