| 適用: | 屋外、プレキャストコンクリートヤード、工場、ワークショップ | 原産地: | 中国(本土) | 銘柄: | baichuan | モデル番号: | ld | スパン: | あなたの要求として | 評価される積載量: | 1〜450 t | 最高。 持ち上がる負荷: | 450 t | 認証: | iso ce sgs | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 評価される持ち上がる時: | 100〜800Kn | 特徴: | 橋クレーン | 保証: | 1年 | 条件: | 新しい | 最高。 持ち上がる高さ: | あなたの要求として | 運用方法: | 地上制御;部屋制御 | 昇降速度: | 2.1〜15.5メートル/分 | 炭水化物走行速度: | 37.2〜27メートル/分 | トロリー旅行速度: | 42〜116.8メートル/分 | 作業システム: | a5〜a6 | 電源: | 三相。交流380ボルト50 ｈｚ | スパン: | あなたの要求として | 製品名: | 工場価格ブリッジクレーン | カラー: | 黄色。赤い。任意の色あなたが望む | マックス。ホイールローディング: | 80〜658Kn |
包装
| 包装: | クレーン標準国際パッケージ |

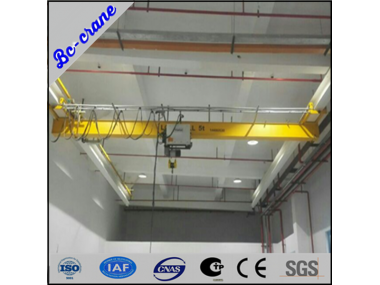

Factory price bridge crane
Introduction:
1. Factory price bridge crane is mainly composed of bridge, running gear of crane, trolley and electrical device, etc. It is divided into two working classes: A5 and A6 according to the use grade and load-up condition.
2. There are three kinds of method for entering the platform of cab: from the side, from the end and from the top. The figure is the side entrance; arrowhead A shows the end entrance; the top entrance is at the place there is no door.
3. Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the opposite side of the cab or at the same side of the cab.
4. Operation of the crane shall be finished in the cab completely.
5. The increased height of buffer of the crane, H0≤250
| Item And Brief introduction | Gantry crane, Semi gantry crane, Overhead crane, Jib crane, Electric hoist and other crane parts. |
| Components | 1. Steel structure: understructure, column and cantilever. 2. Hoisting mechanism: electric hoist with trolley traveling along the cantilever. 3. Crane rotation mechanism: rotation motor and swivel bearing. |
| Control method | Remote control or pendent line with press button. |
| Design and construction rules | All the standards which is required for the crane is the Chinese standard |
| Painting | Primer and finishing paint Color: according to your demand. Average thickness: about 100 microns |
| Power supply | 380V/50Hz or as per client's requirement |
| Motors | Nanjing Zongchang (Number 1 in China.) |
| Hoisting mechanism | CD/MD model electric hoist |
| Speed | Single speed/Dual speed |
| Manufacturing standard | All crane design and manufacturing is according to Chinese Standard but customized products are avialable. |
| Safety feature | 1. Limit switch. 2. Overload stop device for hoisting. 3. Long bearing buffer for crane traveling. 4. Power faliure backup. |
| Payment term | 30% payment in advance and the balance paid defore delivery by TT. |
| Shipping port | Shanghai bulk cargo. |
| Warranty | 12 months |
Ordering notice of price of mobile crane
about product
1.Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground ) and the span distance
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling ?
9. Driver cabine control or pendant control ?
10. How many hours work per day ?
11. Power source : 380v,50Hz,3phase or others?
about us
Established in August 2005, Baichuan Crane Co., Ltd. is a Sino-Singapore joint ventures and located in “China hoisting machinery of the township” reputation of Henan CraneIndustrial Park of Changyuan county in Henan Province, registered capital of 270 million yuan,a total investment of 500 million yuan. It covers an area of 320,000 square meters, existing staff 1700 people including high and intermediate professional technicians and management staff of 400 people .
Professional technology make excellent quality
We Don't Just sell Factory price bridge crane for factory warehouse workshop hoisting,We Build Solutions.Please never hesitate to contact us, we will be pleased to submit our offer together with our solution.
