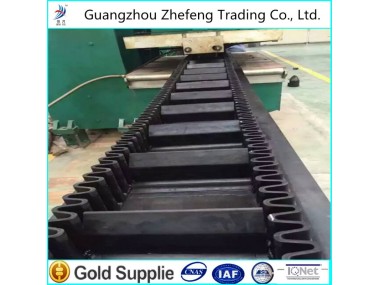

    中国サプライヤー安い側壁コンベアベルト-コンベア
    商品番号: 13447494
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 電圧: 220ボルト 銘柄: zhefeng、huaheng
    モデル番号: ご要望に応じて 力(W): 11.75 kw タイプ: 重力のコンベヤー
    材料: ゴム 構造: Incliningコンベヤー 認証: ce、rohs、asbs、iso
    提供される売り上げ後のサービス: 利用できる海外第三者サポート 積載容量: 強い 条件: 新しい
    物質的な特徴: 抵抗力があるオイル 次元(L*W*H): カスタマイズされたサイズ 素材機能: ゴム側壁コンベアベルト
    幅: 300〜2600ミリメートル 帯域幅: 300〜3000ミリメートル テクスチャの材料: ゴム、ナイロン、convas、ep
    適用する植物: 鉱業、冶金、化学、埠頭、など 生地の層: 3-10 ラバーグレード: 8mpa-25mpa
    配信の詳細:: 10-20days 原産地: 河北、中国(本土) ブランド名: zhefeng、huaheng、hengyue

    包装

    包装: 包装の詳細: 標準exportwateroof梱包木製コア、pp布、鉄バーまたはクライアント必要なパッケージ。配信の詳細: 10-20days用フィート、受けて30%預金。



    Accessories

     $keyword$



    Ordinary rubber conveyor belt

    Conveyor belt is widely used in cement, coking,coal mine,metallurgy, chemical industry, steel and other industries conveying distance is shorter, less delivery occasions. Belt conveyor in the agricultural, industrial and mining enterprises and transportation widely used in conveying a variety of bulk solids and powder materials or goods, conveyor belt can be continuous, high efficiency, high inclination conveying, safe operation of conveyor belt, easy to use, easy maintenance, low cost and to shorten the transport distance, reduce project cost, save manpower and material resources.

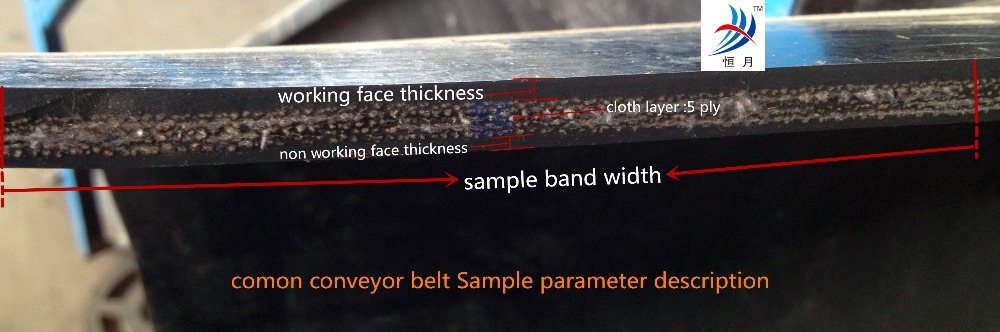

    Common sidewall conveyor belt Specification Performance



    one

    Fabric type

    Purified cotton canvas

    Washes cotton canvas

    Washes cotton canvas (to soak rubber)

    Fabric model intesity (n/mm)

    CC-55

    TCC-65

    TCT-65

    Adhesive plaster thickness(mm)

    1.4

    1.1

    1.2

    Fabric layer

    3-10

    3-8

    3-8

    Entire thickness longitudinal strength(n/mm)

    150-500

    180-480

    210-560

    Covers the rubber thickness (mm)

    up

    3.0  4.5  6.0

    3.0  4.5  6.0

    3.0  4.5  6.0

    down

    1.5  2.0  3.0

    1.5  2.0  3.0

    1.5  2.0  3.0

    Width ( mm )



    400-1600

    500-1600

    500-1600

    Reel greatest length (meter/roll)



    200

    200

    200





    two

    Band width (mm)

    Fabric layer (ply)

    Cover rubber thickness

    Working surface

    Non-working surface

    300

    3-5

    4.5  3.0 1.5

    3.0  1.5

    400

    3-6

    4.5  3.0 1.5

    3.0  1.5

    500

    3-6

    4.5  3.0 1.5

    3.0  1.5

    650

    3-6

    4.5  3.0 1.5

    3.0  1.5

    800

    3-6

    6.0  4.5  3.0  1.5

    3.0  1.5

    1000

    3-8

    6.0  4.5  3.0  1.5

    4.5  3.0  1.5

    1200

    4-10

    6.0  4.5  3.0

    4.5  3.0  1.5

    1400

    4-10

    6.0  4.5  3.0

    4.5  3.0  1.5

    1600

    4-10

    6.0  4.5  3.0

    4.5  3.0

    1800

    5-10

    6.0  4.5

    4.5  1.5



    中国サプライヤー安い側壁コンベアベルト仕入れ・メーカー・工場 中国サプライヤー安い側壁コンベアベルト仕入れ・メーカー・工場







      Welcome inquiry us.
