| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | krdバルク | モデル番号: | sc 1000 | タイプ: | ねじコンベヤー | 構造: | ローラーコンベヤー | 材料: | ステンレス | 条件: | 新しい | 認証: | IS2000: 9001 | 物質的な特徴: | 耐熱 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 積載容量: | 1-191 | スピード: | 1.3-1.6 |
包装
| 包装: | 木製梱包 |

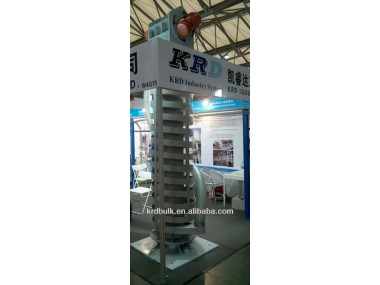

Features of Screw lift elevator:
Simple structure, small sectional area, good seal, reliability, low costs,.
Conveying directions can be changed in the conveyor.
Can blend, cool and heat product while conveying.
Use an additional valve to control the flow.
Disadvantages: not suitable for sticky, lumpy and perishable product.
product destruction.
Parameters:
1: Power Supply: 3 Phase 208-415V 50-60Hz
2: Charging angle: Standard 45 degree, 30~60 degree are also available.
3: Lifting Height: Standard 1.85 meters,1 – 5 M could be designed and manufactured
4:Food grade screw, Mixer and power box are optional.
Models:
straight and flexible
Straight screw is used for short distance.
Flexible screw can be freely arranged to meet conveying requirements.
Specifications
1: With vibrating and feeding motor.
2: Lifting height can be custom-made.
3: Many charging capacity available.
Model | GS-4S2 | GS-4S3 | GS-4S5 | GS-4S7 | GS-4S8 | GS-4S12 |
Charging Capacity | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 12 m3/h |
Diameter of pipe | φ102 | φ114 | φ141 | φ159 | Φ168 | Φ219 |
Total power | 0.61KW | 0.81W | 1.56KW | 2.26KW | 3.06KW | 4.06KW |
Total Weight | 100kg | 130kg | 170kg | 200kg | 220kg | 270kg |
Hopper Volume | 100L | 200L | 200L | 200L | 200L |
A glance at our stainless steel and carbon steel screw conveyors:
