| 原産地: | 中国(本土) | 銘柄: | 3願っ | タイプ: | スラットのコンベヤー | 構造: | ローラーコンベヤー | 材料: | ステンレス | 条件: | 新しい | 物質的な特徴: | 耐熱 | 積載容量: | 1-5トン |
包装
| 包装: | 標準輸出pacaging |

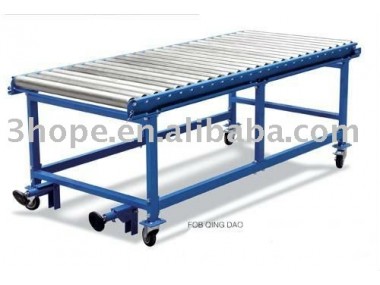

roller conveyor
1.Specification
Roller conveyor can be classified two types: no-power driven and power driven. It can convey member goods along horizontal or curve path with following feature such as large conveying capacity, smooth operation, low noise, easy erection and cheap fabrication cost, etc. It is wide application in continues production lines and storage logistics system.
2.Technical Data
Roller conveyor specification
Roller Dia.mm | 50 | 60 | 76 | 89 | 108 | |
speed(m/s) | 0.1-0.32 | 0.1-0.32 | 0.1-0.32 | 0.1-0.32 | 0.1-0.32 | |
Single roller max. loading(KN) | ||||||
Roller L(m) | 320 | 0.85 | 2.1 | 3.6 | 4.1 | 8.8 |
500 | 0.55 | 1.3 | 2.3 | 4.1 | 8.8 | |
800 | 0.35 | 0.75 | 1.3 | 3.4 | 6.4 | |
1000 | 0.3 | 0.7 | 1.0 | 2.9 | 5.0 | |
1400 | 0.2 | 0.5 | 0.8 | 1.7 | 3.4 | |
3.Price: According to customer's needs.
4.Payment term: By T/T or L/C
5.Delivery Time: 30days
6.Shipping port: Shanghai/Ningbo
7.Package Deatials
(1)Inflated Plastic Film
(2)Steel frame
(3)Wooden Crate
(4)at Buyer's option
8.Customer's Notice
We design and manufacture goods according to customer's specific requirments.Therefore,pls send your specifc data with your inquiy.We are assured that all your specific inquiry will receive our immediate attention.
