| 原産地: | 中国(本土) | 電圧: | 220ボルト、380ボルト、415ボルト | 銘柄: | shanyuan | モデル番号: | b = 400、b = 500、b = 650、b = 800、b = 1000 | 力(W): | に基づいてモデル | タイプ: | ねじコンベヤー | 材料: | ゴム | 構造: | ベルト・コンベヤー | 認証: | iso/ce | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 積載容量: | 40-1284/h | 条件: | 新しい | 物質的な特徴: | 耐熱 | 次元(L*W*H): | に基づいてモデル | 認証: | iso9001: 2000 |
包装
| 包装: | 輸出標準 |

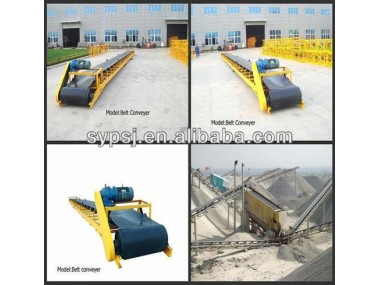

Conveyor belt for sand,conveyer belt stone crusher
plant,conveyor belt used in mining
1.Performance Characteristics of conveyor
The belt conveyor of our company ,as the necessary equipment for the materials transportation has the
advantages of large conveyor capacity,simple structure,easy maintenance,standardized components.It is
widely used to transport all kinds of ores,rocks,coal and other kinds of loose or massive materials or
complete material delivering works .It is widely used for the transportation works in mine,building materials,
metallurgy,coal,electricity,dock fields ect.
2.Application of conveyor
According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments.The belt conveyor can be operated in the tempreture
situation ranging from 20C ~ +40C.the tempreture of transferred material by this belt conveyor should be lower
than50°C.
3.Specifications of conveyor
Belt Width(mm) | Belt Length(m) / Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
B=400 | ≤12/1.5 | 12-20/2.2-3 | 20-25/3-5.5 | 0.8-2 | 40-80 |
B=500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 0.8-2 | 80-190 |
B=650 | ≤12/4 | 12-20/5.5-7.5 | 20-30/7.5-11 | 0.8-2 | 130-330 |
B=800 | ≤6/4 | 6-15/5.5-7.5 | 15-30/7.5-15 | 1.3-2 | 280-500 |
B=1000 | ≤10/5.5 | 10-20/7.5-11 | 20-30/11-18.5 | 1.3-2 | 430-850 |
B=1200 | ≤10/7.5 | 10-20/11-15 | 20-30/15-22 | 1.3-2 | 650-1200 |
Remarks:
1.The capacity above is relative to crushed stones with loose density 1.6t/m3.
2.The maximum. conveyor’s installing inclined angle is 18°.The transporting capacity above is made by the standards of 0°.
3.The company can also design and make as per the buyer’s requirements.
Component parts
♣ Frequently Asked Questions:
When you are interested in Shandong Chengming Crusher, please Check "QA" to save time
Q: What about Warranty? What will we do if the machine is broken down?
A: Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice.
Q: What information should we offer for you if we want to get best engineering proposal and quotation?
A: If you want us recommend a suitable engineering proposal for you, please let us know the following information,
1). You only need one Hammer Crusher or the whole crushing line? (Include feeder, crusher, screen, belt conveyor and so on).
2). What is the stone type? Marble, granite, basalt, gravel or others?
3). What is the capacity you need? Tons per hour
4). What is the Max Input Size? mm/inch
5). What is the Out Put Size you need ? 0-5-10-15mm or other size?6). What is the use of the final products?
Q: What could you help me to do for the business?A: Thank you for your trust, we can provide you with preservices of design scheme for complete production lines, spot inspection and
operator training according to your demands and the conditions and of applied spot, we can help you choose the matching equipments,
drilling rig, loader, trucks,excavators and so on.
When you check all, please contact us by e-mail or call us, we will make the business simple for you.
