原産地: | 中国(本土) | 銘柄: | sgy | モデル番号: | qx |
提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | あなたの要件として | 証明書: | gost | マックス。リフティング負荷: | 600-2500 t | 定格積載量: | 16,32、55 t | 素材比重(t/h):: | 0.9〜3.0 | マックス。フロントアウトリーチ(m): | 20〜55 | 保証: | 12ヶ月 |
包装
包装: | パッキングのグラブバケット船アンローダ: 1。電気部品はによって詰め高品質合板クレート、を低減する歪みで搬送; 2。メインビーム、エンドビームと電気ホイストはによって詰めプラスチック織布。それを減らすことができ摩耗とき輸送。配信のグラブバケット船アンローダ: 1. ifをサイズに適していますコンテナ船、通常によって容器; 2.Bigサイズ、通常によるバルク船またはコンテナによって後に切り捨て。3。輸送方法に基づいている削減コストのためあなたとを保つクレーン良い。 |

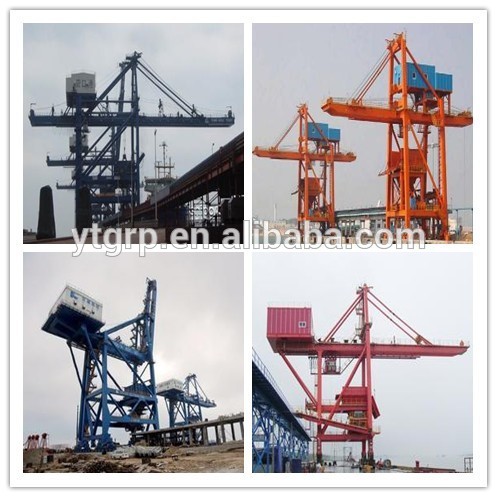

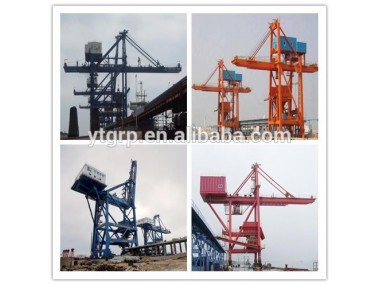

Ship Unloader Crane
Product Description
Ship unloader is a special heavy duty equipment with satisfactory productivity and is widely applied at docks to unload bulk cargo ship of different sizes. Grab bucket ship unloader structure is mainly composed of steel structure, grab bucket lift and open and closing mechanism, trolley traverse mechanism, luffing mechanism, travel mechanism, machine cabin, elevator, grab bucket, spray system, electrical system, necessary safety related compo
nents and accessory devices. PLC and CMMS faultmo
nitor systemcould be adopted in this type of product. And electro
nic antisway system could be provided at customer request. Referenced criterion and standards are as follows: GB3811-2008 crane design criterion, GB6067-85lifting equipments safety regulation, ISO, FEM and JIS.TechnologyModular designAccording to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module,steel structure module, founction module, general module and etc. The standard module production ensures product stability of quality and shortens the delivery cycle. Advanced Manufacturing TechnologySteel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. WEIHUA pio
neers the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultraso
nic testing to ensure the welding quality.High ReliabilityThe motor and ruducer are im
ported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.The main electrical compo
nents is from the selection of Schneider, Siemens, ABB and other internatio
nal well-known brands, the protection degree electro
nic co
ntrol box is less than IP54.Applicatio
nIndustry of machinery, me
tallurgy, electric power, chemical, military, railroad, water conservancy,Shipbuilding, port and large scale storehouse. Parameter
Rated productivity (t/h) | 600~2500 |
Capacity (t) | 16,32,55 |
Hoisting Speed (m) | Above 18~24 / Below12~33 |
Material specific gravity (t/m³) | 0.9~3.0 |
Max. front outreach (m) | 20~55 |
Rail gauge (m) | 17,30 |
Wheel base(m) | 12,17 |
Hosting/opening/closing speed(m/min) | 100~150 |
Cross Travel speed (m/min) | 120~250 |
Luffing time (min) | 5 |
Long Travel speed (m/min) | 20 |
Max.wheel load(kN) | 200 |
Power | 10kv,50Hz,3ph |
