| 原産地: | 中国(本土) | 条件: | 新しい | 銘柄: | jtcco | モデル番号: | 組み合わせ | 素材: | pp、ppr、pvc、pvdf、pps | スプレーパターン: | スパイラル | ねじサイズ: | 1/8 "/1/4 "/3/8 " | パイプサイズ: | 1 "、1-1/4 "、1-1/2 "、2 " |
包装
| 包装: | カートン |
detailed spec:

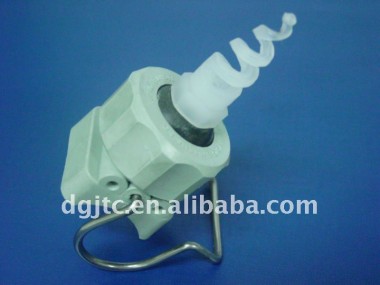

1.part: nozzle bady( three holes), clamp( single, doube), thread cap,internal thread ball( with 1/8",1/4",3/8",1/2")
and a male thread spiral full cone nozzle
2. easy fix on pipe or tube
3. spray diraction is adjsutable
4. spray tip is easy replace
5. clamp material : SS201,SS303,SS304
6.size of clamp 1/2",3/4",1,1-1/4", 1-1/2",2
7.external diameter of pipe or tube: 20-22, 25-28,32-35,38-43,44-51mm
8. dimeter of water outlet : D14, D16,D20
9.appication: pretreatment for planting, wash and clean in coating pretreatment, pre-rinse in electophoresis pretreatment, chemial sprayer and fruit cleaning.
10.sample is available

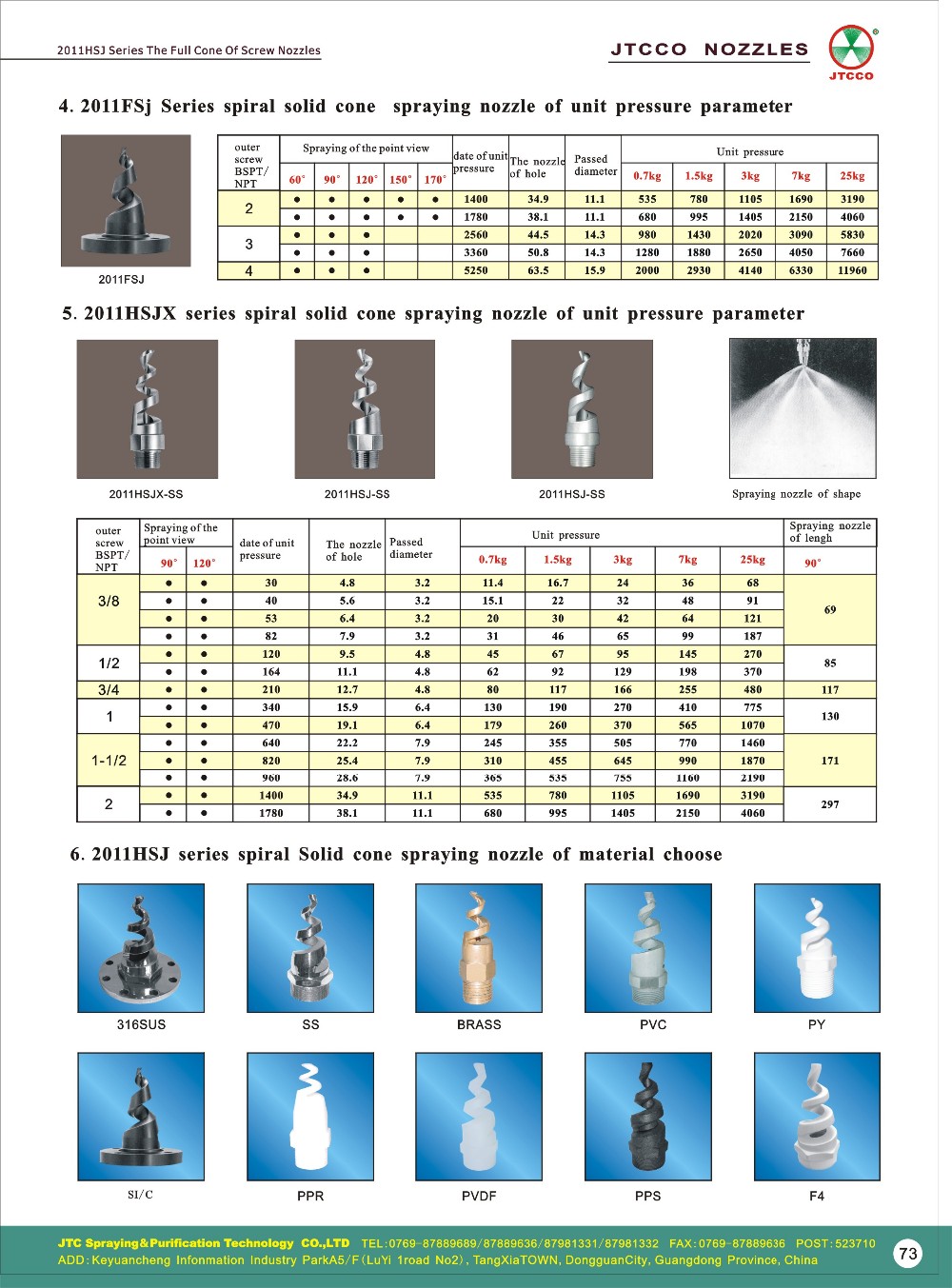

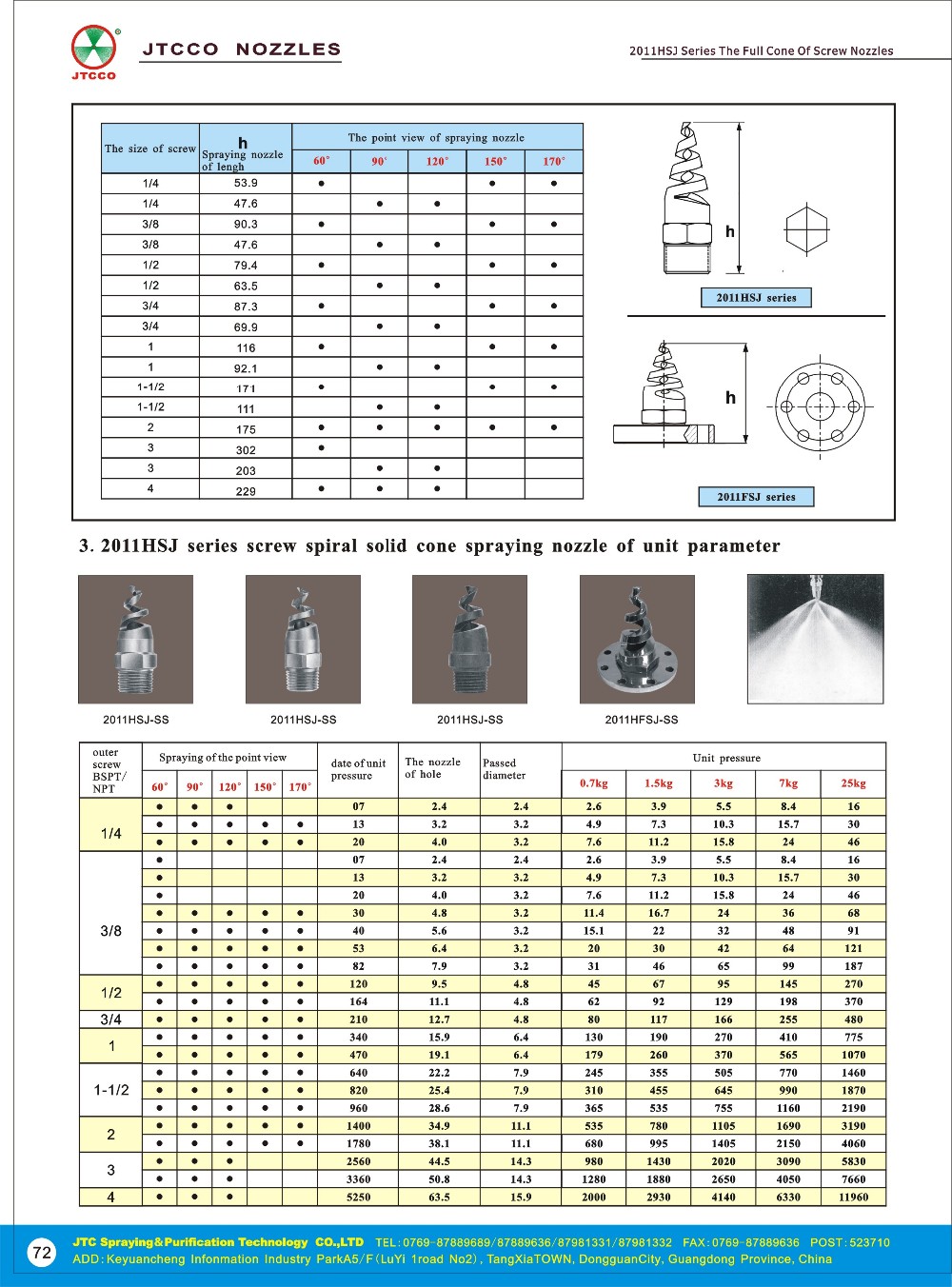

the performance data should refer to the spray tip you choose :
