| 原産地: | 中国(本土) | 銘柄: | zhisheng | モデル番号: | ZS-FL-1540 | クリーニングのタイプ: | Hepaフィルター | クリーニングプロセス: | ガラス繊維 | 特徴: | 高い風速 | 機械タイプ: | 高圧洗剤 | 材料: | 金属/コイル | 使用される企業: | エレクトロニクス産業 | 燃料: | 電気 | 認証: | ISO | 使用: | 吹く塵 | ノズル: | 12pcs | 適した: | 1人 |
包装
| 包装: | カートン、木の場合 |

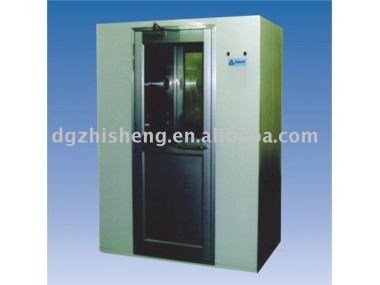

Air shower clean equipment is a neccssary passage for either people or goods to enter into the clean room, and isolates the clean room from the outside. Dust particles can be effective and rapidly removed after the people or goods being blown over by high efficiently filtrated clean air.
We can assembly air showers or passags in various lengths as per the number of people that may enter into the clean room.
The materials: The case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside, and all stainless steel.
Model | Air shower | Cargo Air shower | ||||
ZS-FL-1300 | ZS-FL-1540A | ZS-FL-1540 | ZS-FL-1540-1D | ZS-FL-2000 (2D) | ZS-FL-2300- (5D) | |
External dimensions(mm) | 1150800x 2050 | 14001000x 2050 | 14001200x2050 | 14001600x2050 | 18002000x2050 | 21005000x2050 |
Dimension for workable area(mm) | 800750x 1920 | 800950x1920 | 8001150x1920 | 8001550x1920 | 12001950x1920 | 15004950x1920 |
Suitable person | 1 person with one side blowing | 1 person with two sides blowing | 1-2 person with two sides blowing | 2-3 person with two sides blowing | Cart | |
Nozzles | 6(one side) | 12(two sides) | 16(two sides) | 18(two sides) | 24(two sides) | 60(two sides) |
Blow power(W) | 550 | 1100 | 1500 | 2000 | 2200 | 7500 |
Weight (kg) | Appro.250 | Appro.400 | Appro.600 | Appro.900 | Appro.1200 | Appro.2800 |
HEPA filter’s size | 550610x1201 pcs | 610610x120 2 pcs | 915x6101202 2 pcs | 1220610x1202 2 pcs | 610610x120 4 pieces | 610610x120 10 pcs |
Nozzle diameter | 38mm | |||||
Air shower time | 0~99s Adjustable | |||||
Air velocity | 18~25m/s | |||||
voltage | 380V | |||||
Hepa Filter efficiency | ≥99.99% | |||||
