| 原産地: | 中国(本土) | 銘柄: | Kingsun | モデル番号: | VC-S-5 | クリーニングのタイプ: | 浄化 | クリーニングプロセス: | ガラス繊維 | 特徴: | 高性能 | 機械タイプ: | 清浄作業台 | 材料: | プラスチックおよびステンレス鋼 | 使用される企業: | 実験室 | 燃料: | 電気 | 認証: | ISOおよび米国の中央政府標準 | 使用: | 空気除去 | 証明書: | 米国の中央政府標準209E | クラス: | 100 | 特徴: | 長い操作生命および低雑音 | 利点: | 高品質およびよい価格 |
包装
| 包装: | あなたのrequestmentに従っておよび中カートンのパッキング、および特定の細部外合板のパッキング |

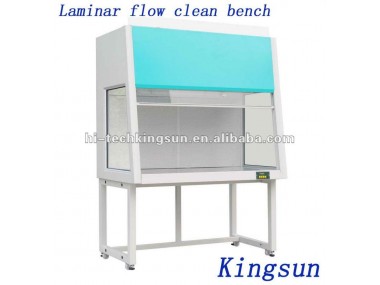

Detail product features
.Adopted the direct high efficiency centrifugal fan
.The operation life more than 30 thousands hours,low noise,fix free.soft vibration
.Stable performance,can keep the same air flow under the resistance of HEPA filter
.every piece can passed the UAS federal standard 209E,class 100
.Install the USA manometer,clear instructions on the 2 sides differential pressure of the HEPA filter
.Superior DC fan,energy saving and center controlled by computer and steady performance.
.Low operation cost
.ULPA HEPA filter
.Fireproofing table/stainless steel table
Technical parameter
| Specification | VC-S-1040 | VC-S-1340 | VC-S-1640 | VC-S-1950 | |
| Outer size (L*W*H mm) | 1040*740*2050 | 1340*740*2050 | 1640*740*2050 | 1870*740*2050 | |
| Workspace (L*W*H mm) | 960*650*800 | 1260*650*800 | 1560*650*800 | 1560*650*800 | |
| Production/ Inspection standard | USA federal standard 209E | ||||
| Air flow(m³/h) | 990 | 1300 | 1600 | 1900 | |
| Velocity(m/s) | 0.45±20% | ||||
| Purification level | class 100 | ||||
| Efficiency | 99.95% | ||||
| Clean bench shake half-peak value | Clean bench sepatated with whole frame,no shake | ||||
| Shell material | Cold rolled stainless steel plate painting with spraying plastic | ||||
| Clean bench material | Surface:sanding stainless steel Back:MDF+fire-proof plate | ||||
| Noise(Db) | <58 | <58 | <60 | <62 | |
| Position of testing noise | 20 meters in front of the clean bench,1.2 meters from the floor | ||||
| Power | 220v,50Hz | ||||
| Rated power(kw) | 0.155 | 0.175 | 0.29 | 0.31 | |
| Applicable operator | 1 | 1--2 | 2--3 | 3--4 | |
| Weight(kg) | ˜250 | ˜300 | ˜500 | ˜800 | |
Application
laboratory, Biopharmaceutical,opto-electronics,moicro-electronics,caliche area.
